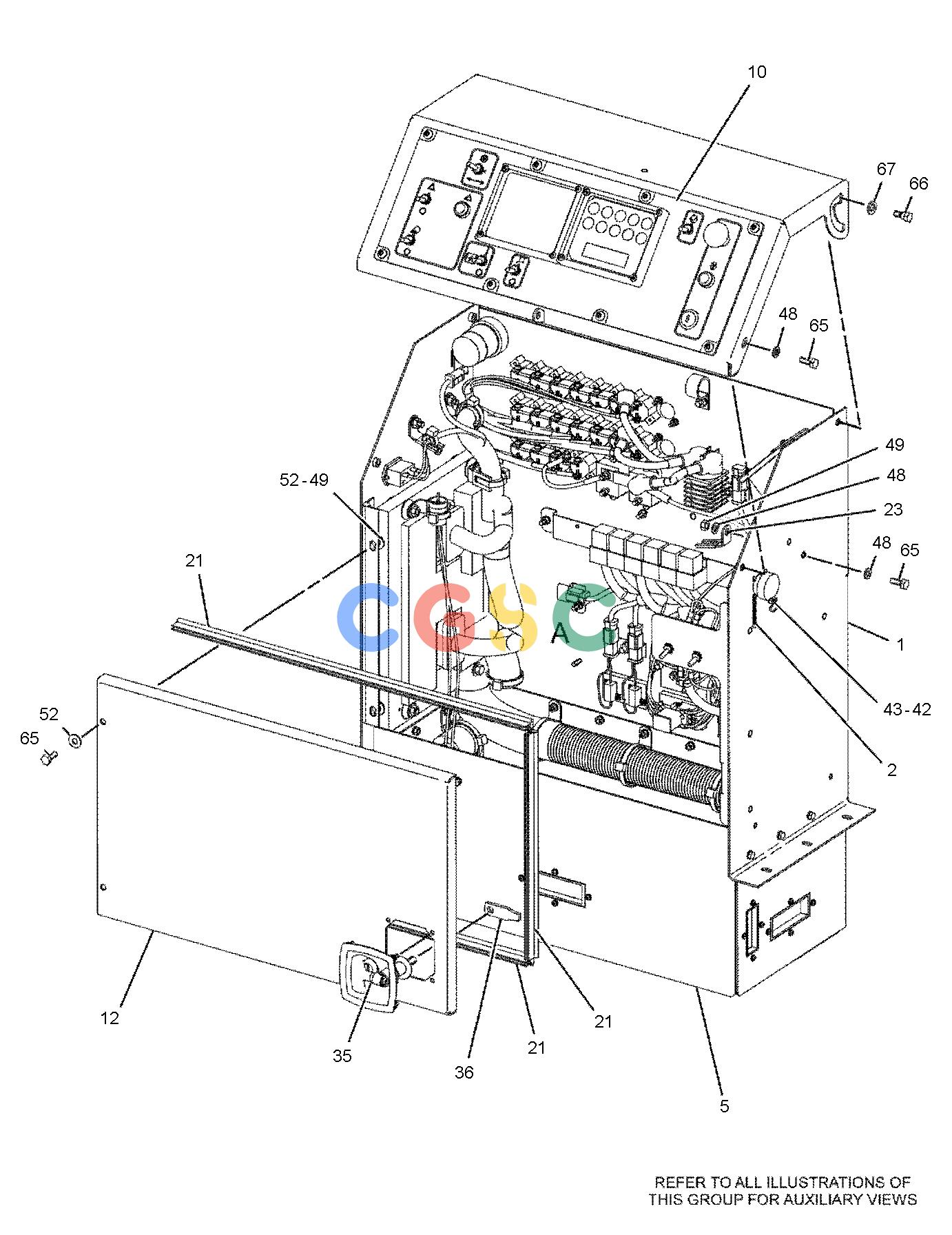

| 1. | 235-3510 | [1] | BOX AS(CONSOLE) | |
| 2. | 1G-9089 | [1] | CHAIN | |
| 3. | 167-0138Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(MAIN RELAY) | |
| 4. | 189-0077Y | [1] | CONTROL GP-UNPROGRAMMED | |
| 5. | 236-2632 | [1] | BOX AS | |
| 6. | 118-3534Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(STARTER RELAY) | |
| 7. | 8T-5570 | [1] | SOCKET | |
| 8. | 196-9895 | [1] | TIMER AS | |
| 9. | 203-5954 | [1] | BAR-BUS | |
| 10. | 235-3511Y | [1] | PANEL GP-INSTRUMENT(CENTER CONSOLE) | |
| 11. | 236-0872 | [15] | STRAP AS | |
| 12. | 235-3516 | [1] | DOOR | |
| 13. | 235-3517 | [1] | PLATE | |
| 14. | 214-2465 | [1] | KIT-SERVICE METER(24-VOLT) | |
| 15. | 6T-1767 | [1] | SWITCH GP-TOGGLE(MODE SELECT) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 16. | 9G-0011 | [1] | SWITCH AS-TOGGLE(MODE SELECT) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 17. | 235-3519 | [1] | HARNESS AS-PANEL(CENTER CONSOLE) | |
| 18. | 236-4499 | [1] | WIRE AS | |
| 19. | 4P-7429 | [3] | CLIP(LADDER)(LADDER) | |
| 20. | 7K-1181 | [13] | STRAP-CABLE | |
| 21. | 5P-8309BD | | SEAL | |
| 22. | 4P-7581 | [5] | CLIP(LADDER)(LADDER) | |
| 23. | 4P-8134 | [5] | CLIP(LADDER)(LADDER) | |
| 24. | 236-4498 | [3] | CABLE AS | |
| 25. | 6V-9671M | [6] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 26. | 3E-6328Y | [1] | ALARM GP(24-VOLT) | |
| 27. | 8T-8799 | [5] | BOOT(RED) | |
| 28. | 116-0118 | [6] | CLIP(SLOT) | |
| 29. | 236-0873 | [1] | BRACKET AS | |
| 30. | 231-1389 | [2] | RESISTOR AS | |
| 31. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(MAIN) | |
| 32. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(ALTERNATOR) | |
| | | | (EACH CIRCUIT BREAKER GP INCLUDES) |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 33. | 6V-1889 | [1] | CLIP(LOOP)(SLOT) | |
| 34. | 235-3518 | [1] | PLATE | |
| 35. | 177-1570 | [1] | LATCH AS | |
| | 217-0733T | [1] | LOCK AS | |
| 36. | 222-5151 | [1] | PAWL | |
| 37. | 096-6166 | [46] | WASHER-HARD(4.5X9X1-MM THK) | |
| 38. | 6V-9672M | [23] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 39. | 5C-8312M | [23] | NUT(M4X0.7-THD) | |
| 40. | 7V-9275 | [1] | STRAP | |
| 41. | 9B-1117 | [6] | LOCKWASHER | |
| 42. | 1G-9090 | [1] | S-HOOK | |
| 43. | 8C-6354 | [1] | CAP-RECEPTACLE(ET CONNECTOR) | |
| 44. | 199-6600 | [1] | PLUG AS | |
| 45. | 9X-8256 | [51] | WASHER(6.6X12X2-MM THK) | |
| 46. | 5C-9553M | [16] | BOLT(M6X1X16-MM) | |
| 47. | 5C-2890M | [28] | NUT(M6X1-THD) | |
| 48. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 49. | 5C-7261M | [15] | NUT(M8X1.25-THD) | |
| 50. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 51. | 8T-9658 | [4] | SPACER(8.2X12.7X25.4-MM THK) | |
| 52. | 5P-4116 | [11] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 53. | 7X-2619M | [7] | BOLT(M6X1X10-MM) | |
| 54. | 4B-4863 | [82] | WASHER(4.7X11X1.2-MM THK) | |
| 55. | 7S-1197 | [2] | SCREW-MACHINE(8-32X0.5-IN) | |
| 56. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 57. | 4I-3038 | [10] | WASHER(3.3X8X0.5-MM THK) | |
| 58. | 6V-2480 | [6] | SCREW(4-40X0.5-IN) | |
| 59. | 9X-8486 | [40] | SCREW-MACHINE(8-32X0.75-IN) | |
| 60. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 61. | 6V-7978 | [4] | SCREW-MACHINE(10-32X0.375-IN) | |
| 62. | 2V-3726 | [2] | BUMPER | |
| 63. | 6D-5801 | [4] | LOCKNUT(8-32-THD) | |
| 64. | 6B-4540 | [6] | NUT(4-40-THD) | |
| 65. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 66. | 192-1329 | [2] | BOLT-SPECIAL | |
| 67. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 68. | 6D-3031 | [36] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 69. | 105-4684 | [1] | RELAY AS(24-VOLT)(GRADE, SLOPE) | |
| 70. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(EXTENDER, LH) | |
| 71. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(EXTENDER, RH) | |
| 72. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(GLOW PLUG) | |
| 73. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(VIBRATORY) | |
| 74. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(PROPEL) | |
| 75. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(EMS) | |
| 76. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(AUTOMATIC BURNER) | |
| 77. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(STARTING, SHUTDOWN) | |
| 78. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(IMPLEMENT) | |
| 80. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(GRADE) | |
| 81. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(SENSOR) | |
| 82. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(HORN) | |
| 83. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(FUEL PUMP) | |
| 84. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(GENERATOR SET) | |
| | | | (EACH CIRCUIT BREAKER GP INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 85. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 1) | |
| 86. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 2) | |
| 87. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 3) | |
| 88. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 4) | |
| 89. | 3E-6477 | [1] | RELAY AS(24-VOLT)(VIBRATORY, SELECT ON/OFF) | |
| 90. | 3E-6477 | [1] | RELAY AS(24-VOLT)(GRADE, SLOPE) | |
| 91. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(SCREED POWER) | |
| 92. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(ENGINE CONTROL) | |
| 93. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(MACHINE CONTROL) | |
| 94. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(WORKING LIGHTS) | |
| | | | (EACH CIRCUIT BREAKER GP INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | T | | REQUIRES 5P8500 KEY |
| | Y | | SEPARATE ILLUSTRATION |
