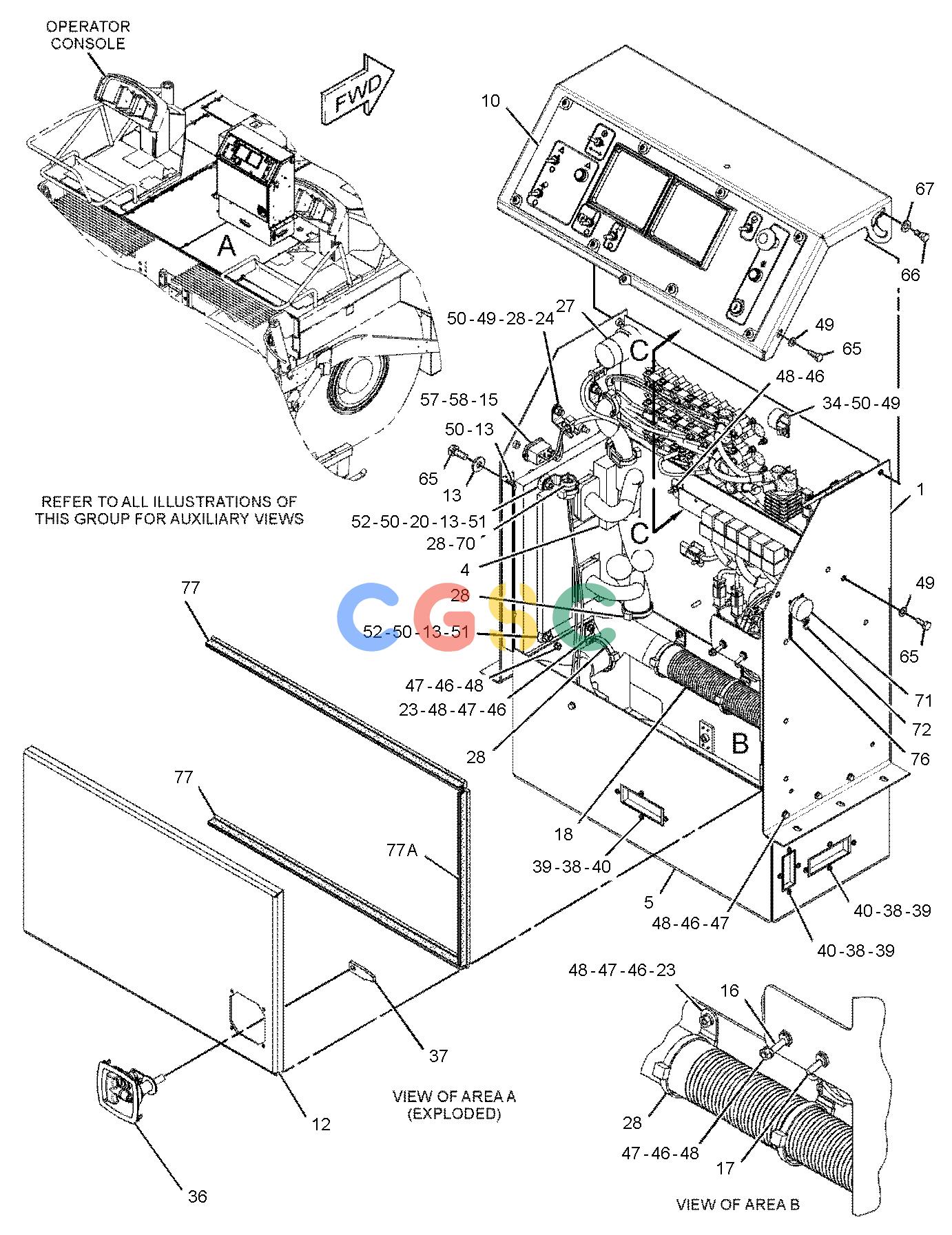

| 1. | 291-2146 | [1] | BOX AS | |
| 2. | 6T-3643 | [14] | CIRCUIT BREAKER AS(15-AMPERE) | |
| 3. | 6T-3644 | [4] | CIRCUIT BREAKER AS(20-AMPERE) | |
| | | | (EACH CIRCUIT BREAKER GP INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 4. | 189-0077Y | [1] | CONTROL GP-UNPROGRAMMED(INSTRUMENT) | |
| 5. | 236-2632 | [1] | BOX AS | |
| 6. | 118-3534Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(START RELAY) | |
| 7. | 8T-5570 | [1] | SOCKET | |
| 8. | 196-9895 | [1] | TIMER AS | |
| 9. | 203-5954 | [1] | BAR-BUS | |
| 10. | 235-3511Y | [1] | PANEL GP-INSTRUMENT(CENTER CONSOLE) | |
| 11. | 167-0138Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(MAIN RELAY) | |
| 12. | 291-2150 | [1] | DOOR AS-ACCESS | |
| 13. | 5P-4116 | [11] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 235-3517 | [1] | PLATE | |
| 15. | 301-7293 | [1] | KIT-SERVICE METER | |
| | | | (INCLUDES METER, FILM, BOLTS & LOCKNUTS) |
| 16. | 6T-1767 | [1] | SWITCH GP-TOGGLE(SERVICE MODE) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 17. | 9G-0011 | [1] | SWITCH AS-TOGGLE(INCREMENT, STORE) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 18. | 235-3519 | [1] | HARNESS AS-PANEL | |
| | 7T-6365 | [6] | HOUSING-RECEPTACLE | |
| | 8T-8729 | [302] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 160-7690 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2270 | [5] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [114] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-7148 | [2] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 103-0213 | [4] | RECEPTACLE AS-CONNECTOR(70-PIN) | |
| | 9W-1951 | [1] | RECEPTACLE-CONNECTOR(9-PIN) | |
| | 8T-8730 | [105] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 124-8821 | [3] | TERMINAL-BLADE(18-GA TO 22-GA) | |
| | 5P-5618 | [5] | TERMINAL-BLADE(10-GA TO 12-GA) | |
| | 5P-4571 | [3] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 7N-7978 | [4] | TERMINAL-FORK(10-GA TO 12-GA, NO. 6 SCREW) | |
| | 5P-2321 | [3] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 131-1488 | [7] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | | | (EACH INCLUDES) |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 131-1490 | [1] | TERMINAL AS(6-GA TO 8-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 2L-8065 | [14] | TERMINAL-RING(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 2L-8067 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/4-IN SCREW) | |
| | 2L-8075 | [5] | TERMINAL-RING(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 2L-8077 | [1] | TERMINAL-RING(14-GA TO 16-GA, 1/4-IN SCREW) | |
| | 7T-6364 | [28] | TERMINAL-BLADE(12-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(65-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(280-CM) | |
| 19. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 1) | |
| 19A. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 2) | |
| 19B. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 3) | |
| 19C. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 4) | |
| 19D. | 3E-6477 | [1] | RELAY AS(24-VOLT)(VIBRATORY) | |
| 19E. | 3E-6477 | [1] | RELAY AS(24-VOLT)(GRADE, SLOPE) | |
| 20. | 4P-7429 | [3] | CLIP(LADDER) | |
| 23. | 4P-7581 | [5] | CLIP(LADDER) | |
| 24. | 4P-8134 | [5] | CLIP(LADDER) | |
| 27. | 3E-6328Y | [1] | ALARM GP(24-VOLT) | |
| 28. | 7K-1181 | [13] | STRAP-CABLE | |
| 29. | 116-0118 | [6] | CLIP | |
| 30. | 236-0873 | [1] | BRACKET AS | |
| 31. | 231-1389 | [2] | RESISTOR AS | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-5623D | | WIRE-ELECTRICAL(16-GA, BLACK)(0.3-M) | |
| 32. | 171-2210 | [2] | CIRCUIT BREAKER AS(80-AMPERE) | |
| | | | (EACH INCLUDES) |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 33. | 236-0872 | [15] | STRAP AS | |
| | | | (EACH INCLUDES) |
| | 8T-5346 | | TUBE-HEAT SHRINK(19.1-MM DIA)(2-CM) | |
| 34. | 6V-1889 | [1] | CLIP(LOOP) | |
| 35. | 235-3518 | [1] | PLATE | |
| 36. | 177-1570 | [1] | LATCH AS | |
| | 272-6628L | [1] | LOCK AS-CYLINDER | |
| | 272-6629 | [1] | CAM | |
| 37. | 222-5151 | [1] | PAWL | |
| 38. | 096-6166 | [46] | WASHER-HARD(4.5X9X1-MM THK) | |
| 39. | 6V-9672M | [23] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 40. | 5C-8312M | [23] | NUT(M4X0.7-THD) | |
| 41. | 7V-9275 | [1] | STRAP | |
| 42. | 236-4498 | [1] | CABLE AS | |
| | | | (WIRE ROUTES FROM LH STUD ON RELAY TO MIDDLE ROW OF CIRCUIT BREAKERS) |
| 42A. | 236-4498 | [1] | CABLE AS | |
| | | | (WIRE ROUTES FROM LH STUD ON RELAY TO TOP ROW OF CIRCUIT BREAKERS) |
| 42B. | 236-4498 | [1] | CABLE AS | |
| | | | (WIRE ROUTES FROM RH STUD ON RELAY TO BOTTOM ROW OF CIRCUIT BREAKERS) |
| | | | (EACH CABLE AS INCLUDES) |
| | 6V-2369D | | CABLE(4-GA, BLACK)(0.2-M) | |
| | 9G-4343 | [1] | TERMINAL-RING(4-GA, 1/4-IN SCREW) | |
| | 5P-3454 | [1] | TERMINAL-RING(4-GA, 5/16-IN SCREW) | |
| 45. | 236-4499 | [1] | WIRE AS | |
| 46. | 9X-8256 | [51] | WASHER(6.6X12X2-MM THK) | |
| 47. | 5C-9553M | [16] | BOLT(M6X1X16-MM) | |
| 48. | 5C-2890M | [28] | NUT(M6X1-THD) | |
| 49. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 50. | 5C-7261M | [15] | NUT(M8X1.25-THD) | |
| 51. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 52. | 8T-9658 | [4] | SPACER(8.2X12.7X25.4-MM THK) | |
| 53. | 7X-2619M | [7] | BOLT(M6X1X10-MM) | |
| 54. | 4B-4863 | [82] | WASHER(4.7X11X1.2-MM THK) | |
| 55. | 7S-1197 | [2] | SCREW-MACHINE(8-32X0.5-IN) | |
| 56. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 57. | 4I-3038 | [10] | WASHER(3.3X8X0.5-MM THK) | |
| 58. | 6V-2480 | [6] | SCREW(4-40X0.5-IN) | |
| 59. | 9X-8486 | [40] | SCREW-MACHINE(8-32X0.75-IN) | |
| 60. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 61. | 6V-7978 | [4] | SCREW-MACHINE(10-32X0.375-IN) | |
| 62. | 2V-3726 | [2] | BUMPER | |
| 63. | 6D-5801 | [4] | LOCKNUT(8-32-THD) | |
| 64. | 6B-4540 | [6] | NUT(4-40-THD) | |
| 65. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 66. | 192-1329 | [2] | BOLT-SPECIAL | |
| 67. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 68. | 6D-3031 | [36] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 69. | 105-4684 | [1] | RELAY AS(24-VOLT)(GRADE, SLOPE) | |
| 70. | 199-6600 | [1] | PLUG AS | |
| 71. | 8C-6354 | [1] | CAP-RECEPTACLE(ET CONNECTOR) | |
| 72. | 1G-9090 | [1] | S-HOOK | |
| 73. | 9B-1117 | [6] | LOCKWASHER | |
| 74. | 6V-9671M | [6] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 75. | 8T-8799 | [5] | BOOT(RED) | |
| 76. | 1G-9089J | | CHAIN(1-DM) | |
| 77. | 5P-8309D | | SEAL(0.7-M EACH) | |
| 77A. | 5P-8309D | | SEAL(0.4-M) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | J | | ORDER BY THE DECIMETER |
| | L | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
