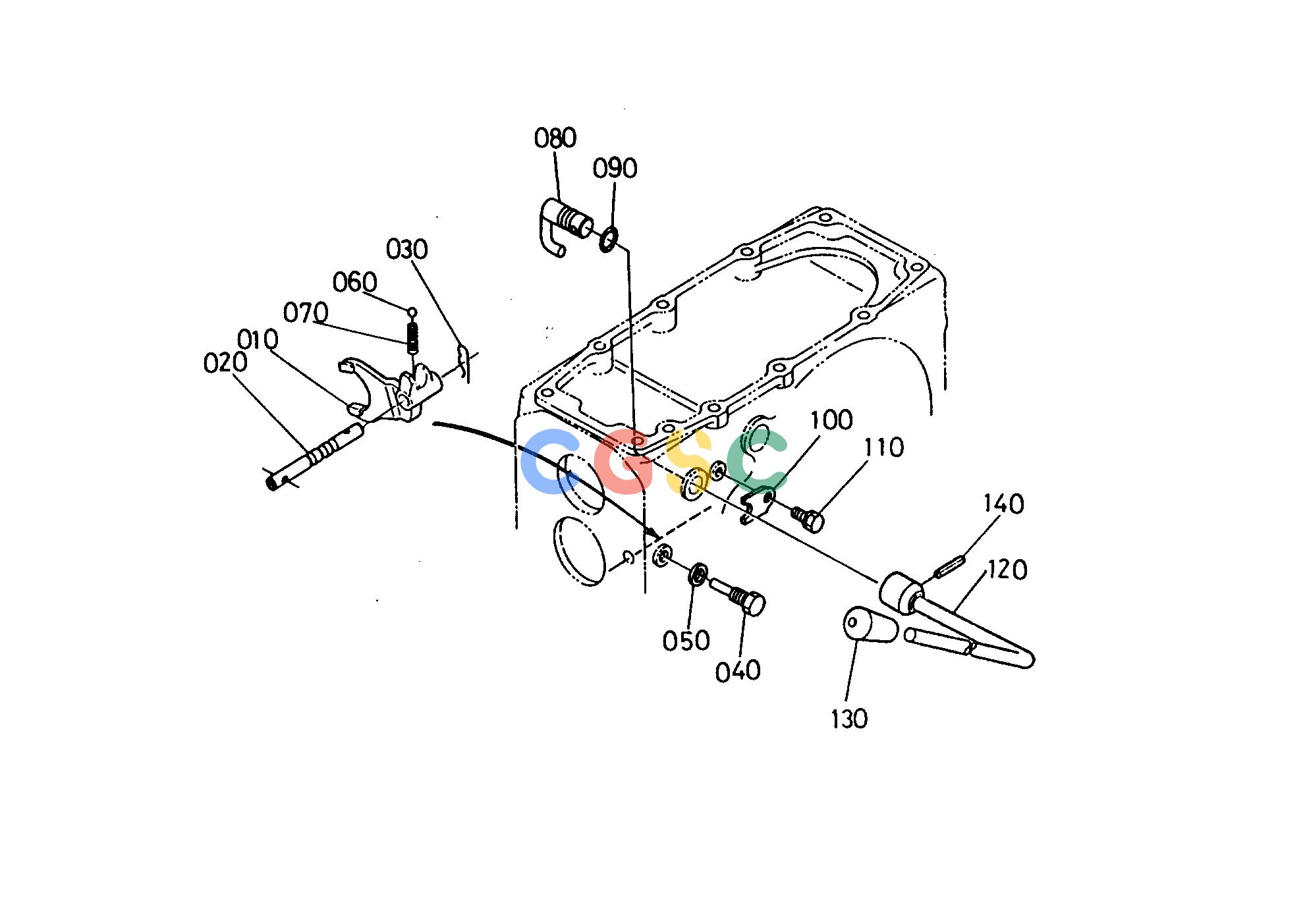

久保田零件查询T05200 HI-LO GEAR SHIFT LEVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3530024110
|
[1] |
FORK SHIFT
|
0.4400(lbs); 0.200
|
| 020. |
3715024130
|
[1] |
SHAFT FORK
|
0.2420(lbs); 0.110
|
| 030. |
0551551200
|
[1] |
PIN SNAP
|
0.0066(lbs); 0.003
|
| 040. |
3715023120
|
[1] |
SCREW SET
|
0.0440(lbs); 0.020
|
| 050. |
0471700800
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 060. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 070. |
6258118230
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 080. |
3730024310
|
[1] |
LEVER SHIFT
|
0.0000(lbs); 0.000
|
| 080. |
3715024310
|
[1] |
LEVER SHIFT
|
0.3190(lbs); 0.145
|
| 090. |
0481100150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
3415024350
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 110. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 120. |
3530024430
|
[1] |
LEVER HI-LO SHIFT
|
0.9240(lbs); 0.420
|
| 130. |
3730024560
|
[1] |
GRIP LEVER
|
0.0440(lbs); 0.020
|
| 140. |
0541100628
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
