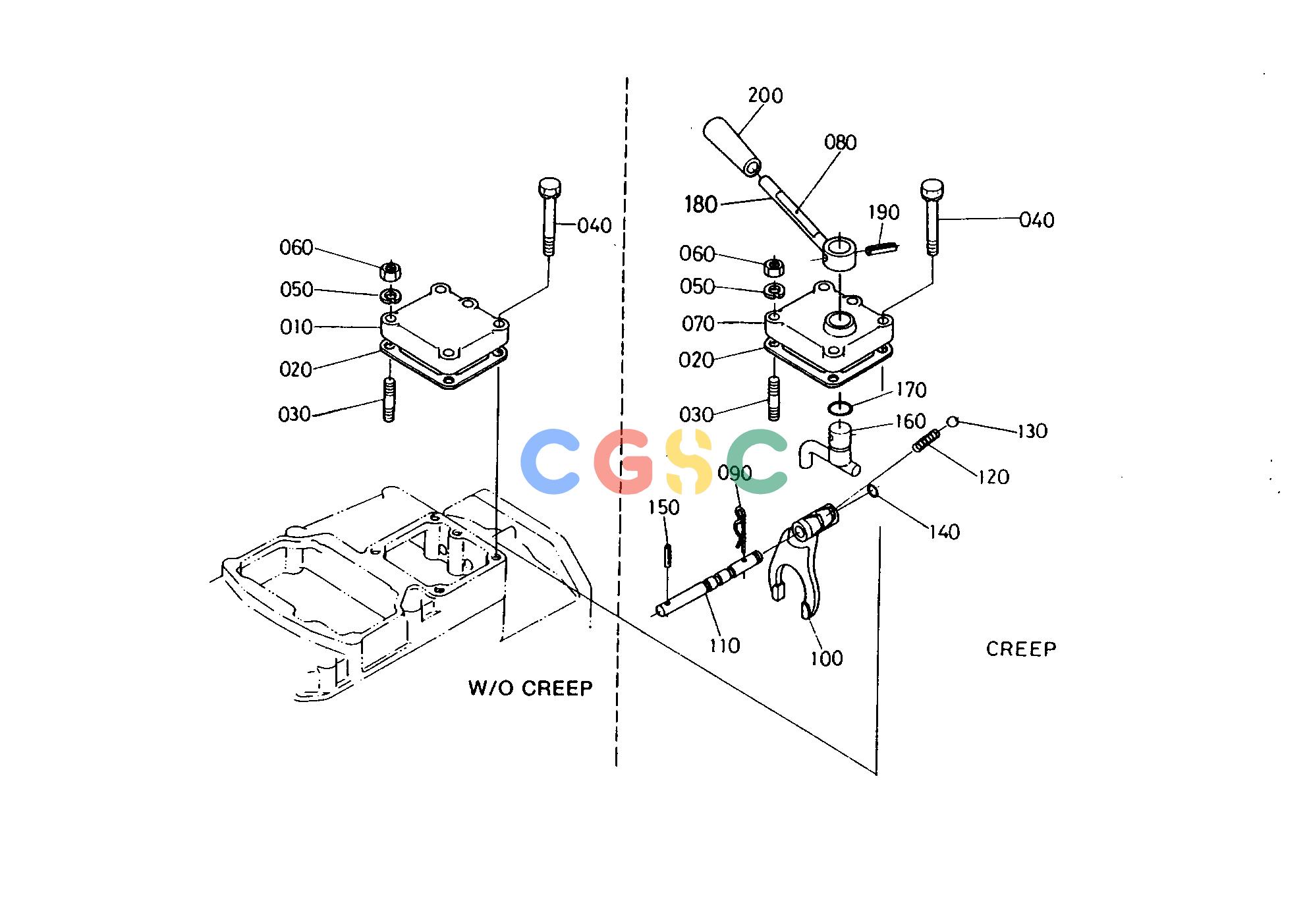

久保田零件查询T05300 CREEP GEAR SHIFT LEVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
308 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3511024830
|
[1] |
COVER
|
1.1792(lbs); 0.536
|
| 020. |
3465059330
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
0151350828
|
[3] |
STUD
|
0.0286(lbs); 0.013
|
| 040. |
0112350870
|
[2] |
BOLT
|
0.0638(lbs); 0.029
|
| 050. |
0451250080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
0215650080
|
[3] |
NUT
|
0.0088(lbs); 0.004
|
| 070. |
9971694112
|
[1] |
COVER
|
1.3200(lbs); 0.600
|
| 080. |
9958694130
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 090. |
0551551200
|
[1] |
PIN SNAP
|
0.0066(lbs); 0.003
|
| 100. |
3715024810
|
[1] |
FORK CREEP SHIFT
|
0.4290(lbs); 0.195
|
| 110. |
3715024820
|
[1] |
SHAFT FORK
|
0.2200(lbs); 0.100
|
| 120. |
6258118230
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 130. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 140. |
0481100090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
0541100430
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 160. |
3465059380
|
[1] |
LEVER SHIFT
|
0.2420(lbs); 0.110
|
| 170. |
0481100150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 180. |
3715024840
|
[1] |
LEVER SPEED CHANGE
|
0.2486(lbs); 0.113
|
| 190. |
0541100628
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 200. |
0691400100
|
[1] |
GRIP LEVER
|
0.0440(lbs); 0.020
|
