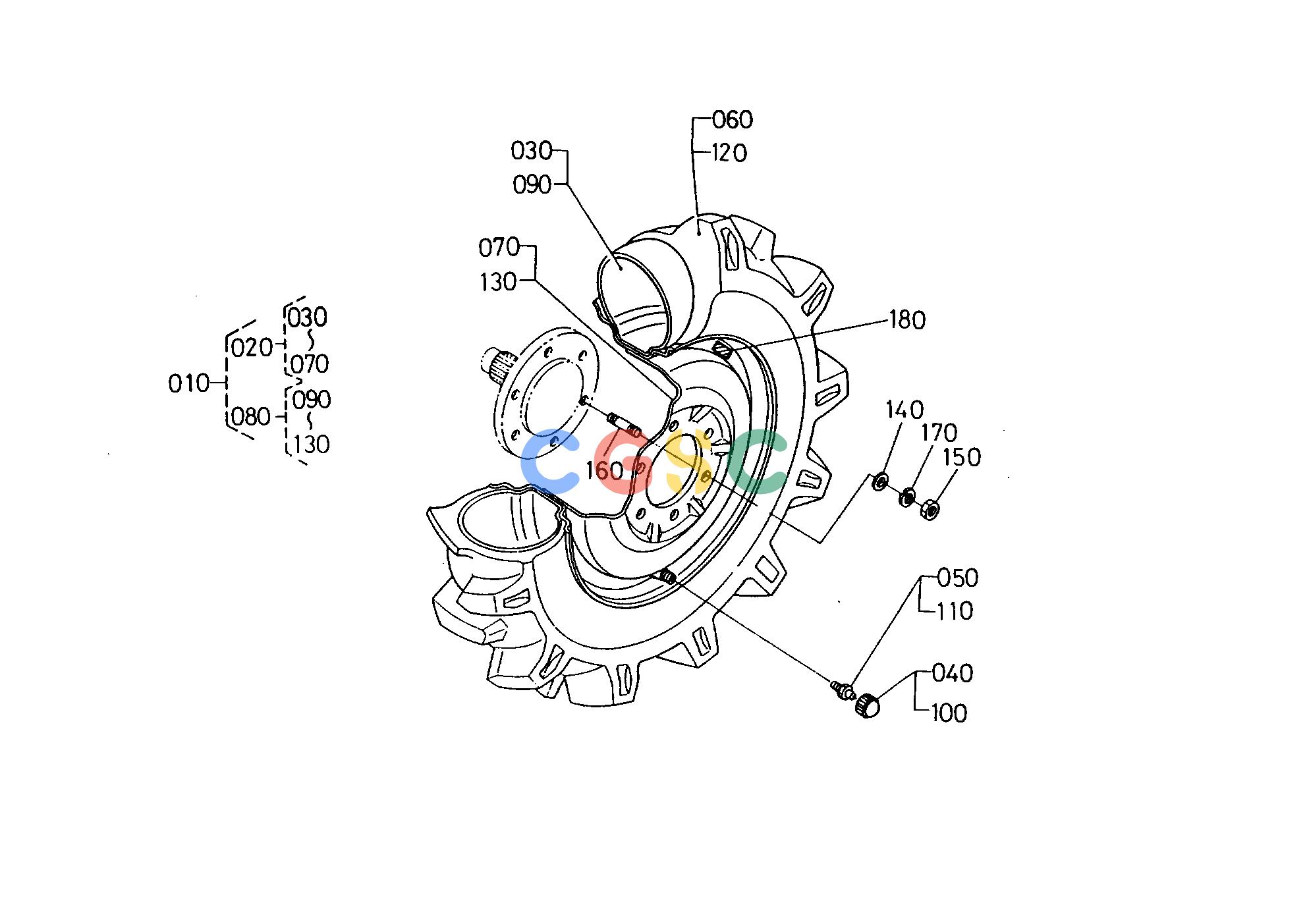

久保田零件查询T07600 FRONT WHEEL(7-16) FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
243 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3531043700
|
[1] |
ASSY FRONT WHEEL
|
110.0000(lbs); 50.00
|
| 020. |
3531043710
|
[1] |
ASSY FRONT WHEEL RH
|
52.8000(lbs); 24.000
|
| 030. |
3522043750
|
[1] |
TUBE
|
2.4860(lbs); 1.130
|
| 040. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 050. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3522043740
|
[1] |
TIRE
|
24.2000(lbs); 11.000
|
| 070. |
3531043730
|
[1] |
WHEEL
|
24.2000(lbs); 11.000
|
| 080. |
3531043720
|
[1] |
ASSY FRONT WHEEL LH
|
55.0000(lbs); 25.000
|
| 090. |
3522043750
|
[1] |
TUBE
|
2.4860(lbs); 1.130
|
| 100. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 110. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 120. |
3522043740
|
[1] |
TIRE
|
24.2000(lbs); 11.000
|
| 130. |
3531043730
|
[1] |
WHEEL
|
24.2000(lbs); 11.000
|
| 140. |
0401350120
|
[12] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 140. |
3518043790
|
[12] |
WASHER PLAIN
|
0.0286(lbs); 0.013
|
| 150. |
0217650120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
| 160. |
0157451225
|
[12] |
STUD
|
0.0748(lbs); 0.034
|
| 170. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 180. |
3530011700
|
[1] |
LABEL AIR PRESSURE
|
0.0022(lbs); 0.001
|
