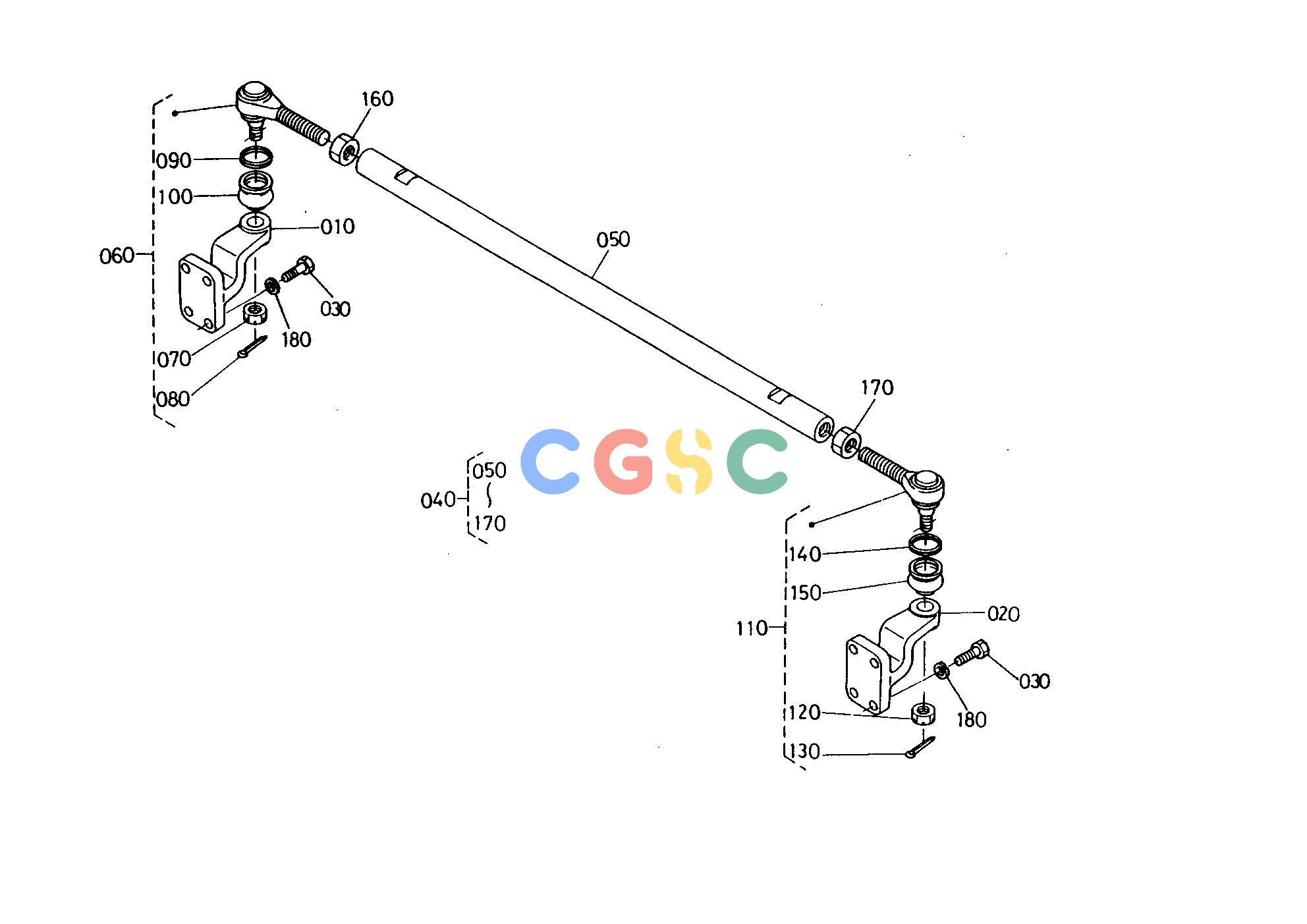

久保田零件查询T07800 TIE ROD FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3780043943
|
[1] |
ARM KNUCKLE RH
|
2.0240(lbs); 0.920
|
| 020. |
3780043953
|
[1] |
ARM KNUCKLE LH
|
2.0856(lbs); 0.948
|
| 030. |
0117351032
|
[8] |
BOLT
|
0.0528(lbs); 0.024
|
| 040. |
3780044040
|
[1] |
ASSY ROD TIE
|
0.0000(lbs); 0.000
|
| 040. |
3531044040
|
[1] |
ASSY ROD TIE
|
6.9080(lbs); 3.140
|
| 050. |
3780044000
|
[1] |
ROD TIE
|
4.8400(lbs); 2.200
|
| 050. |
3531044000
|
[1] |
ROD TIE
|
4.7300(lbs); 2.150
|
| 060. |
3620062930
|
[1] |
ASSY END TIE ROD
|
0.0000(lbs); 0.000
|
| 060. |
3863044780
|
[1] |
ASSY END TIE ROD RH
|
1.0340(lbs); 0.470
|
| 070. |
3325162750
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 070. |
3527012670
|
[1] |
NUT
|
0.0308(lbs); 0.014
|
| 070. |
3843012440
|
[1] |
NUT
|
0.0330(lbs); 0.015
|
| 080. |
0551150328
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 080. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 090. |
3527012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 090. |
3843012430
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 100. |
3527012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 100. |
3843012530
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 110. |
3780044010
|
[1] |
ASSY END TIE ROD LH
|
0.0000(lbs); 0.000
|
| 110. |
3863044790
|
[1] |
ASSY END TIE ROD LH
|
1.0340(lbs); 0.470
|
| 120. |
3325162750
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 120. |
3527012670
|
[1] |
NUT
|
0.0308(lbs); 0.014
|
| 120. |
3843012440
|
[1] |
NUT
|
0.0330(lbs); 0.015
|
| 130. |
0551150328
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 130. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 140. |
3843012430
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 150. |
3843012530
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 160. |
3325162920
|
[1] |
NUT
|
0.0484(lbs); 0.022
|
| 160. |
0217250200
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 170. |
3780044030
|
[1] |
NUT
|
0.0550(lbs); 0.025
|
| 170. |
3863044980
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 180. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
