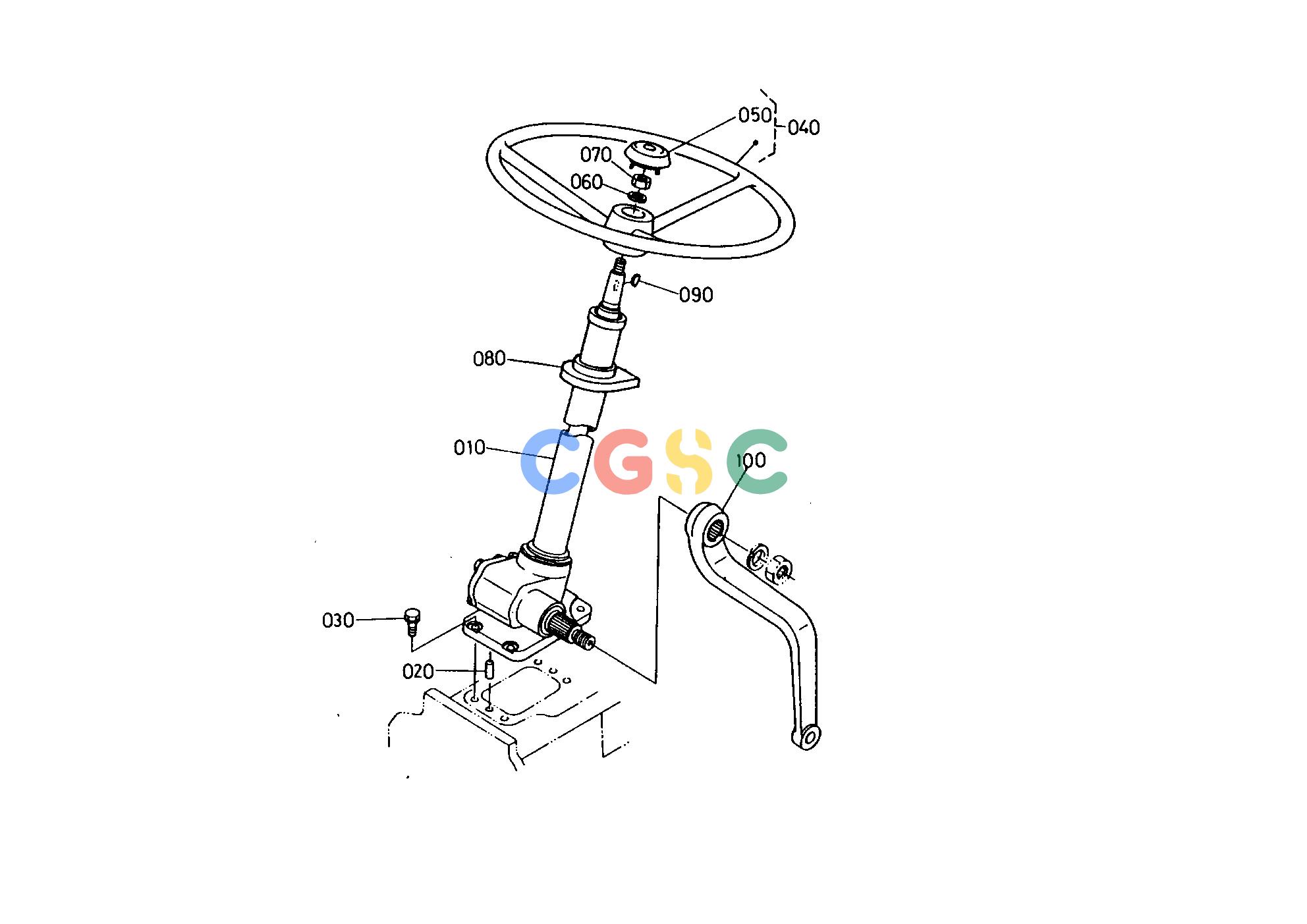

久保田零件查询T07900 MANUAL STEERING STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
881 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3730016100
|
[1] |
ASSY STEERING
|
0.0000(lbs); 0.000
|
| 010. |
3530516100
|
[1] |
ASSY STEERING
|
17.6000(lbs); 8.000
|
| 020. |
3715027370
|
[2] |
PIN STRAIGHT
|
0.0198(lbs); 0.009
|
| 030. |
0112351028
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 040. |
3715016800
|
[1] |
ASSY HANDLE STRG.
|
5.0600(lbs); 2.300
|
| 050. |
3715016820
|
[1] |
CAP HANDLE
|
0.0572(lbs); 0.026
|
| 050. |
H371016800
|
[1] |
CAP HANDLE
|
0.0572(lbs); 0.026
|
| 060. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 080. |
3730016850
|
[1] |
HOLDER POST
|
0.0550(lbs); 0.025
|
| 090. |
0581100519
|
[1] |
KEY WOODRUFF
|
0.0088(lbs); 0.004
|
| 100. |
3780043930
|
[1] |
ARM PITMAN
|
3.4980(lbs); 1.590
|
