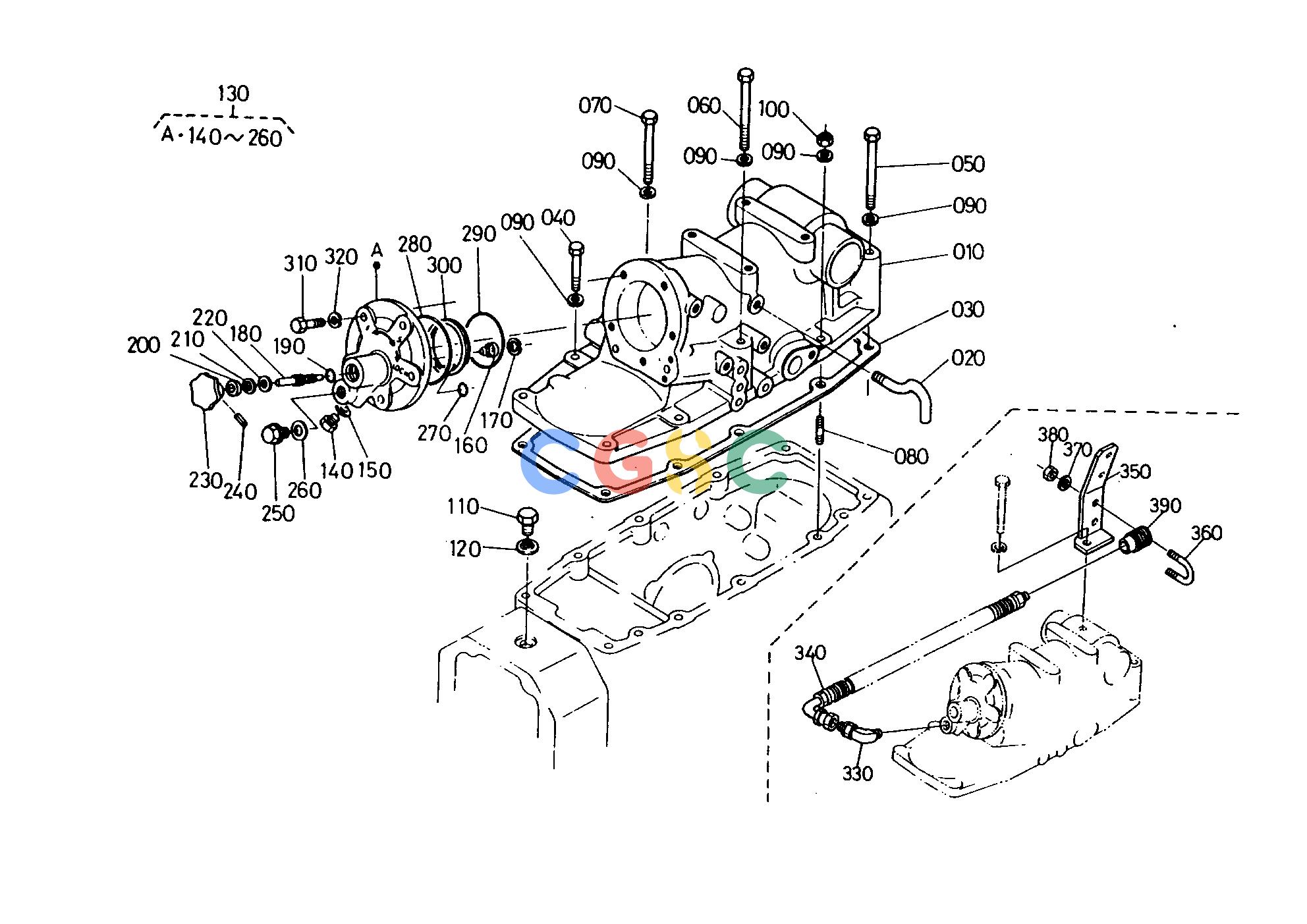

久保田零件查询T09100 HYDRAULIC CYLINDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3730037110
|
[1] |
CYLINDER HYD.
|
0.0000(lbs); 0.000
|
| 010. |
3534037110
|
[1] |
CYLINDER HYD.
|
50.3800(lbs); 22.900
|
| 020. |
3426037270
|
[1] |
PIPE BREATHER
|
0.0660(lbs); 0.030
|
| 020. |
3517037270
|
[1] |
PIPE BREATHER
|
0.0660(lbs); 0.030
|
| 030. |
3715037120
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 040. |
0117351240
|
[4] |
BOLT
|
0.0990(lbs); 0.045
|
| 050. |
3426037180
|
[2] |
BOLT
|
0.2530(lbs); 0.115
|
| 060. |
0117351295
|
[1] |
BOLT
|
0.1892(lbs); 0.086
|
| 070. |
0117351201
|
[1] |
BOLT
|
0.2068(lbs); 0.094
|
| 080. |
0157451240
|
[2] |
STUD
|
0.0990(lbs); 0.045
|
| 090. |
0451250120
|
[10] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 100. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 110. |
0631135030
|
[1] |
PLUG
|
0.1276(lbs); 0.058
|
| 120. |
0471701700
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 130. |
3730037200
|
[1] |
ASSY COVER HYD.CYL.
|
8.1400(lbs); 3.700
|
| 140. |
3715036740
|
[1] |
PLUG
|
0.0550(lbs); 0.025
|
| 150. |
0472400100
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 160. |
3415037250
|
[1] |
COLLAR ADJUSTING
|
0.0220(lbs); 0.010
|
| 170. |
0461100180
|
[1] |
CIR-CLIP INTERNAL
|
0.0022(lbs); 0.001
|
| 180. |
3415037220
|
[1] |
SCREW ADJUSTING
|
0.0550(lbs); 0.025
|
| 190. |
0481000100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
0923008164
|
[1] |
SEAL OIL
|
0.0022(lbs); 0.001
|
| 210. |
3415037260
|
[1] |
CIR-CLIP INTERNAL
|
0.0022(lbs); 0.001
|
| 220. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 230. |
3415037230
|
[1] |
GRIP
|
0.0880(lbs); 0.040
|
| 240. |
0541100418
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 250. |
3715036730
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 260. |
3715036720
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 270. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 280. |
0481151000
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 290. |
0481050800
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 300. |
3730037260
|
[1] |
RING BACK UP
|
0.0044(lbs); 0.002
|
| 310. |
0117351240
|
[5] |
BOLT
|
0.0990(lbs); 0.045
|
| 320. |
0451250120
|
[5] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 330. |
3530099270
|
[1] |
ELBOW
|
1.0780(lbs); 0.490
|
| 340. |
3530099280
|
[1] |
HOSE HYD.
|
0.1320(lbs); 0.060
|
| 350. |
3534099460
|
[1] |
BRACKET JOINT
|
0.6600(lbs); 0.300
|
| 360. |
3534099470
|
[1] |
U BOLT
|
0.0660(lbs); 0.030
|
| 370. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 380. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 390. |
9999999999
|
[1] |
COUPLER FEMALE
|
0.0000(lbs); 0.000
|
