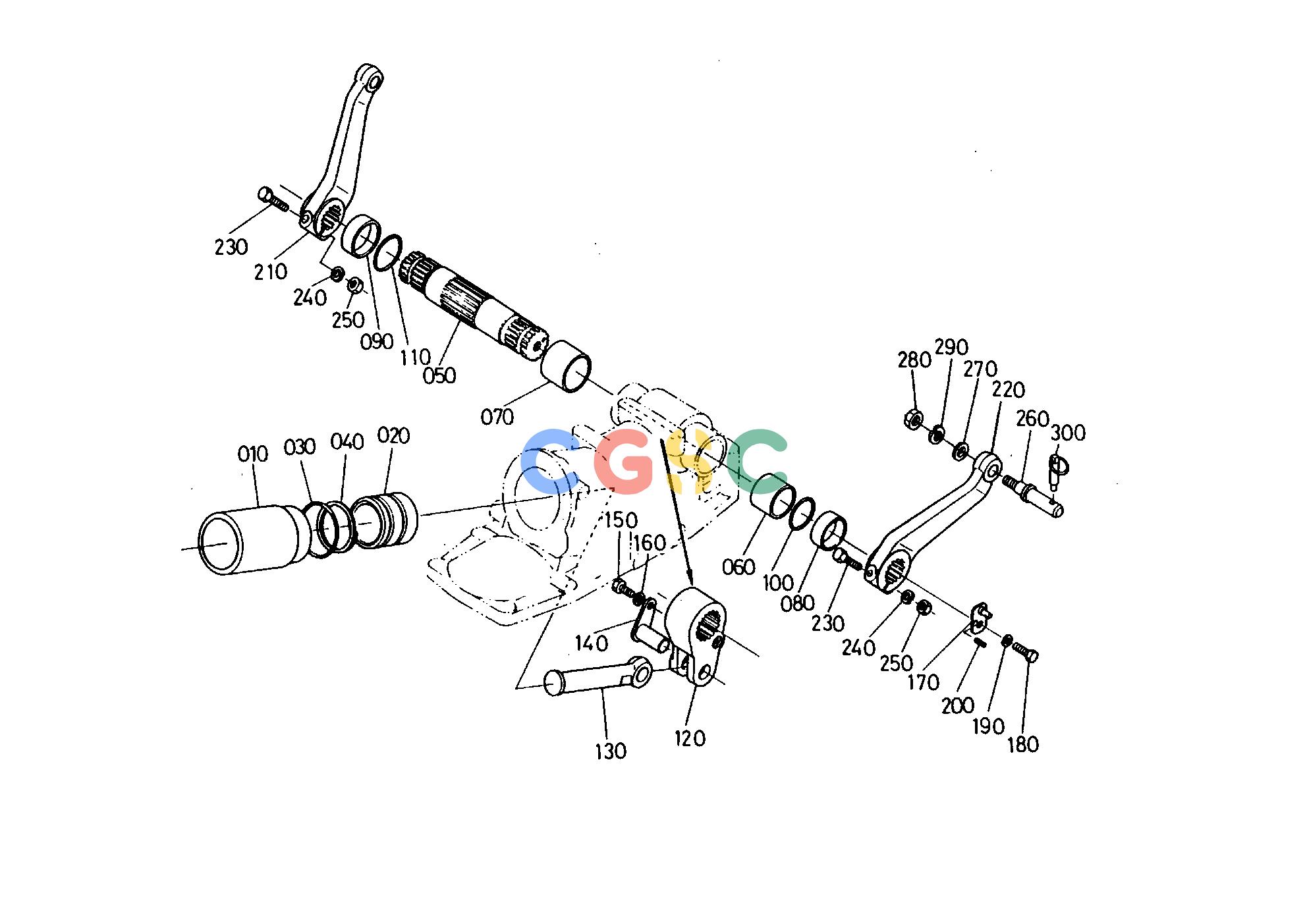

久保田零件查询T09200 LIFT ARM HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
571 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3730037130
|
[1] |
LINER CYLINDER
|
5.5880(lbs); 2.540
|
| 020. |
3730037310
|
[1] |
PISTON HYD.
|
3.8720(lbs); 1.760
|
| 030. |
0481000750
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 040. |
3435037330
|
[1] |
RING BACK UP
|
0.0088(lbs); 0.004
|
| 050. |
3426037430
|
[1] |
SHAFT HYD.ARM
|
7.0400(lbs); 3.200
|
| 060. |
3224037450
|
[1] |
BUSH
|
0.0000(lbs); 0.000
|
| 070. |
3224037460
|
[1] |
BUSH
|
0.0000(lbs); 0.000
|
| 080. |
3730037480
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 090. |
3730037490
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 100. |
0481150450
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 110. |
0481150500
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
3722037440
|
[1] |
ARM HYDRAULIC
|
3.7620(lbs); 1.710
|
| 130. |
3730037320
|
[1] |
ROD HYD.
|
1.1000(lbs); 0.500
|
| 140. |
3224037340
|
[1] |
PIN SET
|
0.4400(lbs); 0.200
|
| 150. |
0117351018
|
[1] |
BOLT
|
0.0396(lbs); 0.018
|
| 160. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 170. |
3730037660
|
[1] |
LINK CONTROL
|
0.0880(lbs); 0.040
|
| 180. |
0117351222
|
[1] |
BOLT
|
0.0682(lbs); 0.031
|
| 190. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 200. |
0541100414
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 210. |
3224037610
|
[2] |
ARM LIFT
|
5.0380(lbs); 2.290
|
| 210. |
3530037610
|
[1] |
ARM LIFT RH
|
6.0720(lbs); 2.760
|
| 220. |
3530037620
|
[1] |
ARM LIFT LH
|
5.9400(lbs); 2.700
|
| 230. |
0117351275
|
[2] |
BOLT
|
0.1562(lbs); 0.071
|
| 230. |
0117351280
|
[2] |
BOLT
|
0.2200(lbs); 0.100
|
| 240. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 250. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 260. |
3730037690
|
[2] |
PIN LIFT ROD
|
0.0000(lbs); 0.000
|
| 260. |
3224037695
|
[2] |
PIN LIFT ROD
|
0.4400(lbs); 0.200
|
| 260. |
3044237690
|
[2] |
PIN LIFT ROD
|
0.4400(lbs); 0.200
|
| 270. |
0401150180
|
[2] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 280. |
0217650160
|
[2] |
NUT
|
0.0462(lbs); 0.021
|
| 290. |
0451250160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 300. |
3415037640
|
[2] |
PIN SET
|
0.1320(lbs); 0.060
|
