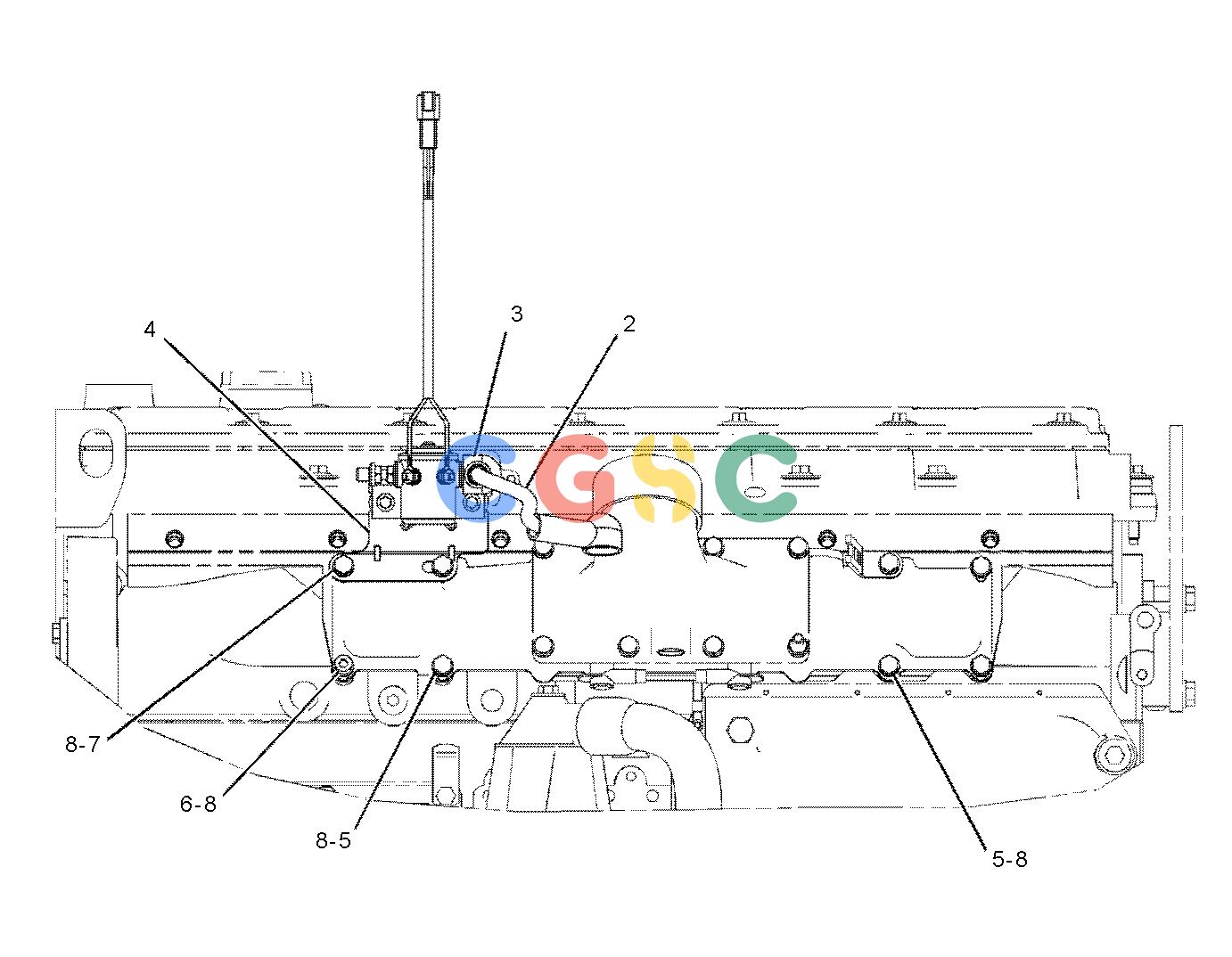

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 2. | 117-7032 | [1] | WIRE AS | |
| 3. | 193-9141 | [2] | COVER-TERMINAL | |
| 4. | 223-7577Y | [1] | SWITCH GP-MAGNETIC(AIR INLET HEATER) | |
| 5. | 6V-2317M | [4] | BOLT(M8X1.25X30-MM) | |
| 6. | 6V-5192M | [1] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 7. | 6V-5218M | [2] | BOLT(M8X1.25X35-MM) | |
| 8. | 9M-1974 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
