卡特零件查询（AP-1055D） 339-7782: STARTING AID GP-ETHER
广数供应链运营团队, 16 02月, 2025，浏览：
205 次

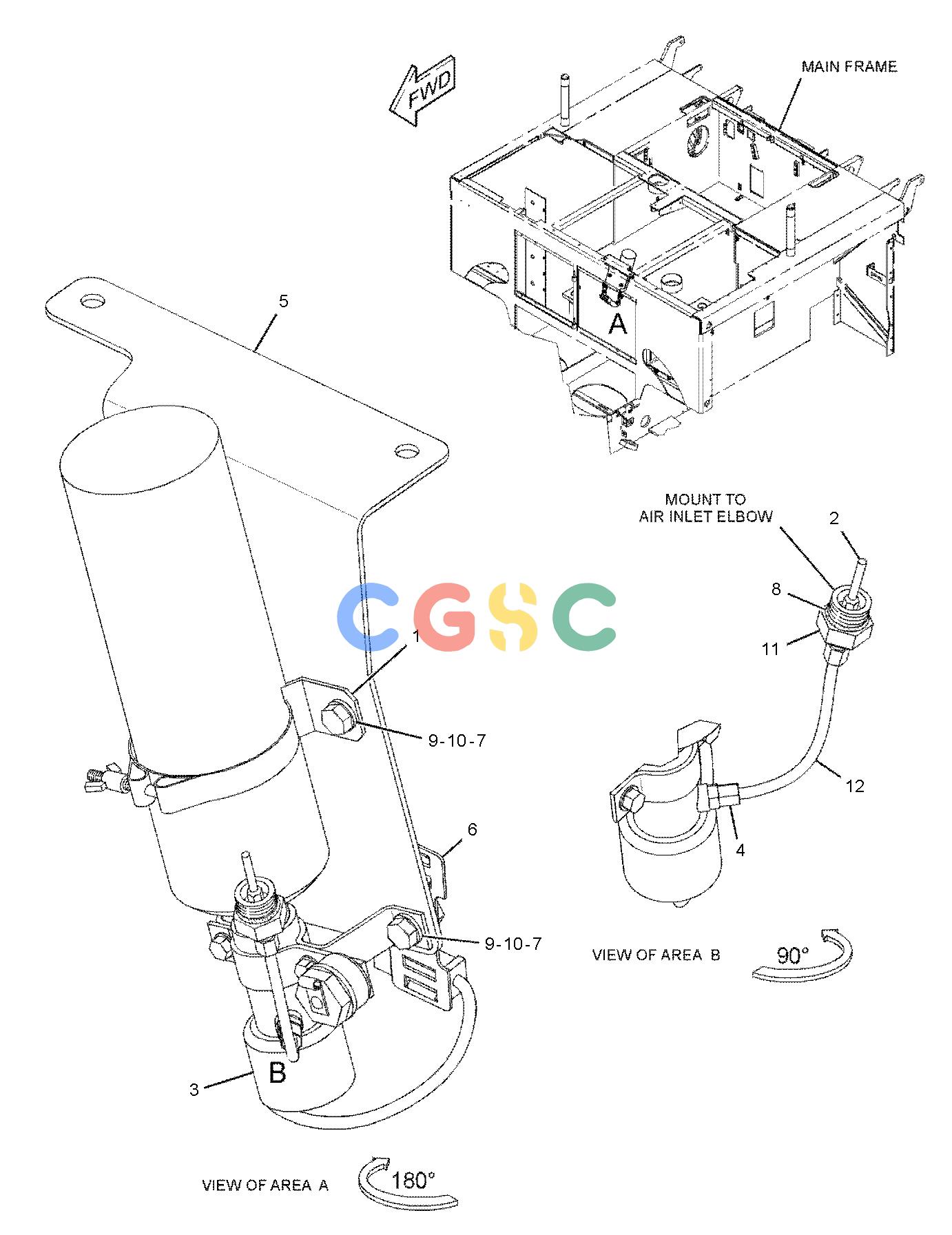

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7N-2059 | [1] | CLAMP AS(CYLINDER) | |
| 2. | 7X-6101 | [1] | ATOMIZER GP-ETHER | |
| | 236-4545 | [1] | NUT-SLEEVE(5/16-24-THD) | |
| 3. | 239-1134Y | [1] | VALVE GP-ETHER STARTING(24-VOLT) | |
| 4. | 241-4194 | [1] | FITTING AS(CONTROL) | |
| | 236-4545 | [1] | NUT-SLEEVE(5/16-24-THD) | |
| 5. | 339-7778 | [1] | PLATE | |
| 6. | 130-5300 | [2] | CLIP | |
| 7. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 8. | 8L-2786 | [1] | SEAL-O-RING | |
| 9. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 10. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 9T-6635 | [1] | PLUG | |
| 12. | 174-9169E | | TUBE(13-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
