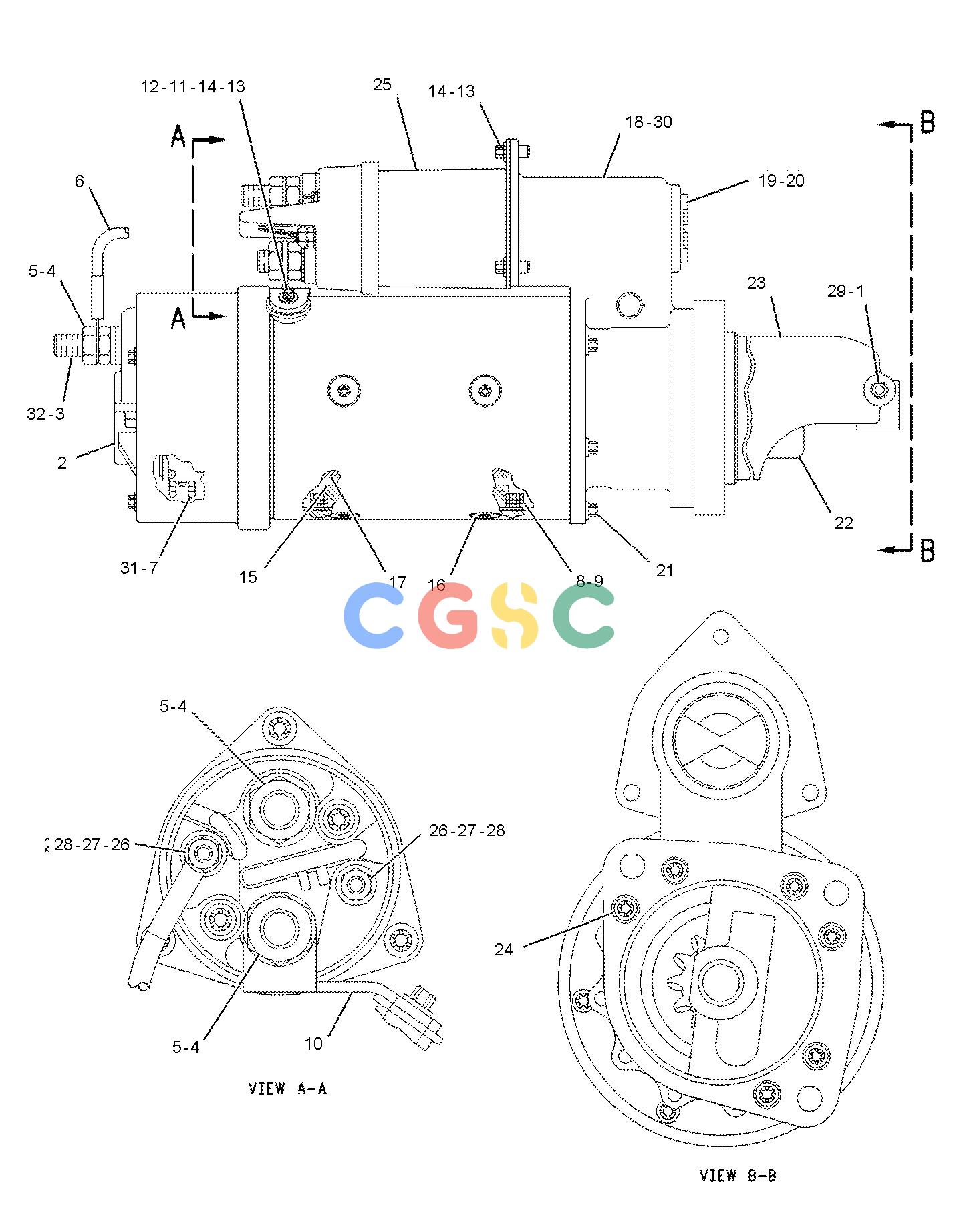

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 108-7808M | [3] | BOLT(M10X1.5X35-MM) | |
| 2. | 6V-5839 | [3] | WASHER(11X21X2.5-MM THK) | |
| 3. | 3K-3257 | [1] | GASKET | |
| 4. | 134-2730 | [1] | WIRE AS | |
| 5. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 6. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 207-1541Y | [1] | STARTING MOTOR GP-ELECTRIC | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
