卡特零件查询（AP-1055D） 228-9121: WIRING GP-HYDRAULIC CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
134 次

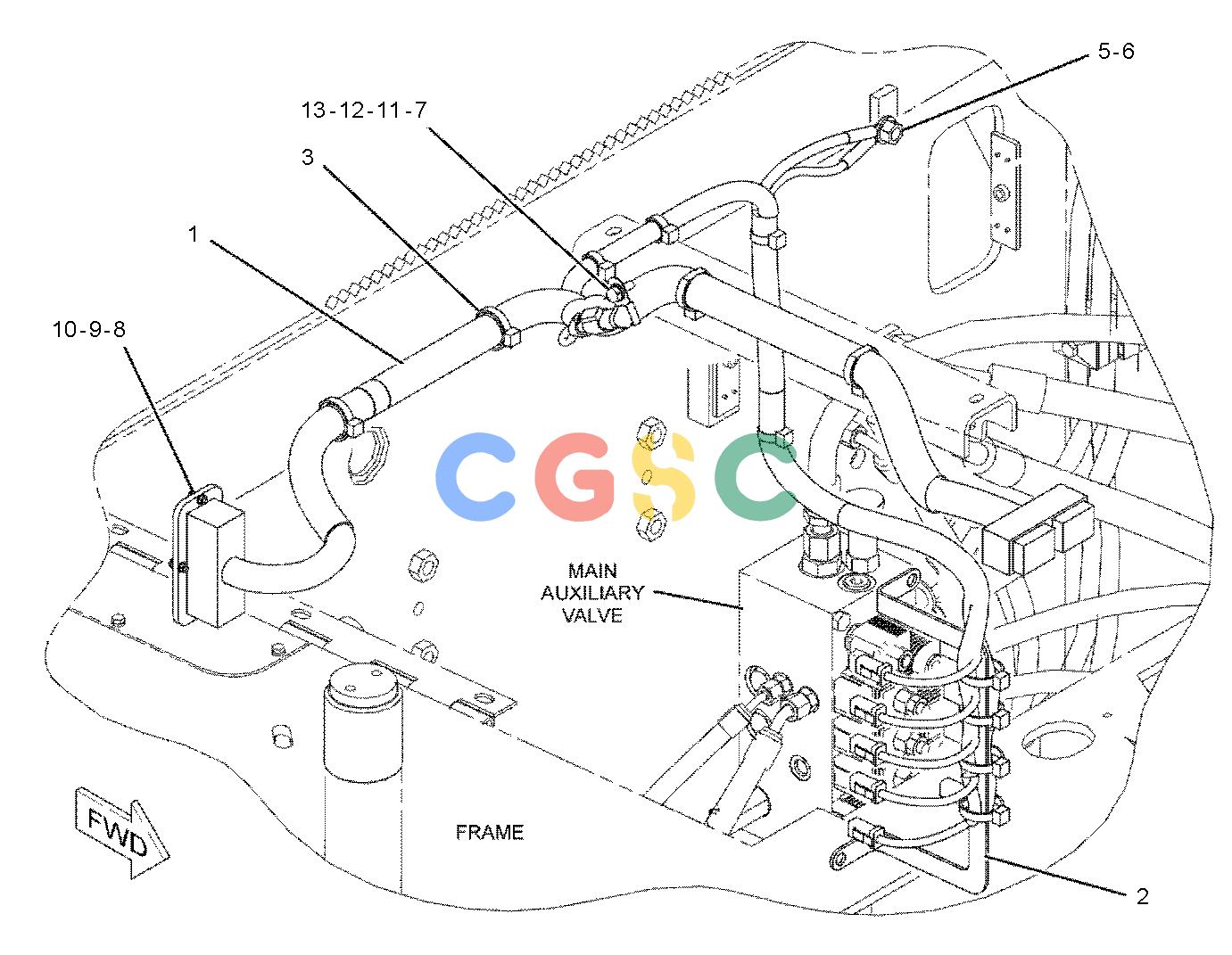

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-9122 | [1] | HARNESS AS-VALVE(REAR) | |
| | 8T-8737 | [51] | PLUG-SEAL | |
| | 9X-4391 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 103-0213 | [1] | RECEPTACLE AS-CONNECTOR(70-PIN) | |
| | 155-2270 | [9] | KIT-CONNECTING PLUG(2-PIN) | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 2. | 240-0219 | [1] | BRACKET | |
| 3. | 7K-1181B | [13] | STRAP-CABLE | |
| 5. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 7. | 116-0118 | [1] | CLIP | |
| 8. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 9. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 10. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 11. | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR | |
| 12. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
