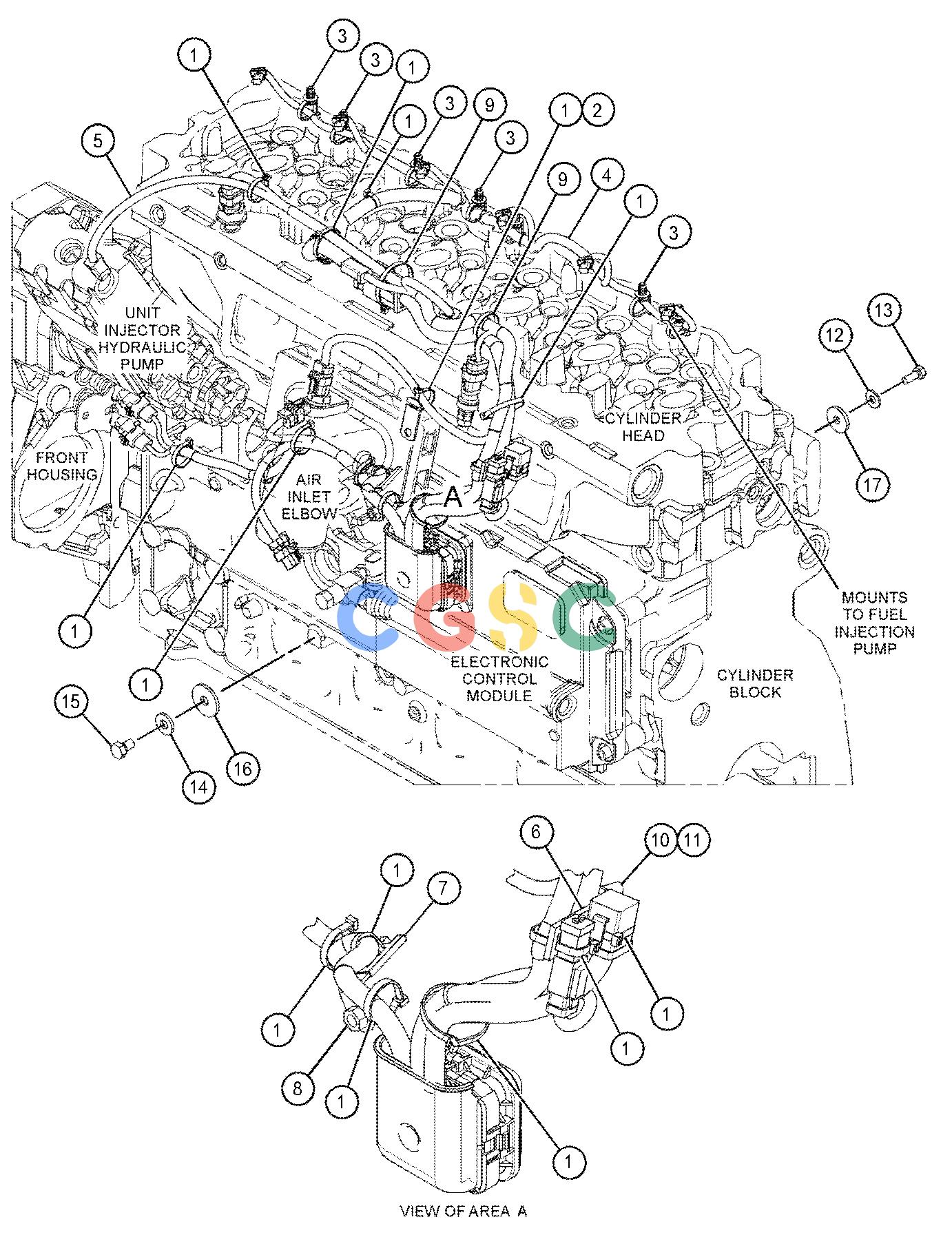

卡特零件查询（AP-1055D） 330-6022: WIRING GP-ENGINE
广数供应链运营团队, 16 02月, 2025，浏览：
611 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [14] | STRAP-CABLE | |
| 2. | 4P-5918 | [1] | CLIP | |
| 3. | 206-1345 | [7] | STRAP-CABLE | |
| 4. | 222-5917Y | [1] | HARNESS AS-ENGINE(FUEL INJECTION) | |
| 5. | 381-2499Y | [1] | HARNESS AS-WIRING(SENSOR) | |
| 6. | 352-3966 | [1] | CLIP(LADDER) | |
| 7. | 4P-8134 | [1] | CLIP(LADDER) | |
| 8. | 5P-7970M | [1] | NUT(M8X1.25-THD) | |
| 9. | 6K-0806 | [2] | STRAP-CABLE | |
| 10. | 6V-2317M | [1] | BOLT(M8X1.25X30-MM) | |
| 11. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 5P-4116J | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 13. | 6V-5217JM | [1] | BOLT(M8X1.25X20-MM) | |
| 14. | 7X-7729J | [1] | WASHER(11X25X3-MM THK) | |
| 15. | 8T-4191JM | [1] | BOLT(M10X1.5X16-MM) | |
| 16. | 113-8690J | [1] | WASHER(11.1X37.9X3.3-MM THK) | |
| 17. | 156-9890J | [1] | WASHER(9X30X4-MM THK) | |
| | J | | SHIPPING & STORAGE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
