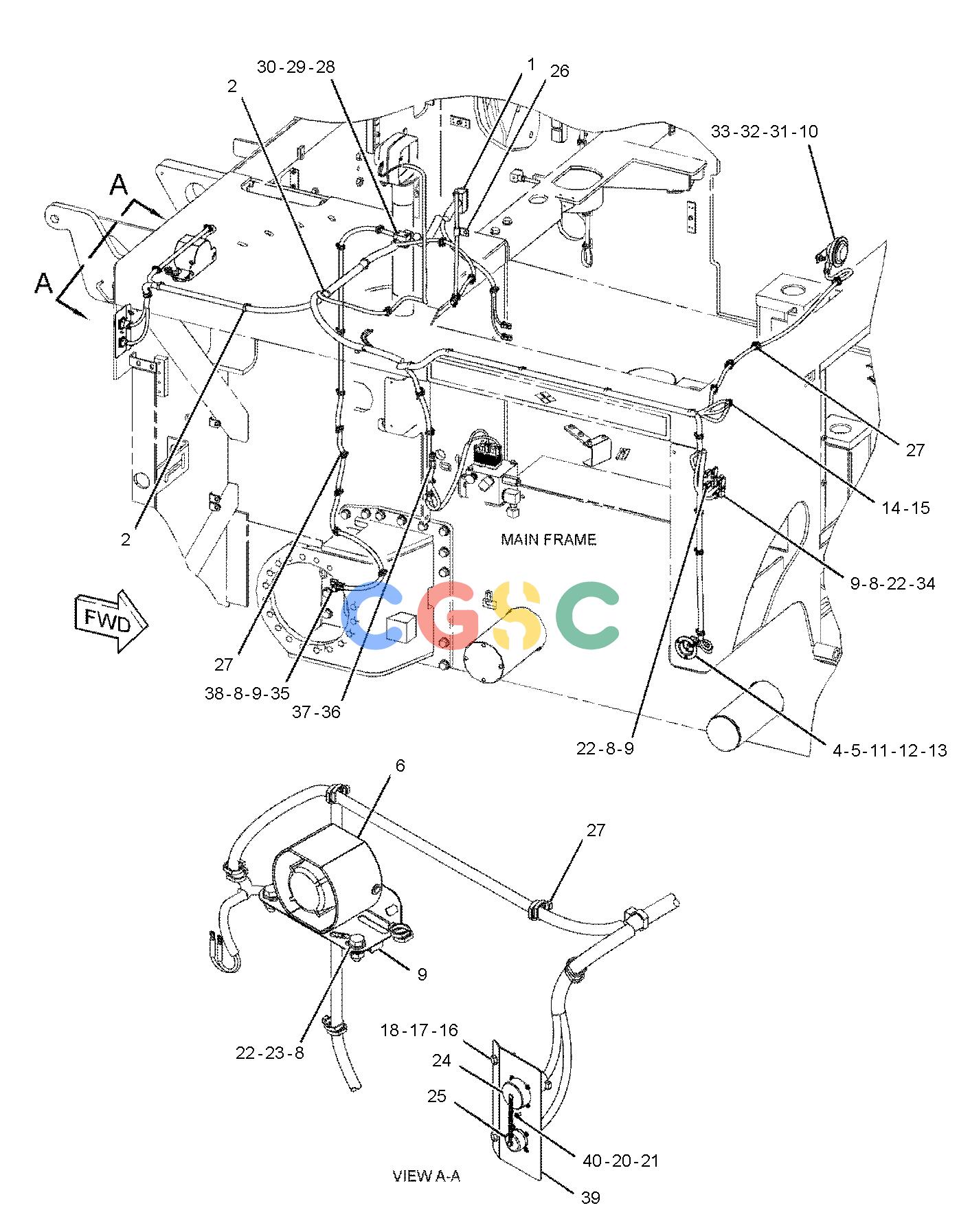

卡特零件查询（AP-1055D） 256-1125: WIRING GP-HYDRAULIC CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
993 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-9126 | [1] | HARNESS AS-CHASSIS(RH) | |
| | 7R-7029 | [1] | CONNECTOR-RECEPTACLE(6-PIN) | |
| | 8T-8737 | [19] | PLUG-SEAL | |
| | 9X-7147 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [11] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | 132-6773 | [1] | CONNECTOR-RECEPTACLE(11-PIN) | |
| | 8T-8730 | [54] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 131-1470 | [3] | TERMINAL AS | |
| | | | (EACH INCLUDES) |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(4-CM) | |
| | 5P-2321 | [4] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 2L-8054 | [1] | TERMINAL-RING(6-GA, 1/2-IN SCREW) | |
| | | | -OR- |
| | 2L-8061 | [1] | TERMINAL-RING(8-GA, 1/2-IN SCREW) | |
| | 2L-8071 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 2L-8076 | [2] | TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 2. | 7K-1181B | [10] | STRAP-CABLE | |
| 4. | 112-3101 | [1] | PLATE-FACE | |
| 5. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT CONTROL) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 6. | 220-0230 | [1] | ALARM AS(BACKUP) | |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-1813E | | SLEEVE(31-CM) | |
| 8. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 116-0118 | [6] | CLIP | |
| 10. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 11. | 2N-3480 | [3] | SCREW-MACHINE(10-24X0.75-IN) | |
| 12. | 4B-4274 | [3] | WASHER(5.5X13X1.2-MM THK) | |
| 13. | 4B-2047 | [3] | NUT(10-24-THD) | |
| 14. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 16. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 17. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 18. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 20. | 9B-1117 | [9] | LOCKWASHER | |
| 21. | 3C-6969M | [9] | NUT(M3X0.5-THD) | |
| 22. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 23. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 24. | 112-5929 | [1] | CAP-DUST | |
| 25. | 8D-9537 | [1] | CAP-DUST | |
| 26. | 124-0174 | [1] | CLIP(LOOP) | |
| 27. | 3S-2093B | [64] | STRAP-CABLE | |
| 28. | 1G-9959 | [2] | CLAMP | |
| 29. | 7V-5628 | [1] | PLATE(TOP) | |
| 30. | 8C-8451M | [2] | BOLT(M6X1X40-MM) | |
| 31. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 32. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 33. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 34. | 189-3158 | [2] | SUPPRESSOR-ARC | |
| 35. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 36. | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 37. | 8T-8737 | [3] | PLUG-SEAL | |
| 38. | 9R-5383 | [1] | BOSS | |
| 39. | 273-7592 | [1] | PLATE(RH) | |
| 40. | 196-7691 | [9] | SCREW(M3X16-MM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
