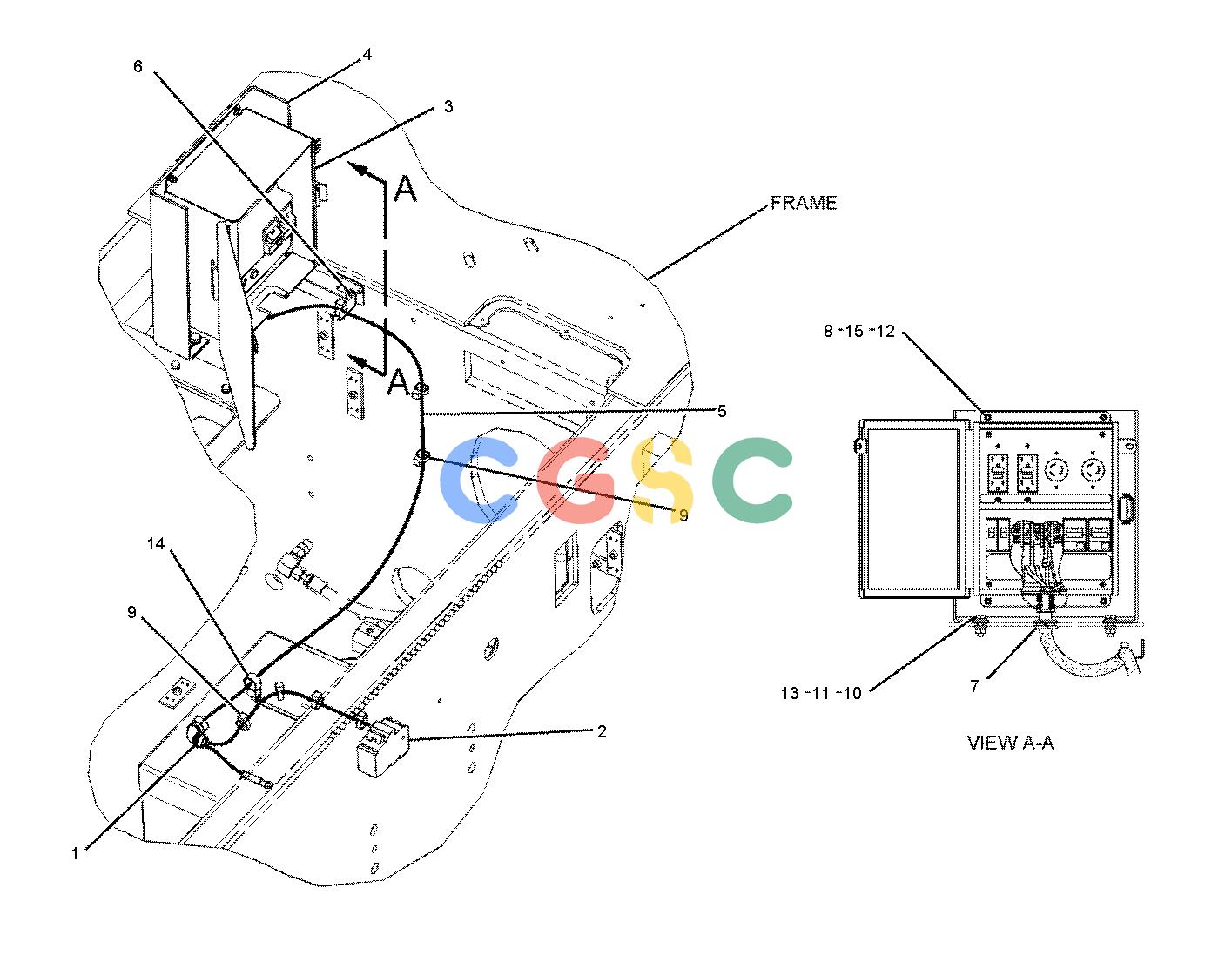

卡特零件查询（AP-1055D） 235-3549: WIRING GP-PANEL
广数供应链运营团队, 16 02月, 2025，浏览：
216 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6815 | [2] | GASKET AS(CONNECTOR) | |
| 2. | 197-1381 | [1] | CIRCUIT BREAKER AS(35-AMPERE)(GENERATOR) | |
| 3. | 232-6362Y | [1] | PANEL GP-POWER(GENERATOR) | |
| 4. | 241-7709 | [1] | PLATE | |
| 5. | 241-8873 | [1] | CABLE AS | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 6Y-6814 | [1] | CONNECTOR | |
| | 9X-2294E | | CONDUIT-FLEXIBLE(16.05-MM ID)(153-CM) | |
| 6. | 132-5789 | [1] | CLIP(LADDER) | |
| 7. | 1M-4543 | [1] | GROMMET | |
| 8. | 6V-7743M | [4] | LOCKNUT(M6X1-THD) | |
| 9. | 7K-1181 | [7] | STRAP-CABLE | |
| 10. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 11. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 13. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 14. | 9X-2332 | [1] | CLIP | |
| 15. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
