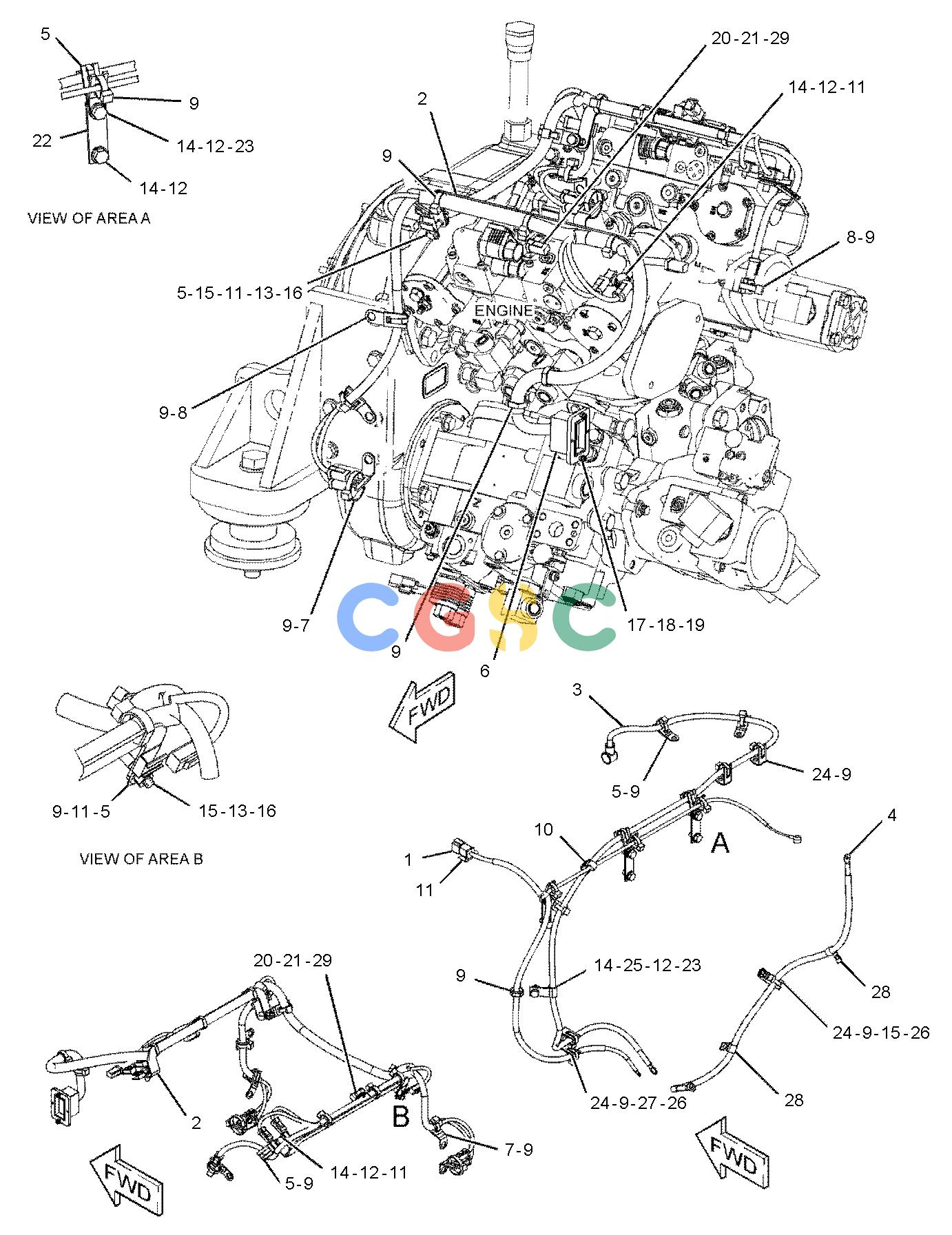

卡特零件查询（AP-1055D） 229-8249: WIRING GP-POWER TRAIN
广数供应链运营团队, 16 02月, 2025，浏览：
888 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 229-8250 | [1] | HARNESS AS-ENGINE(ALTERNATOR, STARTING MOTOR) | |
| 2. | 239-6166 | [2] | BRACKET | |
| 3. | 242-2374 | [1] | CABLE AS | |
| 4. | 242-2373 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(97-CM) | |
| | 3L-6513 | [1] | TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW) | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 5. | 4P-7581 | [11] | CLIP(LADDER)(LADDER) | |
| 6. | 229-8251 | [1] | HARNESS AS-PUMP(AUGER, PROPEL) | |
| 7. | 4P-7429 | [3] | CLIP(LADDER)(LADDER) | |
| 8. | 4P-7428 | [3] | CLIP(LADDER)(LADDER) | |
| 9. | 7K-1181 | [31] | STRAP-CABLE | |
| 10. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 11. | 116-0118 | [7] | CLIP(SLOT) | |
| 12. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 8T-4137M | [9] | BOLT(M10X1.5X20-MM) | |
| 15. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 16. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 17. | 6V-9672M | [2] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 18. | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| 19. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| 20. | 155-2269 | [2] | PLUG AS-CONNECTOR(2-PIN) | |
| | | | (EACH INCLUDES) |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 21. | 8T-8737 | [4] | PLUG-SEAL | |
| 22. | 244-2299 | [3] | PLATE | |
| 23. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 24. | 132-5789 | [5] | CLIP(LADDER)(LADDER) | |
| 25. | 4D-9517 | [1] | CLIP | |
| 26. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 27. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 28. | 8M-2770 | [2] | CLIP(LOOP) | |
| 29. | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
