卡特零件查询（AP-1055D） 314-9026: PUMP & MTG GP-CONVEYOR_卡特彼勒Caterpillar_工程机械

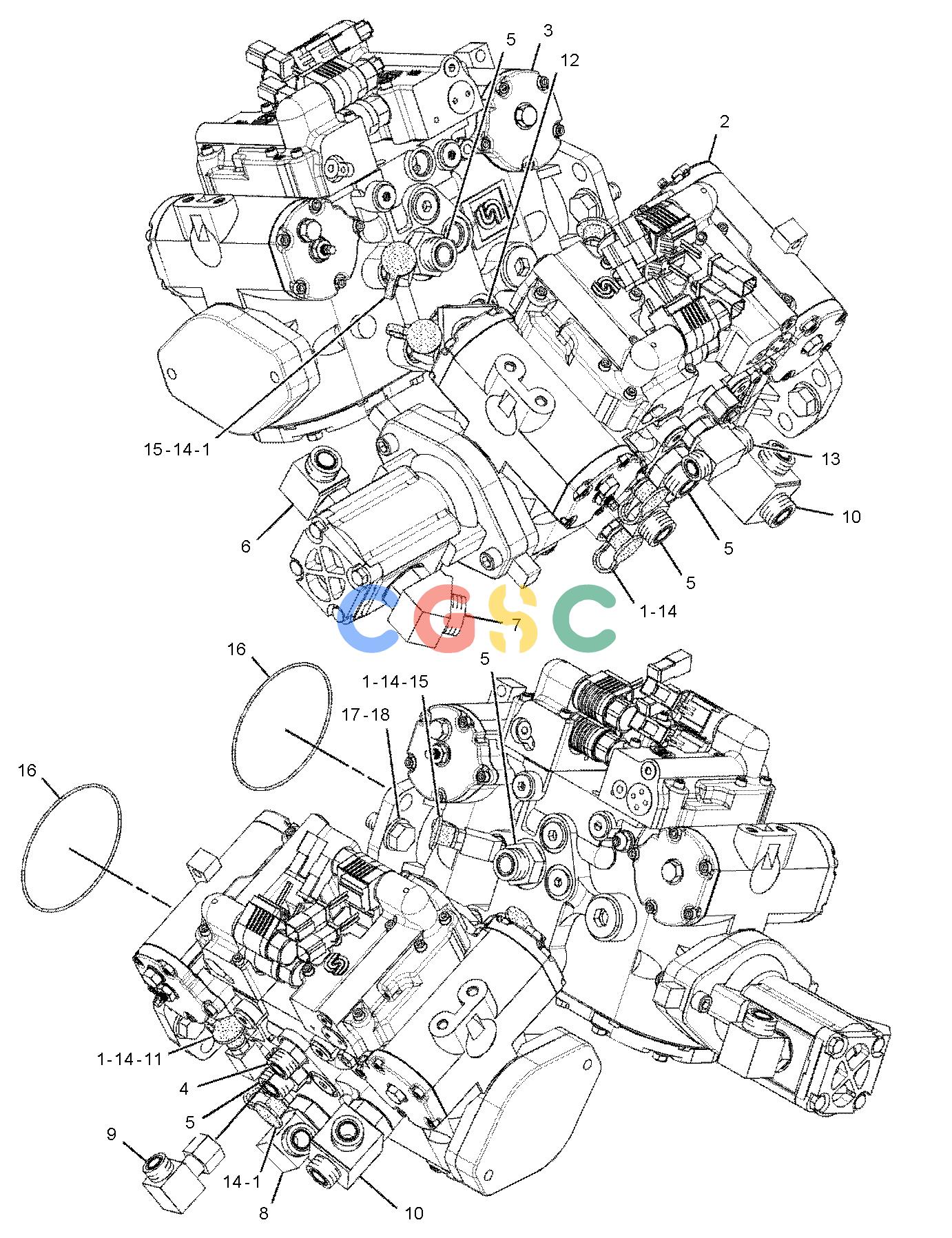

卡特零件查询（AP-1055D） 314-9026: PUMP & MTG GP-CONVEYOR

广数供应链运营团队, 16 02月, 2025，浏览： 983 次

Pos.	Part No	Qty	Parts name
1.	6V-0852	[8]	CAP-DUST
2.	230-9382Y	[1]	PUMP GP-PISTON(AUGER CNVR, DRAG CNVR, LH)
3.	230-9383Y	[1]	PUMP GP-PISTON(AUGER CNVR, DRAG CNVR, RH)
4.	148-8315	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8642	[1]	CONNECTOR
	7J-9108	[1]	SEAL-O-RING
5.	148-8339	[6]	CONNECTOR AS
			(EACH INCLUDES)
	6V-8716	[1]	CONNECTOR(STRAIGHT)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
6.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
7.	148-8355	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	6V-9005	[1]	ELBOW
	7M-8485	[1]	SEAL-O-RING
8.	148-8360	[1]	ELBOW AS
	6V-9182	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
9.	148-8393	[1]	ELBOW AS
	6V-9852	[1]	ELBOW(SWIVEL)
	7J-9108	[1]	SEAL-O-RING
10.	148-8442	[2]	TEE AS
			(EACH INCLUDES)
	6V-9746	[2]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
	8T-1685	[1]	TEE
11.	150-3065	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-0484	[1]	ELBOW
12.	150-4049	[1]	ELBOW AS
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
	8T-4149	[1]	ELBOW
13.	155-3503	[1]	TEE AS
	2M-9780	[1]	SEAL-O-RING
	6V-8776	[1]	TEE-FACE SEAL
	7J-9108	[2]	SEAL-O-RING
14.	164-5567	[8]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	214-7568	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
15.	165-4931	[4]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8077	[1]	ELBOW
16.	7J-6285	[2]	SEAL-O-RING
17.	8T-4122	[4]	WASHER-HARD(17X32X3.5-MM THK)
18.	8T-7338M	[4]	BOLT(M16X2X45-MM)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
