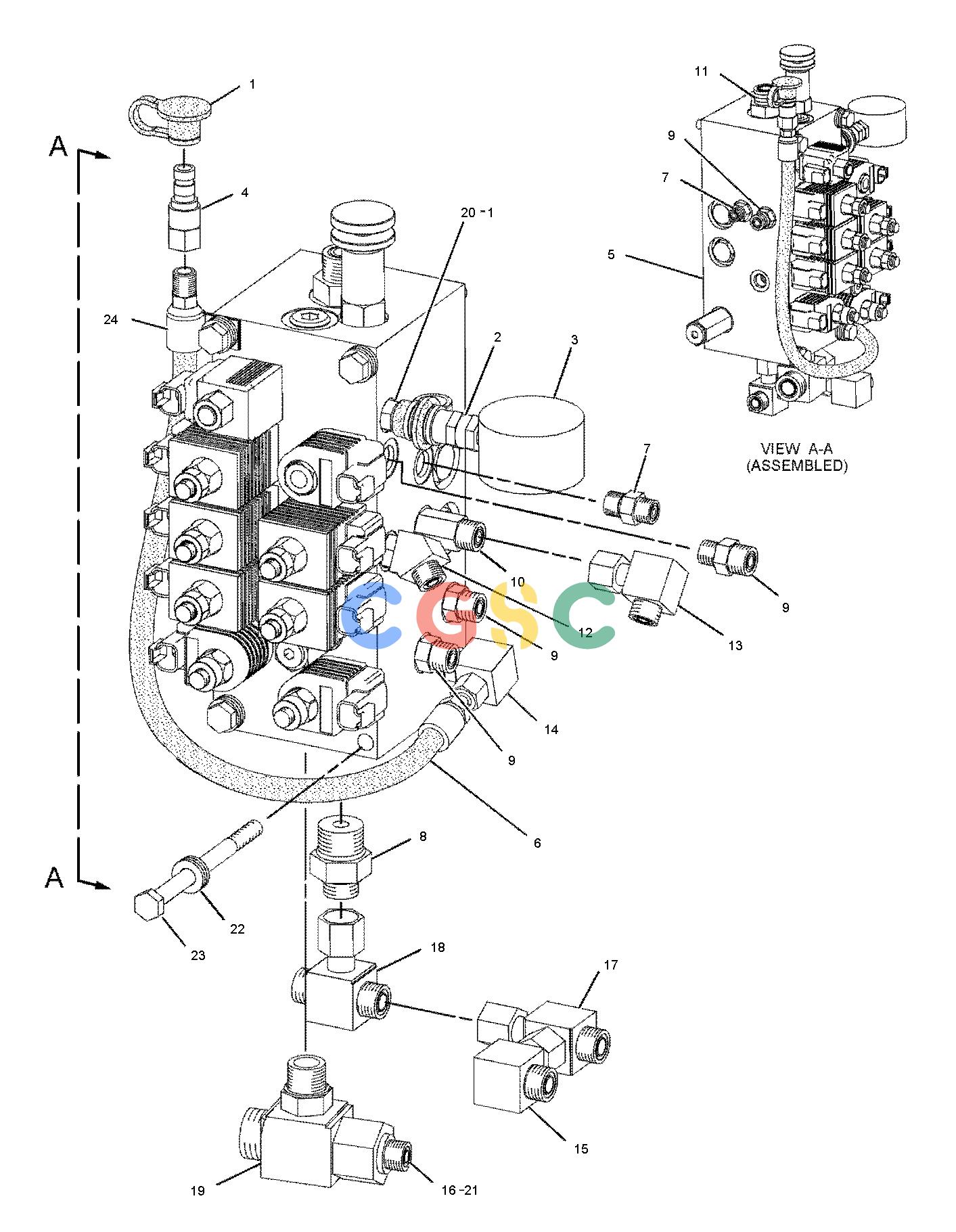

卡特零件查询（AP-1055D） 230-9603: VALVE & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
600 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 6V-4144 | [1] | COUPLER AS-QUICK CONNECT(FLUID SAMPLING) | |
| 3. | 8T-0855 | [1] | GAUGE GP-PRESSURE(SCREED COUNTERBALANCE) | |
| 4. | 098-0286 | [1] | COUPLING | |
| 5. | 284-3559CY | [1] | VALVE GP-CONTROL(AUXILIARY) | |
| 6. | 242-8929I | [1] | HOSE AS | |
| 7. | 148-8325 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 8. | 148-8328 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8633 | [1] | CONNECTOR | |
| 9. | 148-8336 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 10. | 148-8338 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-0075 | [1] | CONNECTOR | |
| 11. | 148-8341 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8713 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 12. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 13. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 14. | 148-8368 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 15. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 16. | 148-8417 | [1] | REDUCER AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8941 | [1] | REDUCER | |
| 17. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 18. | 150-4037 | [1] | TEE AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9844 | [1] | TEE-SWIVEL | |
| 19. | 153-6260 | [1] | TEE AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 8T-8984 | [1] | TEE-O-RING PORT | |
| 20. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 21. | 9X-6580 | [1] | NUT(1-3/16-12-THD) | |
| 22. | 8T-4121 | [13] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-5436M | [4] | BOLT(M10X1.5X130-MM) | |
| 24. | 9M-8406 | [1] | CLIP(LOOP) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
