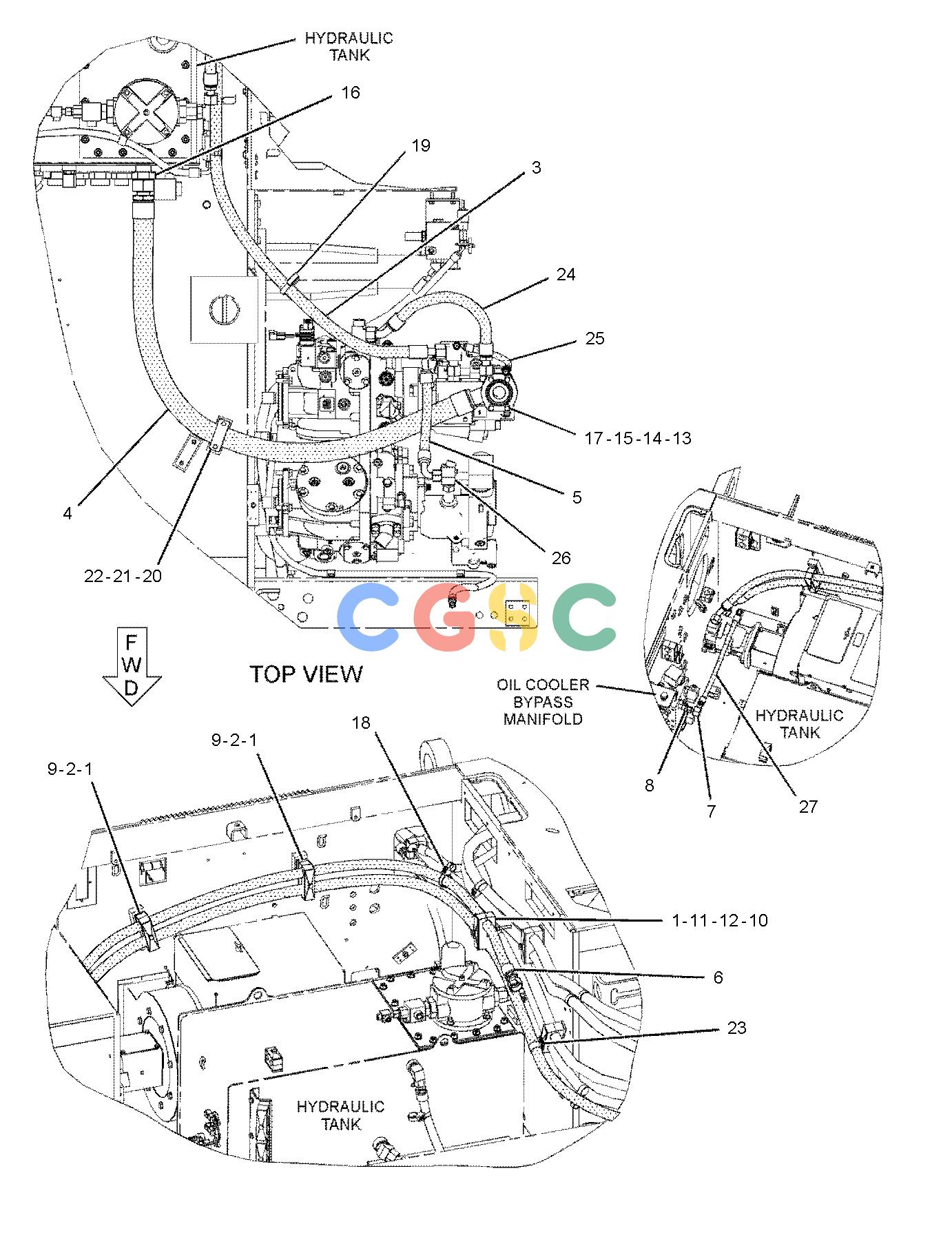

卡特零件查询（AP-1055D） 231-9066: LINES GP-GENERATOR DRIVE
广数供应链运营团队, 16 02月, 2025，浏览：
304 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 206-6413 | [6] | CLAMP-HALF | |
| 2. | 207-4499 | [2] | PLATE-COVER | |
| 3. | 251-4567I | [1] | HOSE AS | |
| 4. | 237-4340I | [1] | HOSE AS | |
| 5. | 251-4574I | [1] | HOSE AS | |
| 6. | 251-4568I | [1] | HOSE AS | |
| 7. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 8. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 9. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 10. | 8T-6870M | [1] | BOLT(M8X1.25X70-MM) | |
| 11. | 154-4892M | [1] | BOLT-STACKING(M8X1.25X61-MM) | |
| 12. | 206-0452 | [1] | PLATE | |
| 13. | 1P-4582 | [2] | FLANGE-HALF | |
| 14. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 0S-1587 | [4] | BOLT(1/2-13X1.75-IN) | |
| 16. | 205-4132 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-8985 | [1] | CONNECTOR | |
| 17. | 4J-0527 | [1] | SEAL-O-RING | |
| 18. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 19. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 20. | 7R-7942 | [2] | CLAMP | |
| 21. | 7R-7952 | [1] | COVER | |
| 22. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 23. | 6V-1889 | [1] | CLIP(LOOP) | |
| 24. | 222-4474I | [1] | HOSE AS | |
| 25. | 143-0377I | [1] | HOSE AS | |
| 26. | 148-8393 | [1] | ELBOW AS | |
| | 6V-9852 | [1] | ELBOW(SWIVEL) | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 27. | 9U-2355I | [1] | HOSE AS | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
