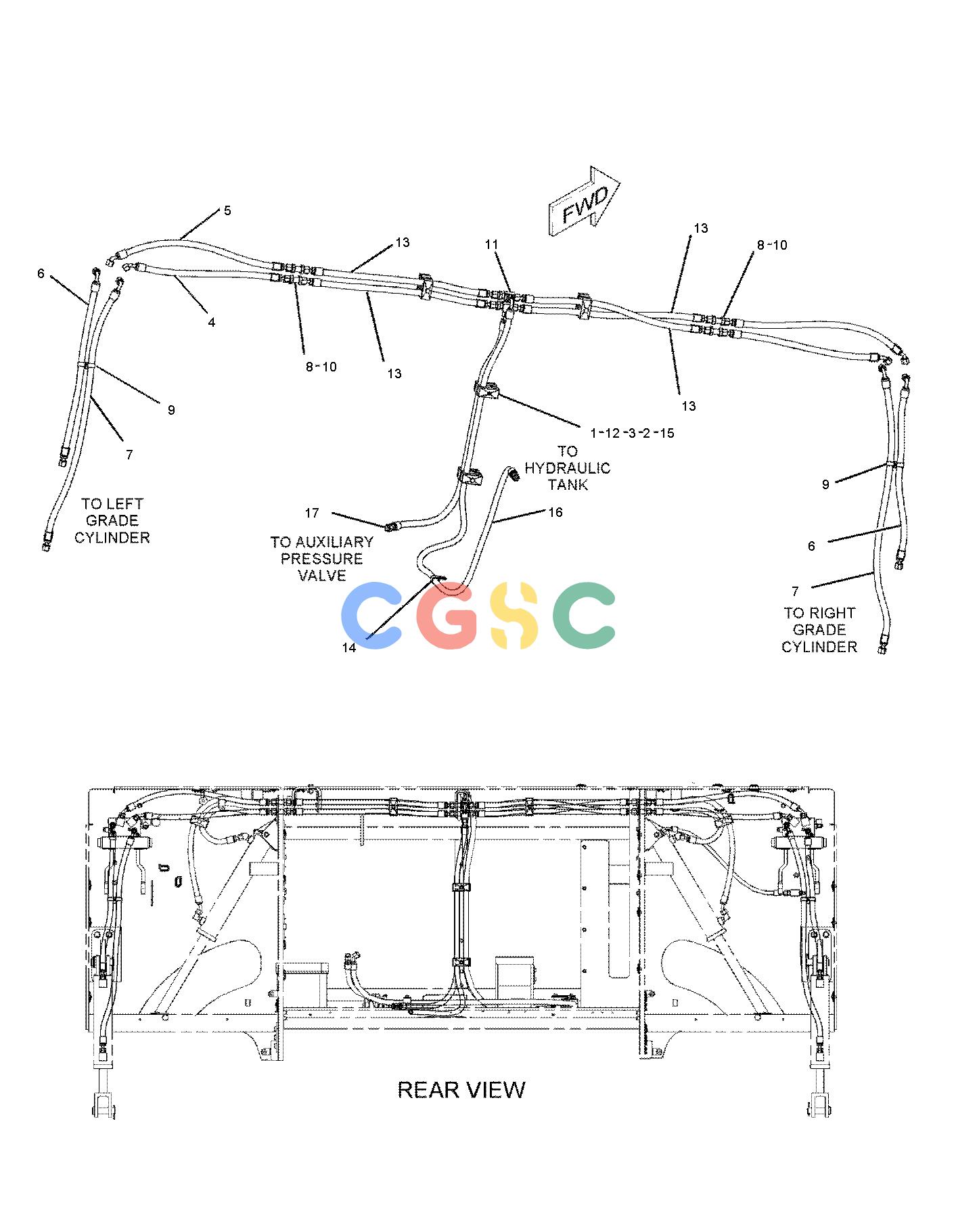

卡特零件查询（AP-1055D） 230-9621: LINES GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
693 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 154-4881 | [16] | CLAMP-HALF | |
| 2. | 206-0451M | [4] | BOLT-STACKING(M8X1.25X44-MM) | |
| 3. | 206-0452 | [4] | PLATE | |
| 4. | 221-2842I | [2] | HOSE AS | |
| 5. | 179-9118I | [2] | HOSE AS | |
| 6. | 195-6086I | [2] | HOSE AS | |
| 7. | 122-2062I | [2] | HOSE AS | |
| 8. | 213-2265 | [4] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| 9. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 10. | 6V-9168 | [6] | NUT(11/16-16-THD) | |
| 11. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 12. | 102-8705 | [4] | PLATE(TOP) | |
| 13. | 141-7730I | [4] | HOSE AS | |
| 14. | 6D-4246 | [1] | CLIP(LOOP) | |
| 15. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 16. | 227-8217I | [1] | HOSE AS | |
| 17. | 213-2009I | [1] | HOSE AS | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
