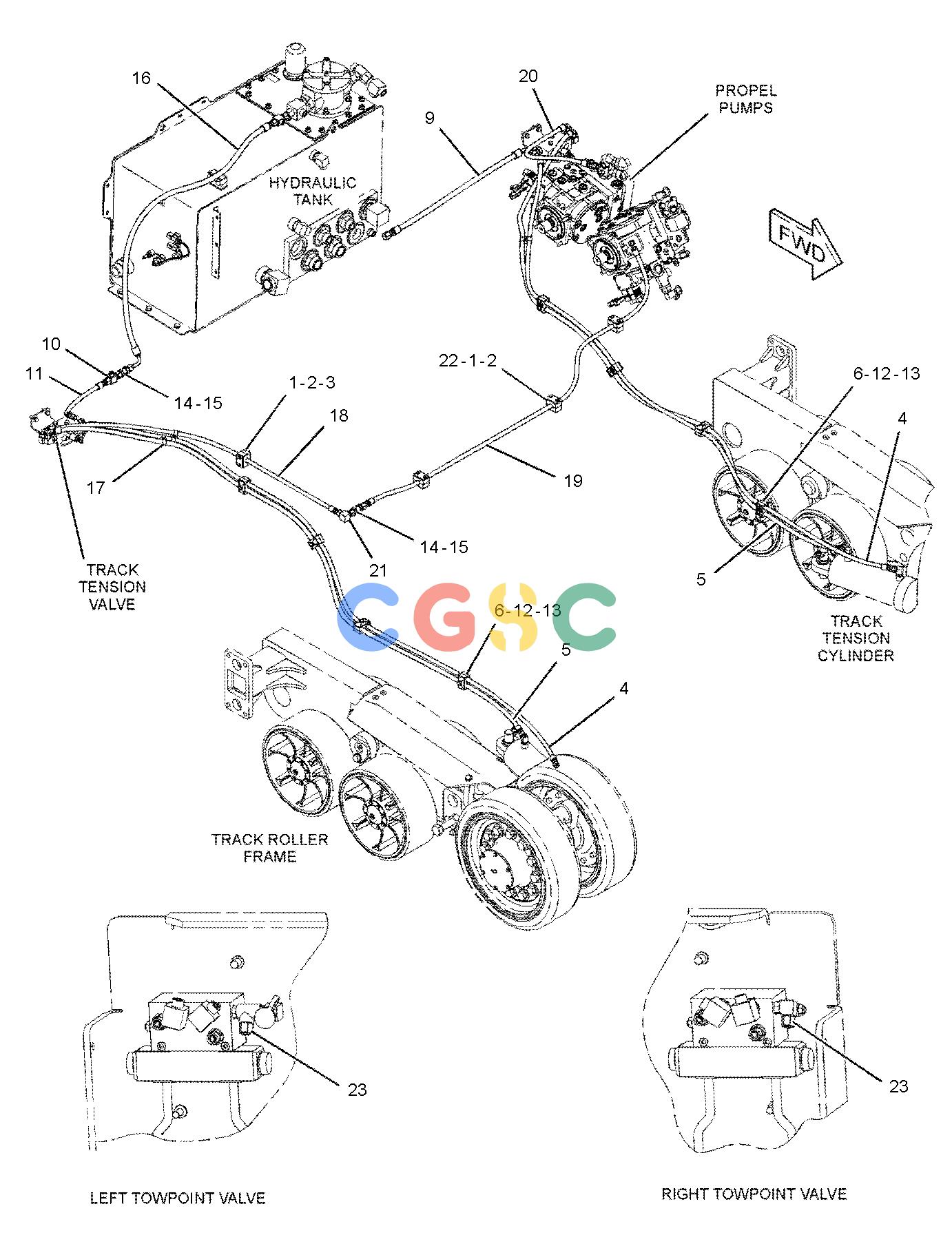

卡特零件查询（AP-1055D） 254-8985: LINES GP-TRACK TENSION
广数供应链运营团队, 16 02月, 2025，浏览：
710 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7906 | [8] | CLAMP | |
| 2. | 7V-5628 | [4] | PLATE(TOP) | |
| 3. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 4. | 257-2748I | [2] | HOSE AS | |
| 5. | 257-2747I | [2] | HOSE AS | |
| 6. | 156-5306 | [16] | CLAMP-HALF | |
| 9. | 264-2989I | [1] | HOSE AS | |
| 10. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 11. | 127-2262I | [1] | HOSE AS | |
| 12. | 102-8703 | [8] | PLATE-COVER | |
| 13. | 7X-2537M | [8] | BOLT(M8X1.25X35-MM) | |
| 14. | 213-2265 | [2] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| 15. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 16. | 8Y-4505I | [1] | HOSE AS | |
| 17. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 18. | 232-3144I | [1] | HOSE AS | |
| 19. | 232-3313I | [1] | HOSE AS | |
| 20. | 131-6468I | [1] | HOSE AS | |
| 21. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 22. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 23. | 6V-9828 | [2] | CAP(ORFS) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
