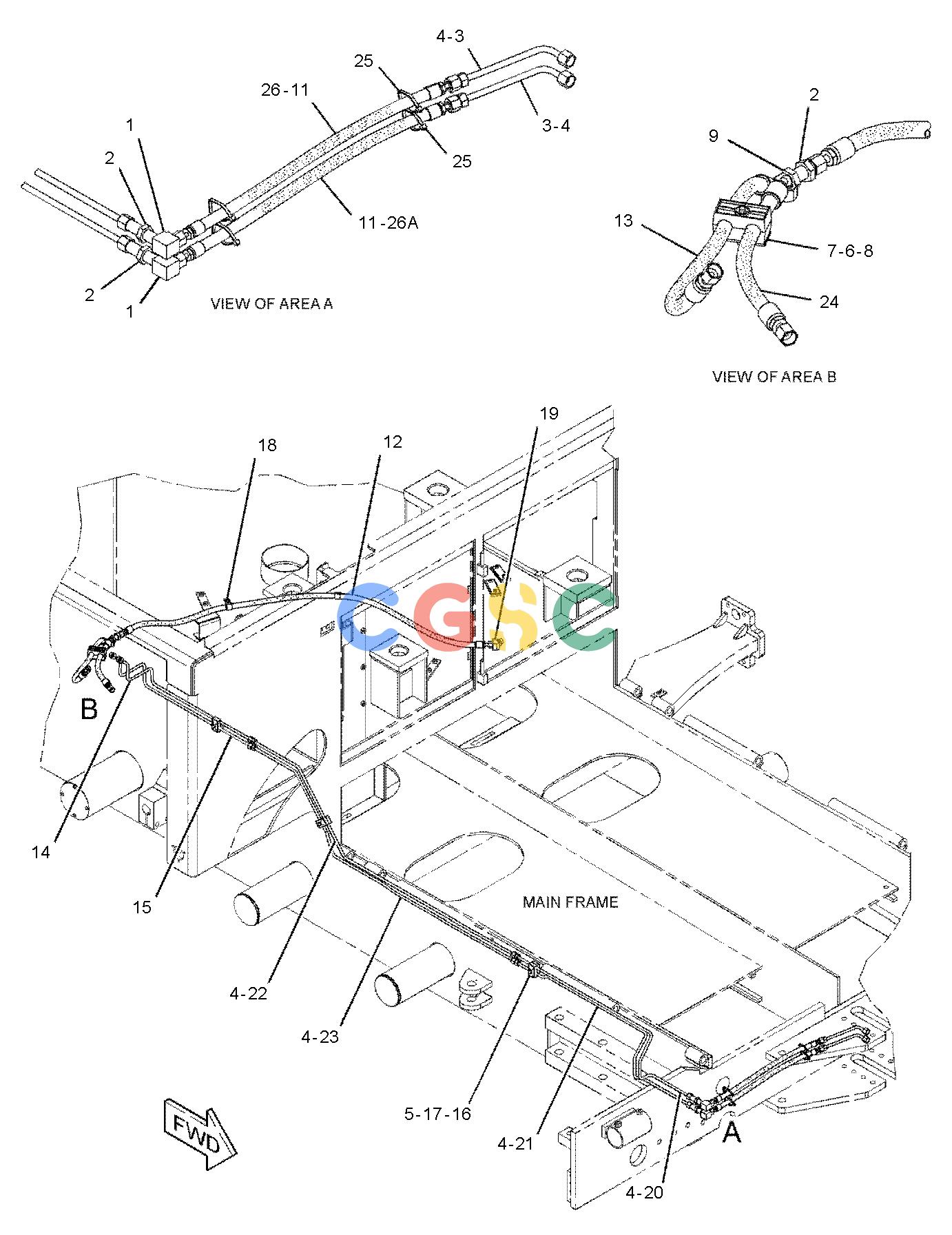

卡特零件查询（AP-1055D） 257-7307: LINES GP-TRUCK HITCH

广数供应链运营团队, 16 02月, 2025，浏览： 170 次

Pos.	Part No	Qty	Parts name
1.		[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	9X-2195	[1]	ELBOW
2.	6V-9168	[3]	NUT(11/16-16-THD)
3.	130-7218	[2]	TUBE AS
4.	6V-8397	[6]	SEAL-O-RING
5.	206-6409	[6]	CLAMP-HALF
6.	154-4881	[2]	CLAMP-HALF
7.	102-8705	[1]	PLATE(TOP)
8.	7X-0818M	[1]	BOLT(M8X1.25X45-MM)
9.	213-2265	[1]	UNION AS
	6V-8397	[2]	SEAL-O-RING
	150-0128	[1]	UNION
11.	257-3564I	[2]	HOSE AS
12.	179-2485I	[1]	HOSE AS
13.	5G-8901I	[1]	HOSE AS
14.	238-8540	[1]	TUBE AS
15.	238-8541	[1]	TUBE AS
16.	102-8703	[3]	PLATE-COVER
17.	7X-2537M	[3]	BOLT(M8X1.25X35-MM)
18.	6D-4246	[2]	CLIP(LOOP)
19.	148-8363	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9876	[1]	ELBOW
20.	257-7832	[1]	TUBE AS
21.	257-7834	[1]	TUBE AS
22.	257-7833	[1]	TUBE AS
23.	257-7835	[1]	TUBE AS
24.	1G-4740I	[1]	HOSE AS
25.	3S-2093	[4]	STRAP-CABLE
26.	154-1420E		SLEEVE(60-CM)
26A.	154-1420E		SLEEVE(60-CM)
	E		ORDER BY THE CENTIMETER
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
