卡特零件查询（AP-1055D） 255-4489: LINES GP-PROPEL
广数供应链运营团队, 16 02月, 2025，浏览：
470 次

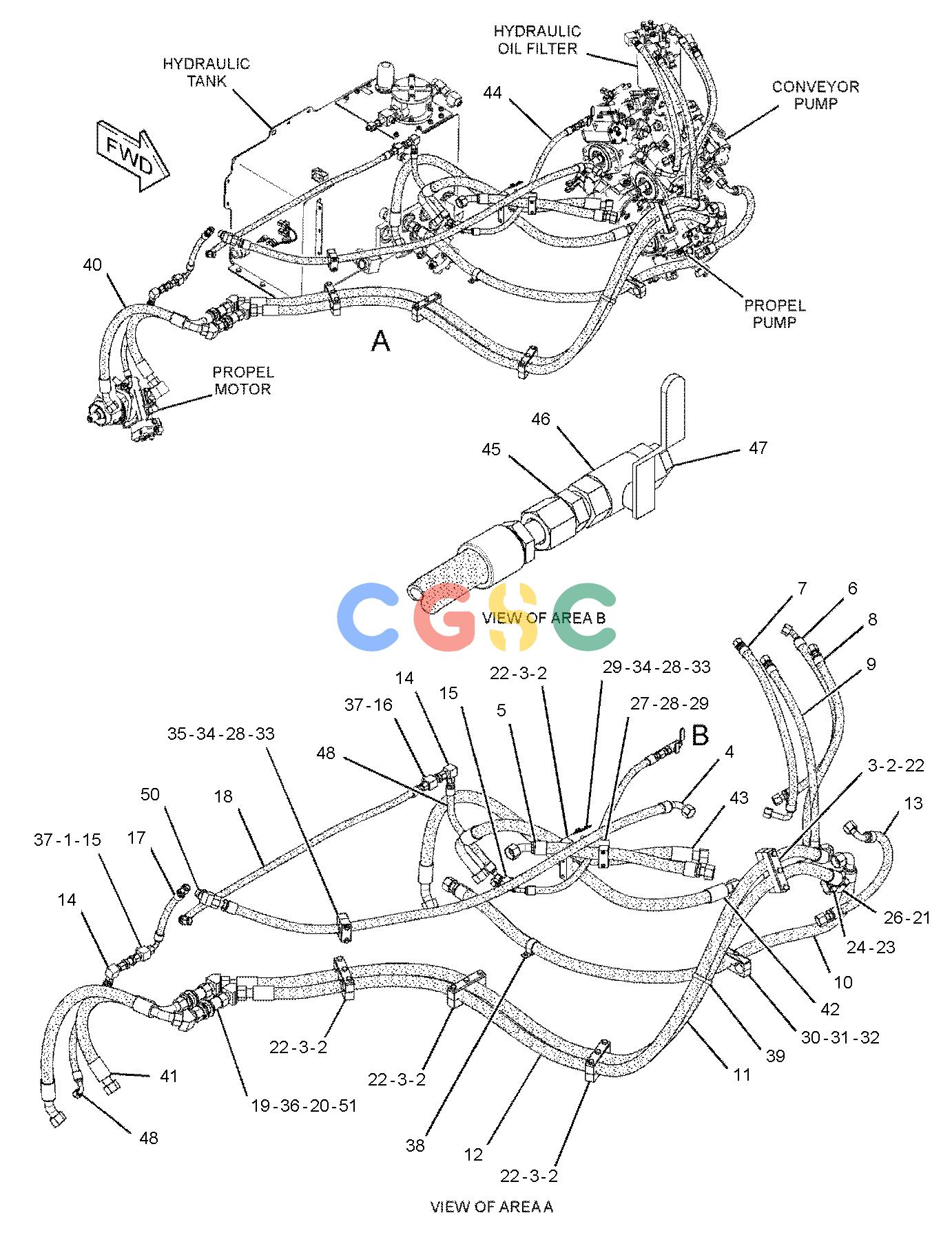

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | | [1] | UNION AS |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 2. | 205-9342 | [10] | CLAMP | |
| 3. | 205-9343 | [5] | COVER | |
| 4. | 167-1083I | [1] | HOSE AS | |
| 5. | 254-5554I | [1] | HOSE AS | |
| 6. | 254-5557I | [1] | HOSE AS | |
| 7. | 243-2653I | [1] | HOSE AS | |
| 8. | 254-5558I | [1] | HOSE AS | |
| 9. | 237-0846I | [1] | HOSE AS | |
| 10. | 254-5559I | [1] | HOSE AS | |
| 11. | 237-2081I | [1] | HOSE AS | |
| 12. | 237-0936I | [1] | HOSE AS | |
| 13. | 124-6101I | [1] | HOSE AS | |
| 14. | 148-8370 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 15. | 148-8444 | [2] | TEE AS-SWIVEL | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 16. | 148-8427 | [1] | TEE AS(ORFS) | |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 17. | 161-6790I | [1] | HOSE AS | |
| 18. | 140-9268I | [1] | HOSE AS | |
| 19. | 214-0095 | [2] | UNION AS(BULKHEAD) | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 7X-2464 | [1] | UNION | |
| 20. | 177-1061 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 142-0038 | [1] | ELBOW(45-DEG) | |
| 21. | 1P-5766 | [6] | FLANGE-HALF | |
| 22. | 8T-5005M | [15] | BOLT(M10X1.5X70-MM) | |
| 23. | 8T-5360 | [12] | WASHER(12X22.5X2.5-MM THK) | |
| 24. | 8C-6877 | [12] | BOLT(7/16-14X1.75-IN) | |
| 26. | 1P-3703 | [3] | SEAL-RECTANGULAR | |
| 27. | 5V-6152 | [2] | CLAMP | |
| 28. | 7R-7951 | [3] | PLATE | |
| 29. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 30. | 206-6415 | [2] | CLAMP-HALF | |
| 31. | 207-4499 | [1] | PLATE-COVER | |
| 32. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 33. | 7R-7939 | [4] | CLAMP-PIPE | |
| 34. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 35. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 36. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 37. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 38. | 7D-7233 | [1] | CLIP(LOOP) | |
| 39. | 178-3620 | [1] | STRAP-DUAL CLAMP(DUEL CLAMP) | |
| 40. | 266-0867I | [1] | HOSE AS | |
| 41. | 266-0866I | [1] | HOSE AS | |
| 42. | 266-0868I | [1] | HOSE AS | |
| 43. | 266-0869I | [1] | HOSE AS | |
| 44. | 127-5750I | [1] | HOSE AS | |
| 45. | 150-4043 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9873 | [1] | CONNECTOR | |
| 46. | 124-6809 | [1] | VALVE-BALL(FUEL TANK DRAIN) | |
| 47. | 148-8407 | [1] | PLUG AS(TRANSMISSION OIL FILTER DRAIN) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 48. | 130-8233I | [2] | HOSE AS | |
| 50. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW(45-DEG) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
