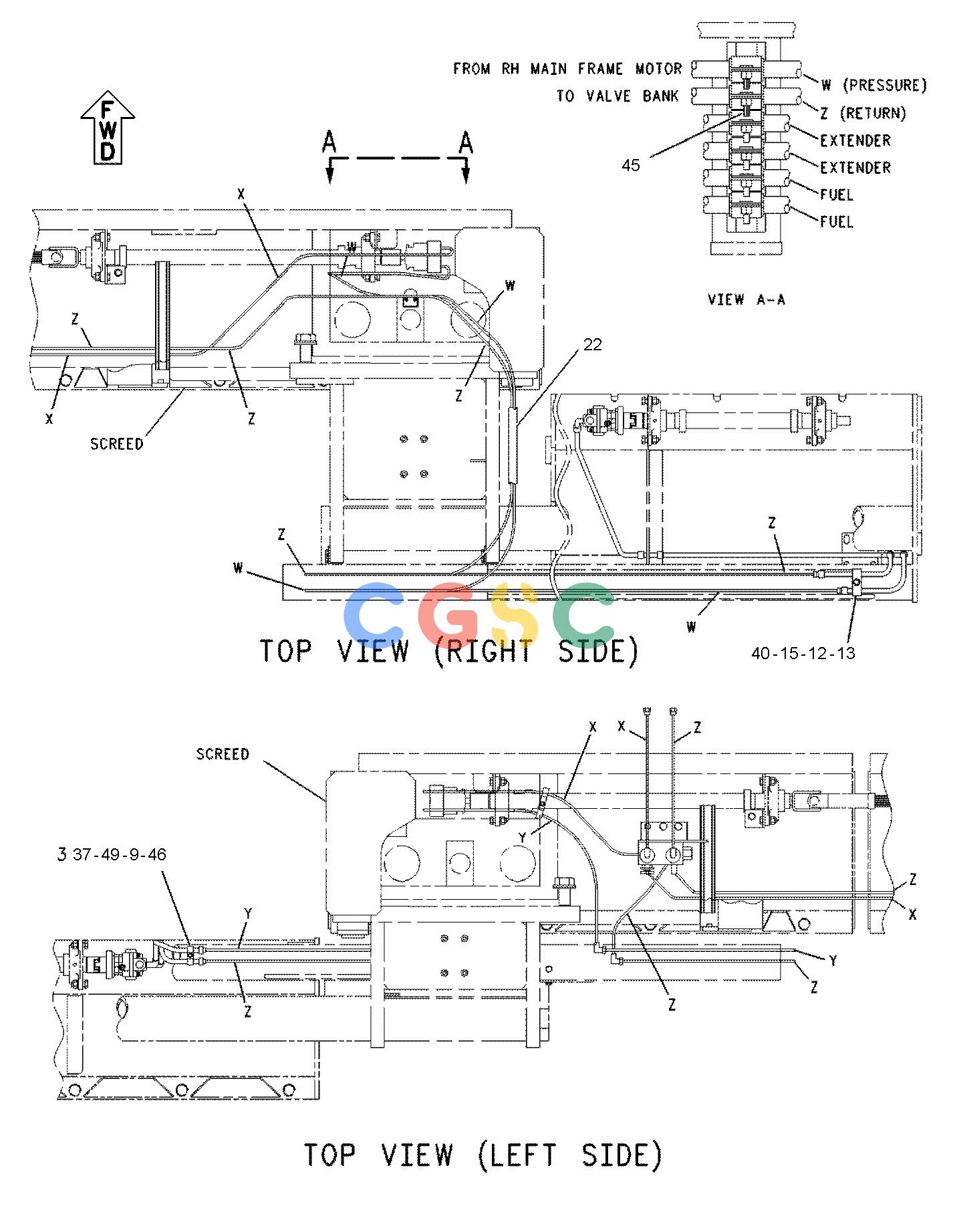

卡特零件查询（AP-1055D） 112-3467: LINES GP-VIBRATORY
广数供应链运营团队, 16 02月, 2025，浏览：
948 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-6304 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | | [1] | RETAINER |
| 2. | 5R-6305 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 3. | 5R-5718 | [1] | PLUG-DUST | |
| 4. | 5R-5719 | [1] | CAP-DUST | |
| 5. | 148-8327C | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 6V-8189 | [4] | NUT(5/16-18-THD) | |
| 7. | 7X-5315 | [1] | FITTING(QUICK DISCONNECT) | |
| 8. | 159-8353I | [2] | HOSE AS | |
| 9. | 8T-8908 | [1] | BOLT(1/4-20X1-IN) | |
| 10. | 153-6237C | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 11. | 208-1632CY | [1] | VALVE GP-CONTROL(VIBRATORY) | |
| 12. | 086-9286 | [2] | CLAMP | |
| 13. | 3V-0046 | [1] | PLATE | |
| 14. | 6V-8398 | [4] | SEAL-O-RING | |
| 15. | 7X-0440 | [1] | BOLT(5/16-18X1.75-IN) | |
| 16. | 148-8370C | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 17. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 18. | 8I-0673 | [4] | MOUNT | |
| 19. | 118-4331I | [1] | HOSE AS | |
| 20. | 9R-9299I | [1] | HOSE AS | |
| 21. | 148-8364C | [9] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 22. | 160-2248G | | SLEEVE-ABRASION(36.2-IN) | |
| 23. | 8I-0663I | [2] | HOSE AS | |
| 24. | 108-3184I | [1] | HOSE AS | |
| 25. | 148-8340C | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 26. | 8I-0721Y | [4] | MOTOR GP-GEROTOR(VIBRATORY) | |
| 27. | 148-8457C | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 28. | 148-8375C | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 29. | 6V-9169 | [6] | NUT(13/16-16-THD) | |
| 30. | 8I-0665I | [2] | HOSE AS | |
| 31. | 8I-0666I | [3] | HOSE AS | |
| 32. | 8I-0547 | [1] | TUBE AS | |
| 33. | 8I-0548 | [2] | TUBE AS | |
| 34. | 8I-0549 | [1] | TUBE AS | |
| 35. | 8I-0550 | [1] | TUBE AS | |
| 36. | 8I-0546 | [1] | TUBE AS | |
| 37. | 8J-1256 | [2] | CLIP | |
| 38. | 4M-6425 | [16] | BOLT(5/16-18X1-IN) | |
| 39. | 6V-8918C | [8] | BOLT(5/16-18X1.25-IN) | |
| 40. | 8T-4224 | [17] | WASHER-HARD(8.8X16X2-MM THK) | |
| 41. | 160-2249G | | SLEEVE-ABRASION(86.22-IN) | |
| 42. | 7X-0290 | [2] | BOLT(3/8-16X3.5-IN) | |
| 43. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 44. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 45. | 077-8184 | [6] | CLAMP | |
| 46. | 6V-8185 | [3] | NUT(1/4-20-THD) | |
| 47. | 8T-4123 | [8] | WASHER(3.62X5.75X0.375-MM THK) | |
| 48. | 153-6241C | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-8989 | [1] | ELBOW | |
| 49. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 50. | 8M-2773 | [4] | CLIP(LOOP) | |
| 51. | 148-8328C | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8633 | [1] | CONNECTOR | |
| 52. | 6V-0852 | [1] | CAP-DUST | |
| 53. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 54. | 3J-7354 | [1] | SEAL-O-RING | |
| 55. | 160-2249G | | SLEEVE-ABRASION(66.93-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
