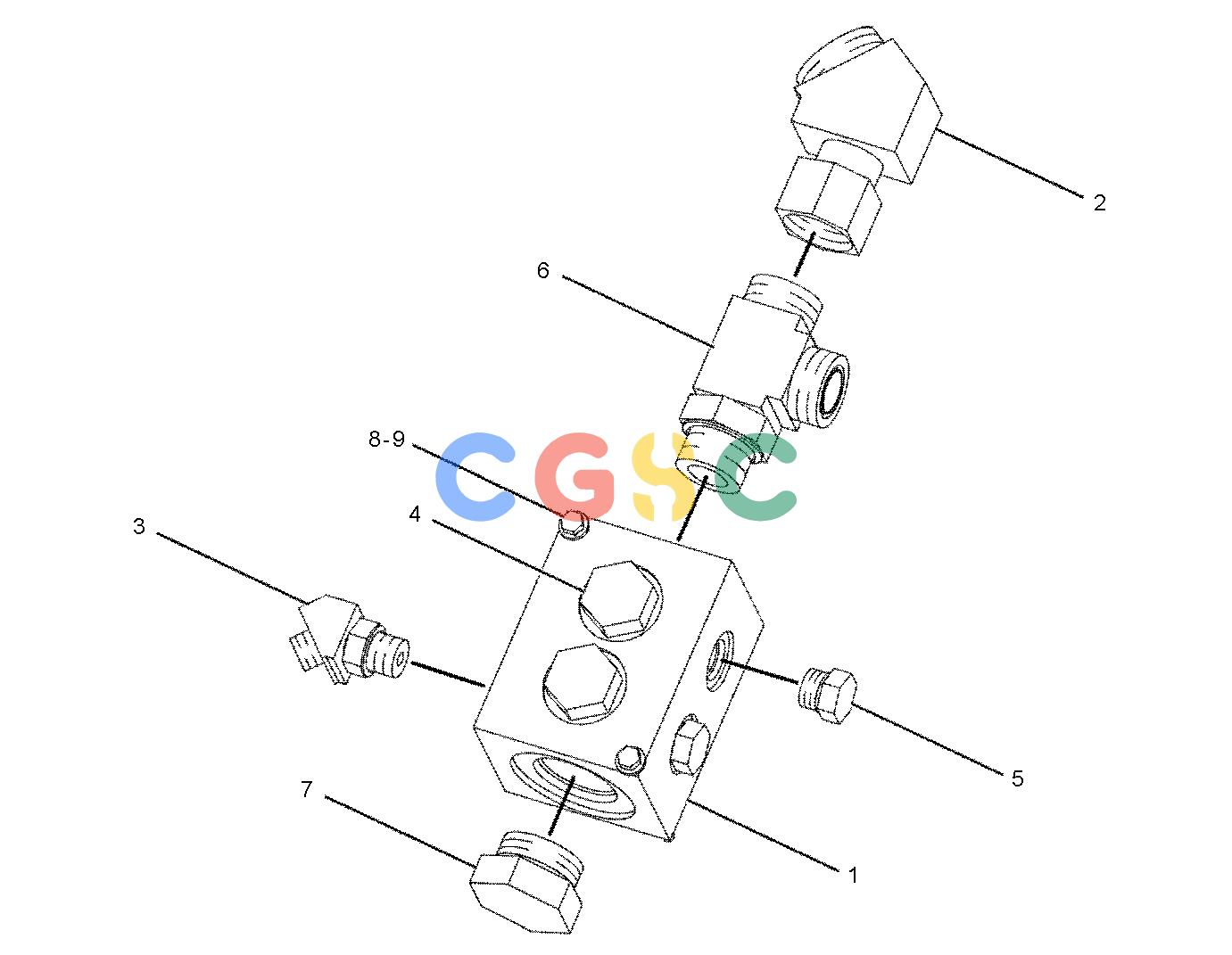

卡特零件查询（AP-1055D） 233-1870: MANIFOLD GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
269 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-0003 | [1] | MANIFOLD | |
| 2. | 177-1061 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 142-0038 | [1] | ELBOW | |
| 3. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 4. | | [2] | PLUG AS |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 5. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 6. | 148-8431 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8785 | [1] | TEE | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 7. | 164-5616 | [1] | PLUG AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 9S-6130 | [1] | PLUG | |
| 8. | 7X-7888M | [2] | BOLT(M6X1X90-MM) | |
| 9. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
