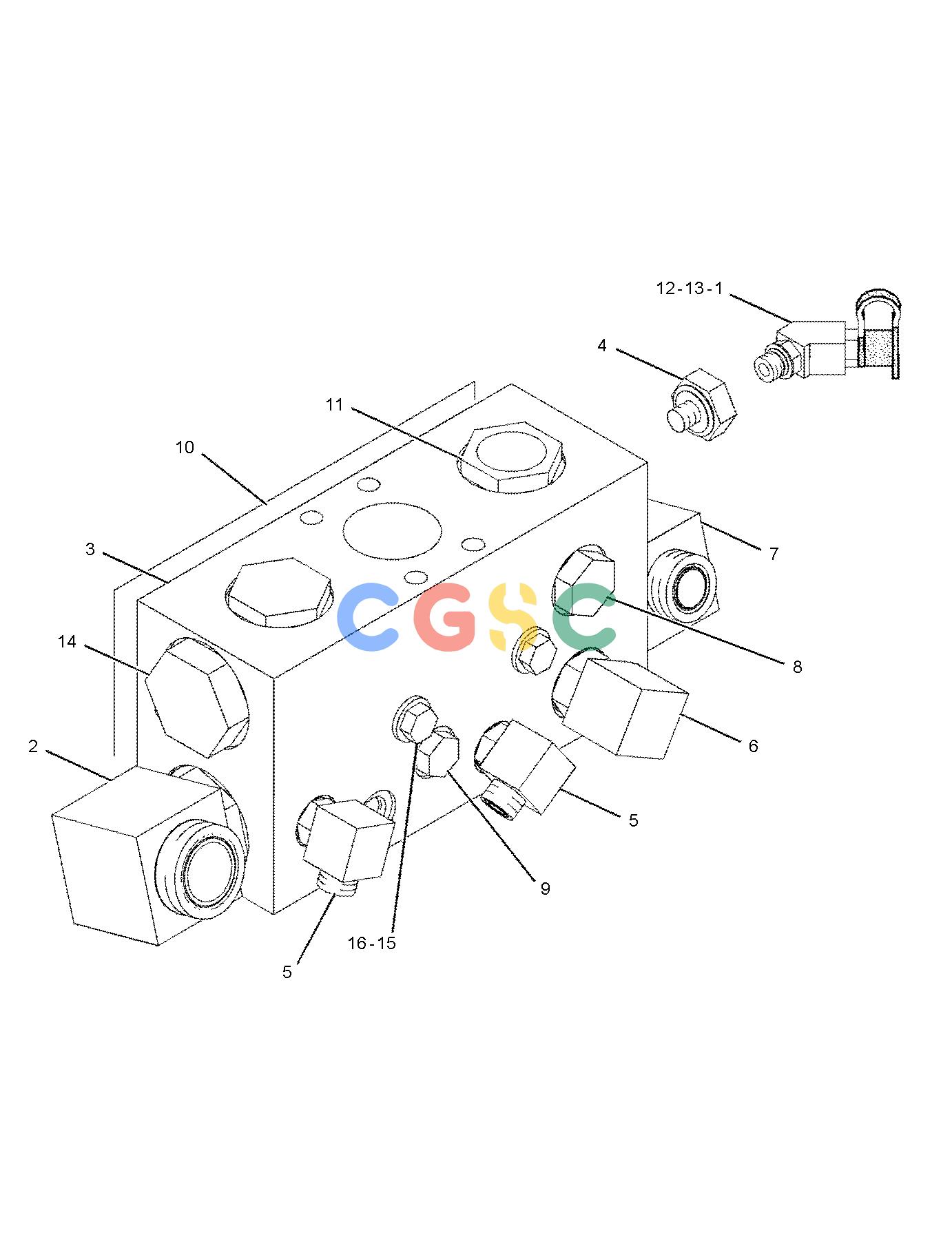

卡特零件查询（AP-1055D） 230-9605: MANIFOLD GP-COOLING

广数供应链运营团队, 16 02月, 2025，浏览： 476 次

Pos.	Part No	Qty	Parts name
1.	6V-0852	[1]	CAP-DUST
2.	204-9815	[1]	ELBOW AS
	6K-6307	[1]	SEAL-O-RING
	8T-0315	[1]	SEAL-O-RING
	8T-1682	[1]	ELBOW
3.	245-3505	[1]	VALVE GP-COOLER BYPASS
	2S-4078	[1]	SEAL-O-RING
4.	148-8309	[1]	ADAPTER AS
	2P-8421	[1]	ADAPTER-O-RING
	3D-2824	[1]	SEAL-O-RING
5.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
6.	148-8381	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-5429	[1]	ELBOW
7.	148-8391	[1]	ELBOW AS
	2S-4078	[1]	SEAL-O-RING
	5K-9090	[1]	SEAL-O-RING
	8T-8987	[1]	ELBOW
8.		[1]	PLUG AS
	3D-2824	[1]	SEAL-O-RING
	9S-4183	[1]	PLUG(1-1/16-12-THD)
9.	148-8411	[1]	PLUG AS
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG(3/4-16-THD)
10.	263-8548	[1]	PLATE
11.	164-5555	[1]	ADAPTER AS
	2S-4078	[1]	SEAL-O-RING
	4S-6679	[1]	ADAPTER
12.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
13.	165-4931	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8077	[1]	ELBOW
14.	174-1530	[1]	PLUG AS
	1N-5998	[1]	PLUG
	6K-6307	[1]	SEAL-O-RING
15.	8T-4223	[2]	WASHER-HARD(13.5X25.5X3-MM THK)
16.	8T-5041M	[2]	BOLT(M12X1.75X120-MM)
	M		METRIC PART
