卡特零件查询（AP-1055D） 227-5104: MOTOR GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
785 次

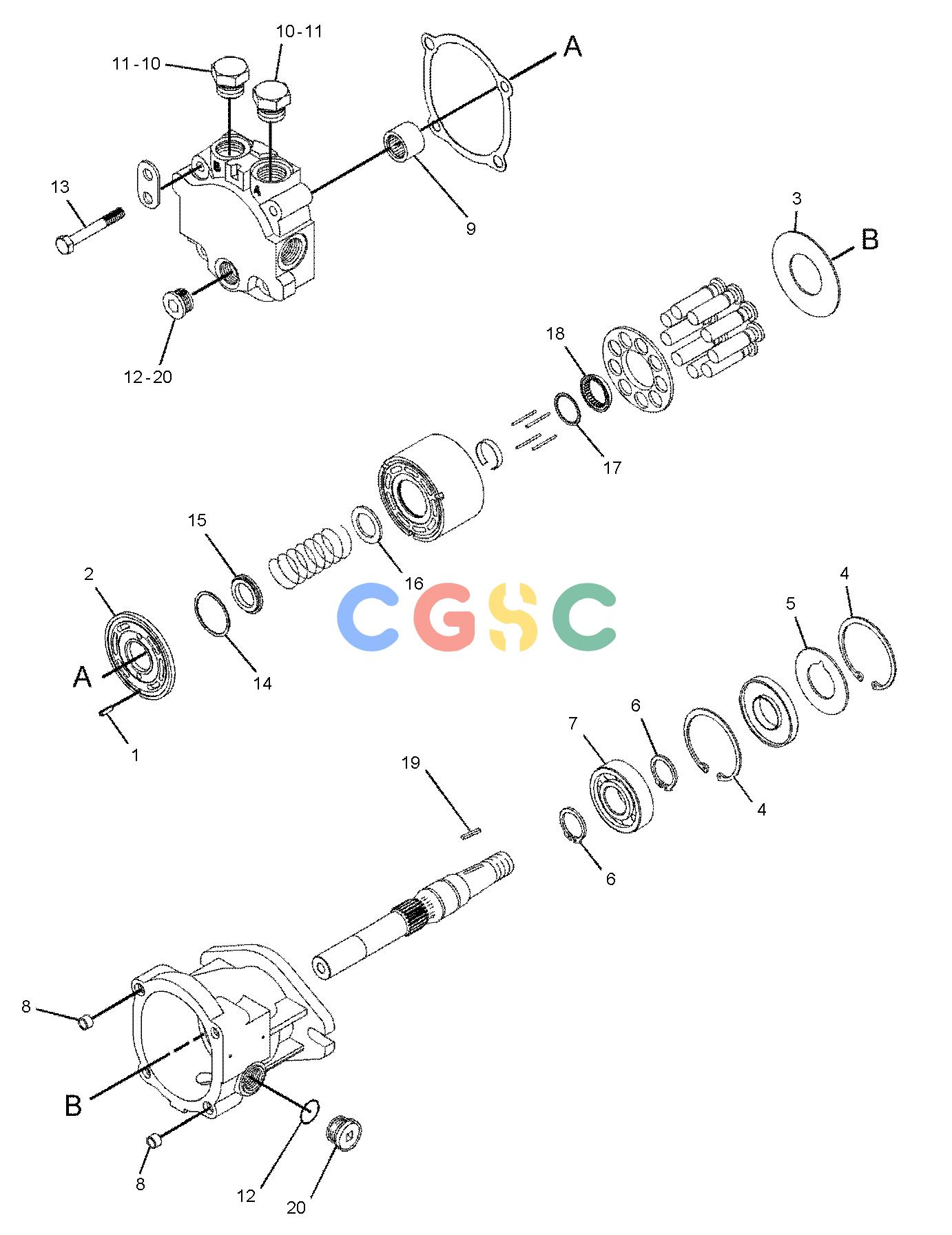

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2K-5986 | [1] | PIN-SPRING | |
| 2. | 122-8968 | [1] | PLATE-VALVE | |
| 3. | 1G-7358 | [1] | PLATE-THRUST | |
| 4. | 2H-5549 | [2] | RING-RETAINING | |
| 5. | 137-5117 | [1] | WASHER(36.02X71.76X2.16-MM THK) | |
| 6. | 4M-6990 | [2] | RING-SNAP | |
| 7. | 108-4578 | [1] | BEARING-ROLLER | |
| 8. | 7X-5478 | [2] | PIN-SPRING | |
| 9. | 1G-7368 | [1] | BEARING AS-NEEDLE | |
| 10. | 9S-8004 | [2] | PLUG(9/16-18-THD) | |
| 11. | 3J-1907 | [2] | SEAL-O-RING | |
| 12. | 2M-9780 | [2] | SEAL-O-RING | |
| 13. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| 14. | 7X-5469 | [1] | RING-RETAINING | |
| 15. | 7X-5470 | [1] | WASHER-SPECIAL | |
| 16. | 1G-7359 | [1] | WASHER(25.4X38.18X6.5-MM THK) | |
| 17. | 1G-7370 | [1] | WASHER-THRUST | |
| 18. | 1G-7364 | [1] | GUIDE | |
| 19. | 6L-8794 | [1] | KEY | |
| 20. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 231-5215 | [1] | KIT-PUMP REPAIR(PISTON MOTOR) | |
| | | | (INCLUDES WASHERS, THRUST WASHER, PINS, SPRING, GUIDE, RETAINER, PISTONS, RETAINING RING & CYLINDER BLOCK) |
| | 246-2235 | [1] | KIT-SEAL(PISTON MOTOR) | |
| | | | (INCLUDES O-RING SEALS, LIP SEAL & END CAP GASKET) |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
