卡特零件查询（AP-1055D） 230-9602: PUMP & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
934 次

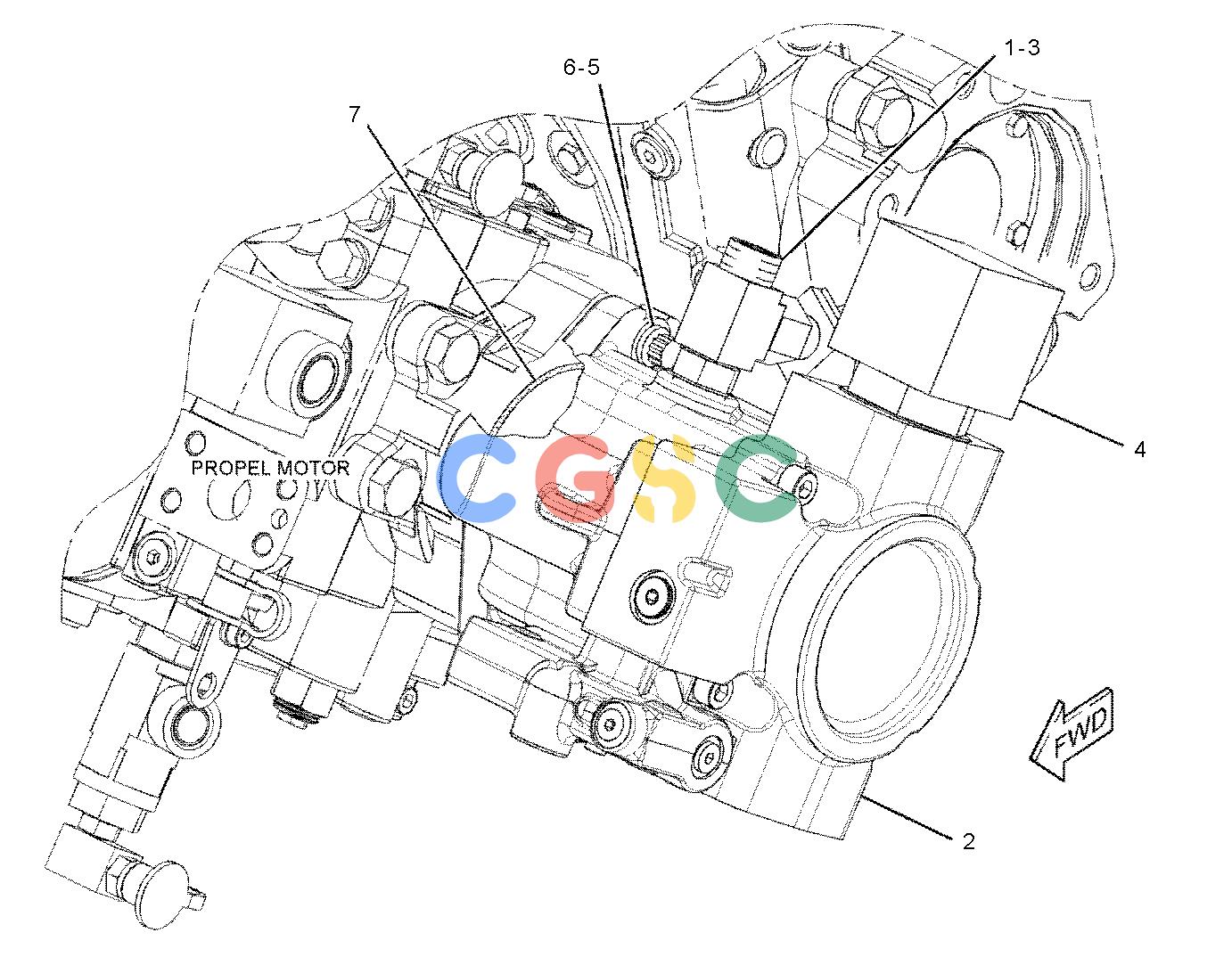

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 212-1336 | [1] | TEE AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8783 | [1] | TEE-FACE SEAL | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 2. | 230-9385Y | [1] | PUMP GP-PISTON(AUXILIARY) | |
| 3. | 153-6256 | [1] | ELBOW AS | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8C-7563 | [1] | ELBOW | |
| 4. | 204-9815 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-1682 | [1] | ELBOW | |
| 5. | 8M-2530 | [2] | BOLT-12 POINT HEAD(1/2-13X1.25-IN) | |
| 6. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 107-3120 | [1] | SEAL-O-RING | |
| | Y | | SEPARATE ILLUSTRATION |
