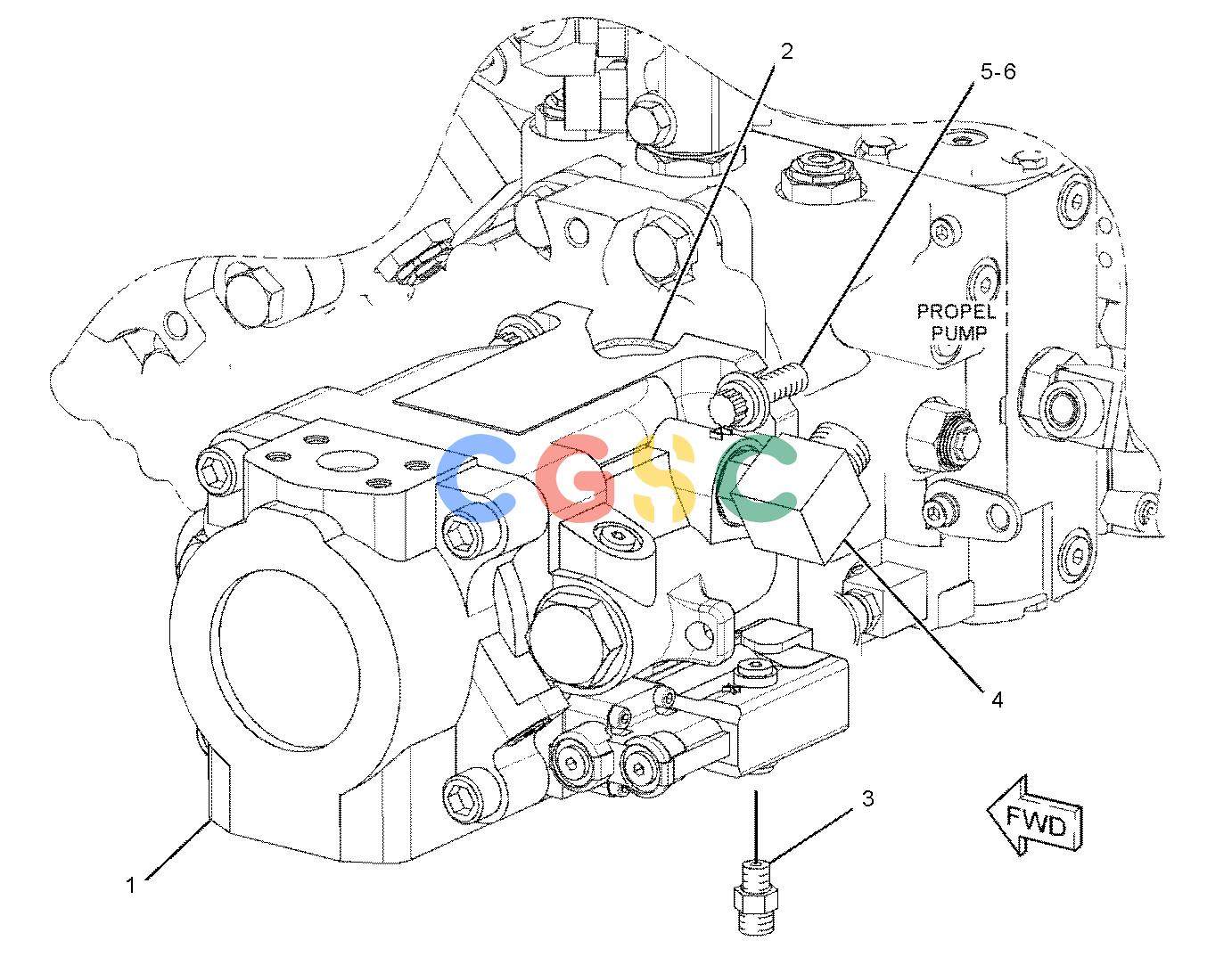

卡特零件查询（AP-1055D） 230-9657: PUMP & MTG GP-GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
334 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 230-9550Y | [1] | PUMP GP-PISTON(GENERATOR) | |
| 2. | 117-8801 | [1] | SEAL-O-RING | |
| 3. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 4. | 148-8390 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8626 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 5. | 4K-5175 | [4] | BOLT-12 POINT HEAD(1/2-13X1.5-IN) | |
| 6. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | 170-4717F | [1] | SEAL-O-RING | |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
