卡特零件查询（AP-1055D） 230-9623: PUMP & MTG GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
467 次

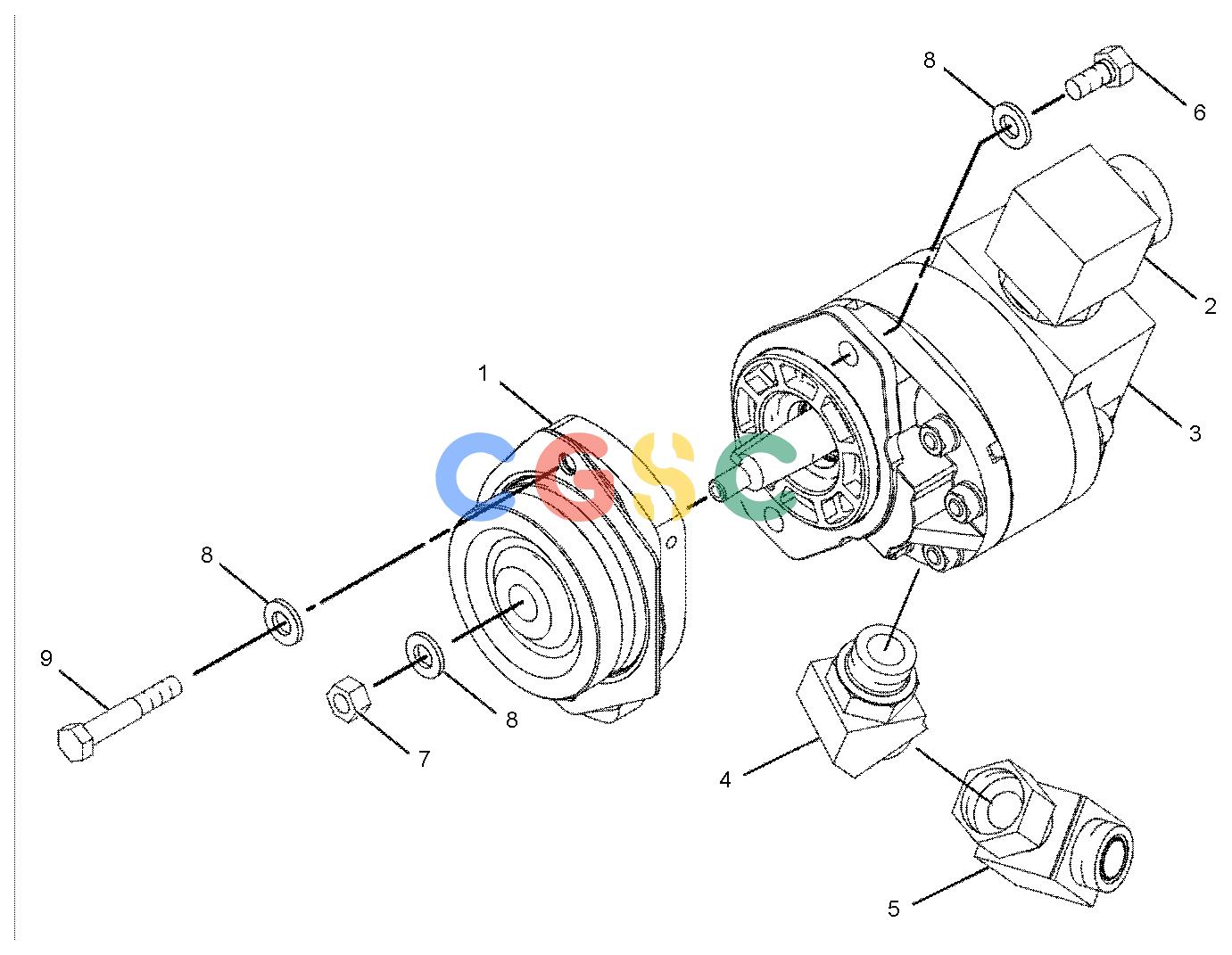

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 267-6486Y | [1] | DRIVE GP-ACCESSORY(HYDRAULIC FAN PUMP) | |
| 2. | 228-6387 | [1] | ELBOW AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | | [1] | ELBOW |
| 3. | 245-1145Y | [1] | PUMP GP-GEAR(HYDRAULIC FAN) | |
| 4. | 148-8355 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9005 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 5. | 148-8429 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9840 | [1] | TEE-SWIVEL | |
| 6. | 5P-2228 | [2] | BOLT(1/2-13X1-IN) | |
| 7. | 6B-6684 | [1] | NUT-FULL(1/2-20-THD) | |
| 8. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 8T-4648M | [2] | BOLT(M12X1.75X70-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
