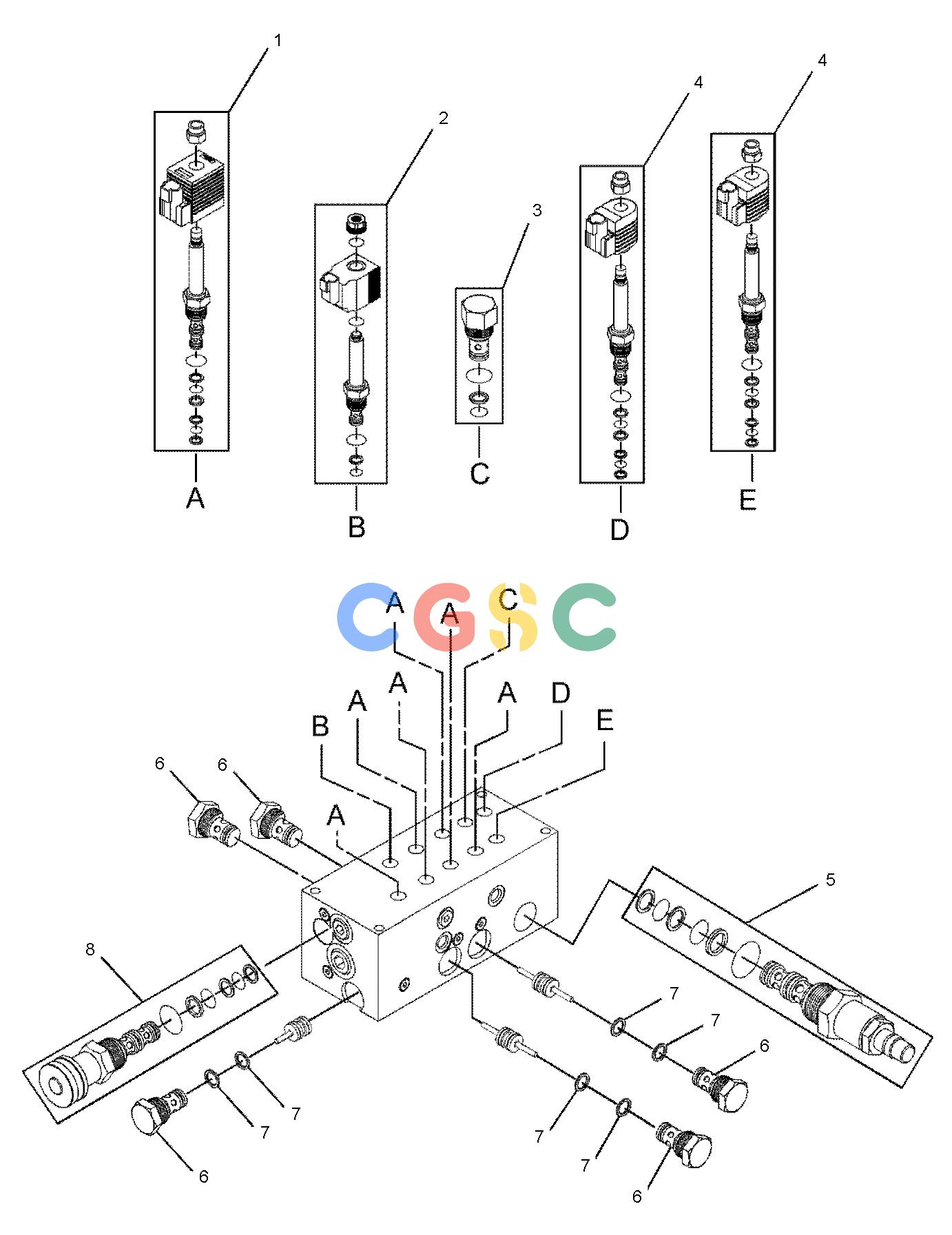

卡特零件查询（AP-1055D） 272-1594: VALVE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 260-6151 | [6] | KIT-SOLENOID VALVE | |
| 2. | 260-6154 | [1] | KIT-VALVE | |
| 3. | 260-6155 | [1] | KIT-FLOW CONTROL VALVE | |
| 4. | 275-2287 | [2] | VALVE GP-SOLENOID | |
| | | | (EACH INCLUDES) |
| | 230-4082 | [1] | NUT-SPECIAL | |
| | 255-6417 | [1] | KIT-SEAL | |
| | | | (INCLUDES RINGS) |
| | 255-8036 | [1] | COIL-SOLENOID | |
| 5. | 275-2289 | [1] | VALVE GP-PRESSURE REDUCING | |
| | 245-6141 | [1] | KIT-SEAL | |
| | | | (INCLUDES RINGS) |
| 6. | 260-6158 | [5] | KIT-CHECK VALVE | |
| 7. | 112-8429 | [6] | RING-BACKUP | |
| 8. | 275-2290 | [1] | VALVE-PRESSURE | |
| | 245-6141 | [1] | KIT-SEAL | |
| | | | (INCLUDES RINGS) |
