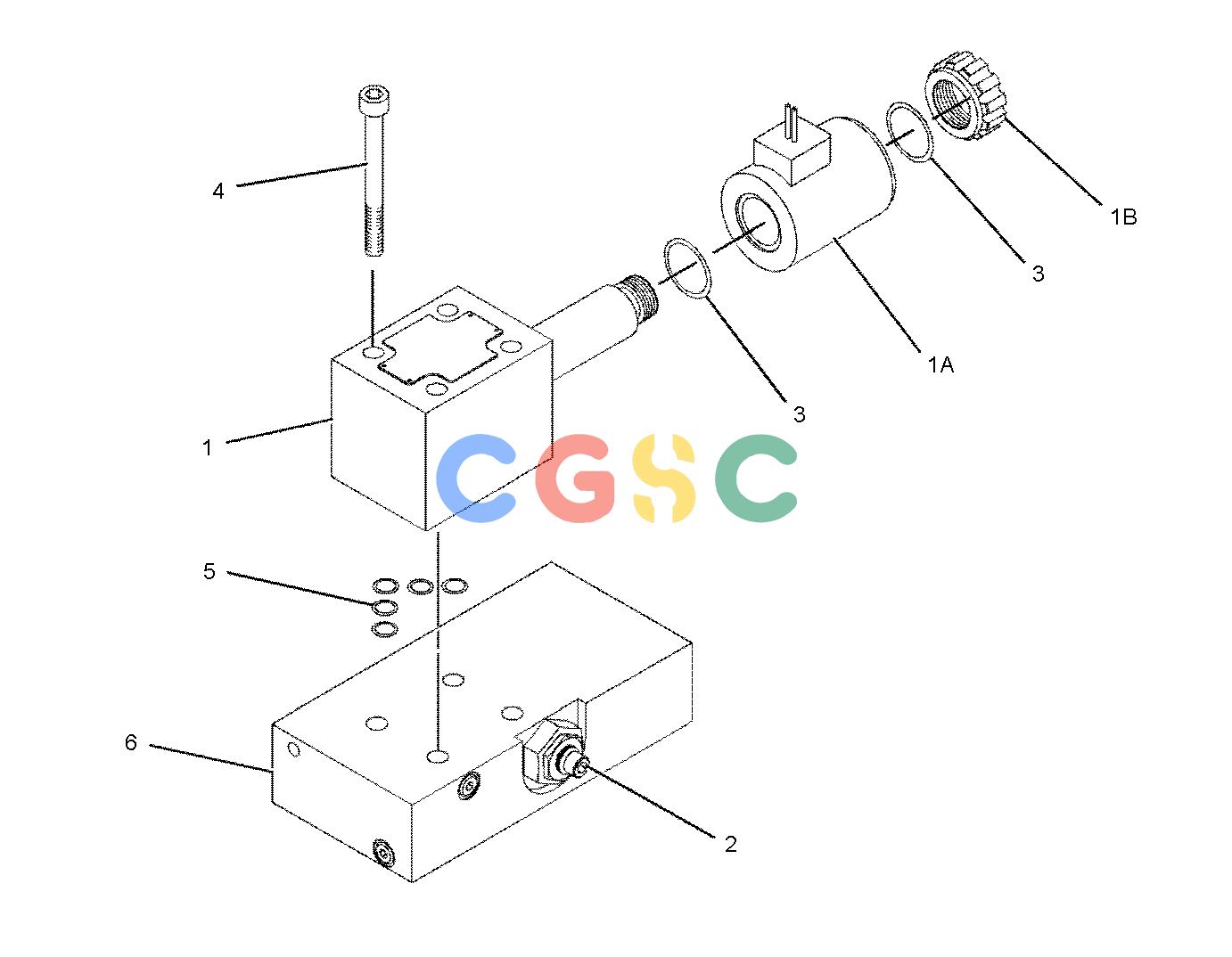

卡特零件查询（AP-1055D） 251-4844: VALVE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
260 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 271-5687J | [1] | VALVE GP-CONTROL(GENERATOR) | |
| 1A. | 271-5689 | [1] | COIL-SOLENOID(24-VOLT) | |
| 1B. | 271-5690 | [1] | KIT-NUT(SOLENOID VALVE) | |
| 2. | 254-0779H | [1] | VALVE AS-NEEDLE | |
| 3. | JZ | [2] | SEAL-O-RING |
| 4. | Z | [4] | BOLT |
| 5. | JZ | [5] | SEAL-O-RING |
| 6. | Z | [1] | MANIFOLD |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 254-0777J | [1] | KIT-SEAL(GENERATOR CONTROL VALVE) | |
| | 254-0780H | [1] | KIT-SEAL(NEEDLE VALVE) | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | Z | | NOT SERVICED SEPARATELY |
