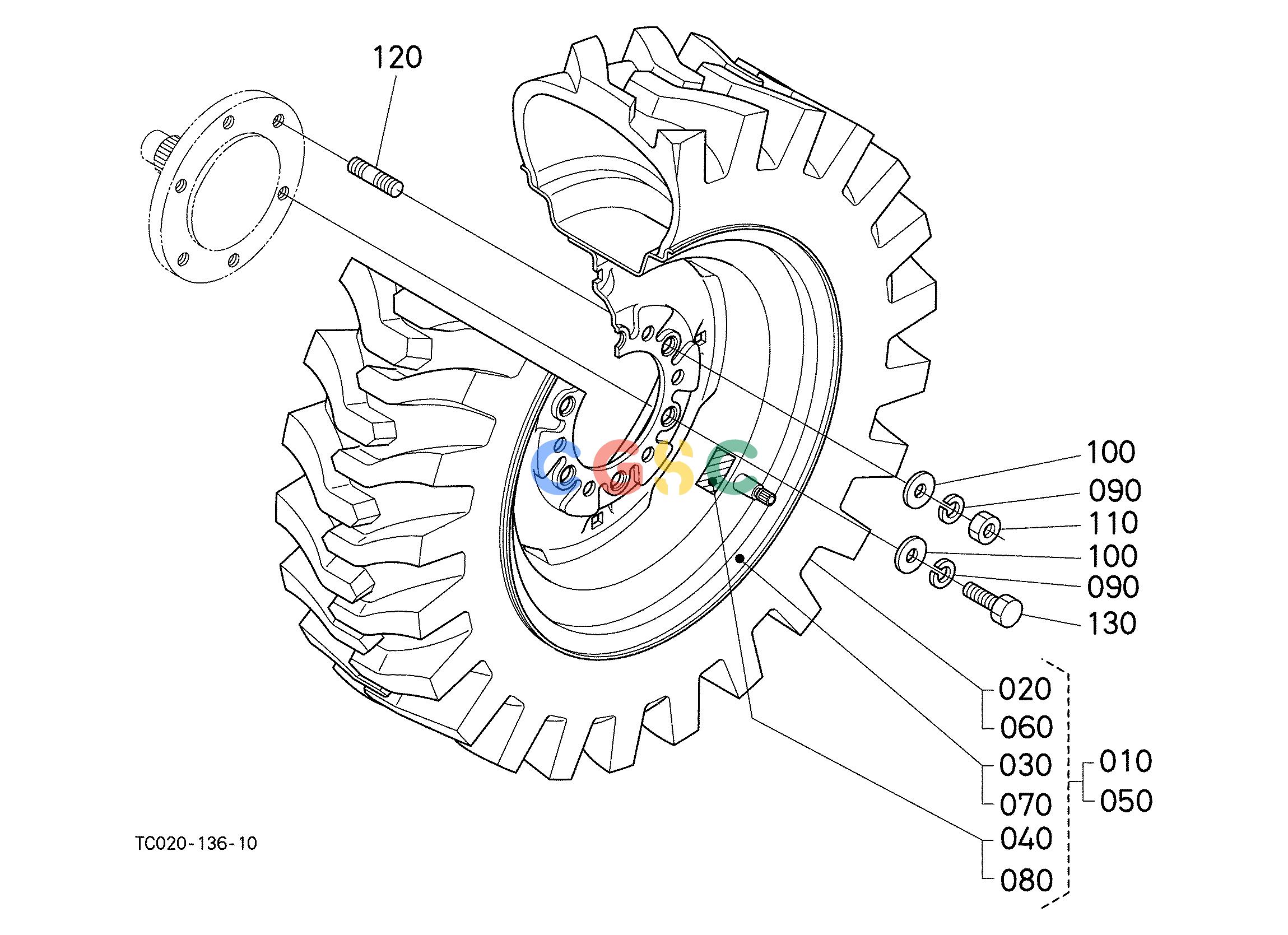

久保田零件查询P10108 FRONT WHEEL (27 8.50-15) [OPTION] FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
400 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3A99911400
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 020. |
6700217630
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 030. |
3A99911410
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
3A99911420
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 050. |
3A99911430
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 060. |
6700217630
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 070. |
3A99911410
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 080. |
3A99911440
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 090. |
0451260140
|
[12] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 100. |
0401360140
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 110. |
0217650140
|
[4] |
NUT
|
0.0308(lbs); 0.014
|
| 120. |
TA15049160
|
[4] |
STUD WHEEL
|
0.1100(lbs); 0.050
|
| 130. |
0117351430
|
[8] |
BOLT
|
0.1144(lbs); 0.052
|
