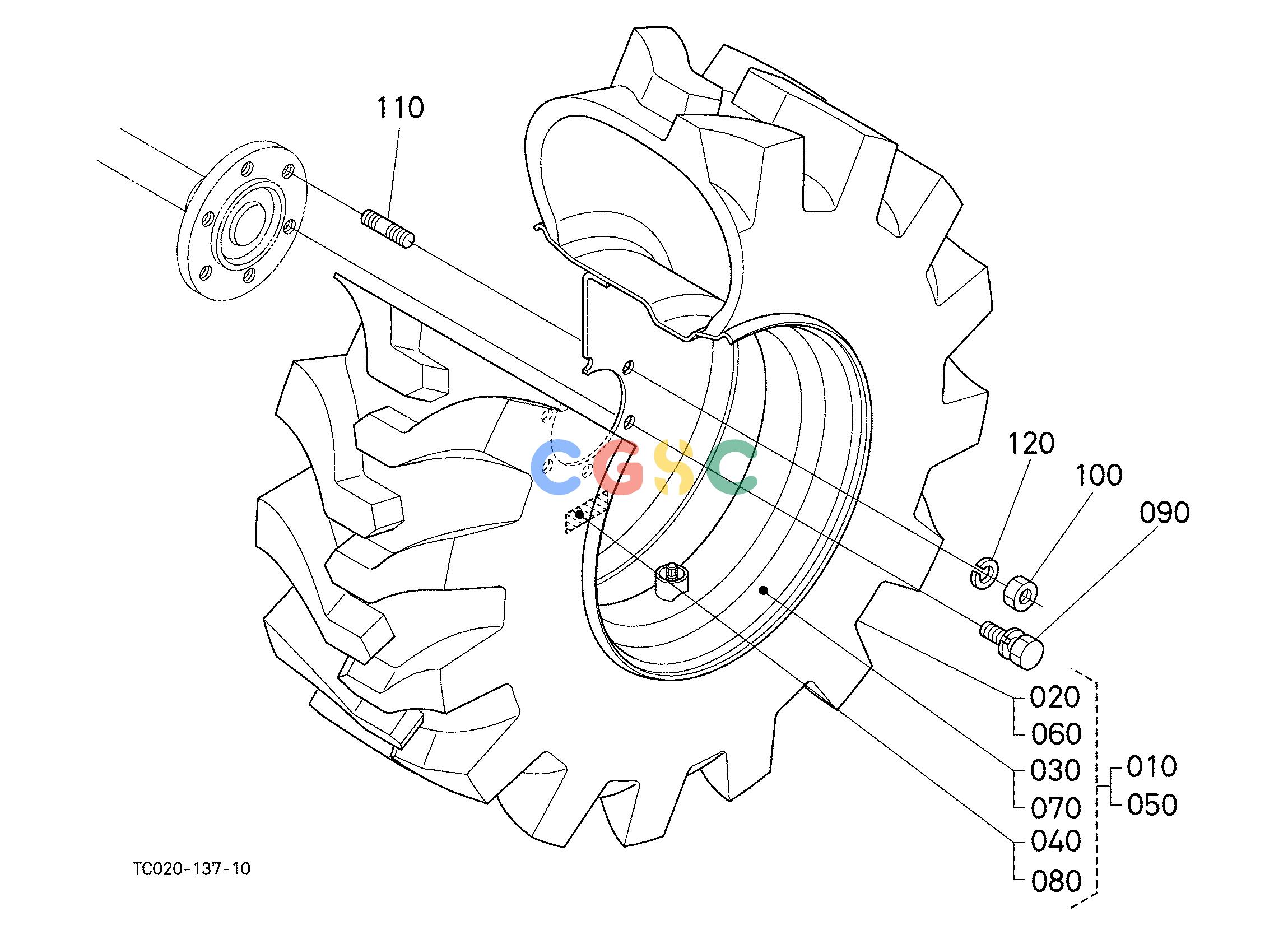

久保田零件查询P11005 REAR WHEEL (15-19.5) [OPTION] FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC02050850
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 020. |
3275150830
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 030. |
TC02050840
|
[1] |
WHEEL
|
91.9600(lbs); 41.800
|
| 040. |
TC02050860
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 050. |
TC02050870
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 060. |
3275150830
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 070. |
TC02050840
|
[1] |
WHEEL
|
91.9600(lbs); 41.800
|
| 080. |
TC02050880
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 090. |
0103351630
|
[8] |
BOLT
|
0.1980(lbs); 0.090
|
| 100. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 110. |
0151751632
|
[4] |
STUD
|
0.1672(lbs); 0.076
|
| 120. |
0451260160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
