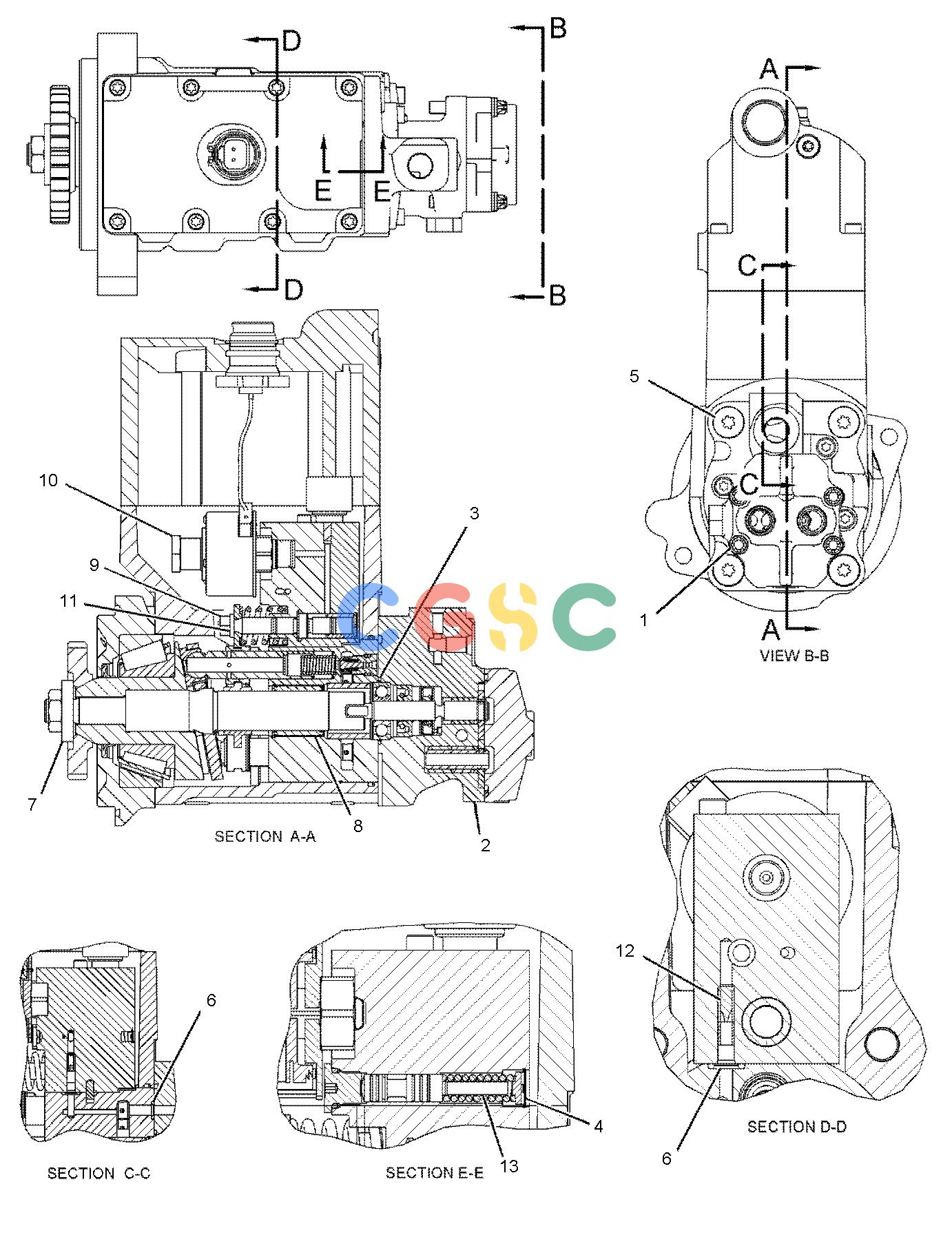

卡特零件查询（AP-1055D） 319-0677: PUMP GP-UNIT INJECTOR HYD
广数供应链运营团队, 16 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 313-4620M | [3] | SCREW-PAN HEAD(M5X0.8X25-MM) | |
| 2. | 318-6357Y | [1] | PUMP GP-FUEL TRANSFER | |
| 3. | 179-8128 | [1] | SEAL-O-RING(FUEL SYSTEM) | |
| 4. | 262-0284 | [1] | RING-RETAINING | |
| 5. | 228-5897M | [4] | BOLT-TORX(M8X1.25X136.7-MM) | |
| 6. | 239-2402 | [4] | SEAL-O-RING | |
| 7. | 1F-7960 | [1] | WASHER(13.5X32X6-MM THK) | |
| 8. | 1N-8062 | [1] | BEARING AS-NEEDLE | |
| 9. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 10. | 8C-6711 | [1] | NUT-RETAINER(1/2-20-THD) | |
| 11. | 9X-8267 | [1] | WASHER(6.6X12X2-MM THK) | |
| 12. | 153-7036 | [1] | SPOOL | |
| 13. | 260-5716 | [1] | SPOOL | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 326-1006 | [1] | KIT-FUEL TRANSFER PUMP | |
| | | | (INCLUDES PUMP, BOLT, SCREW, & SEALS) |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
