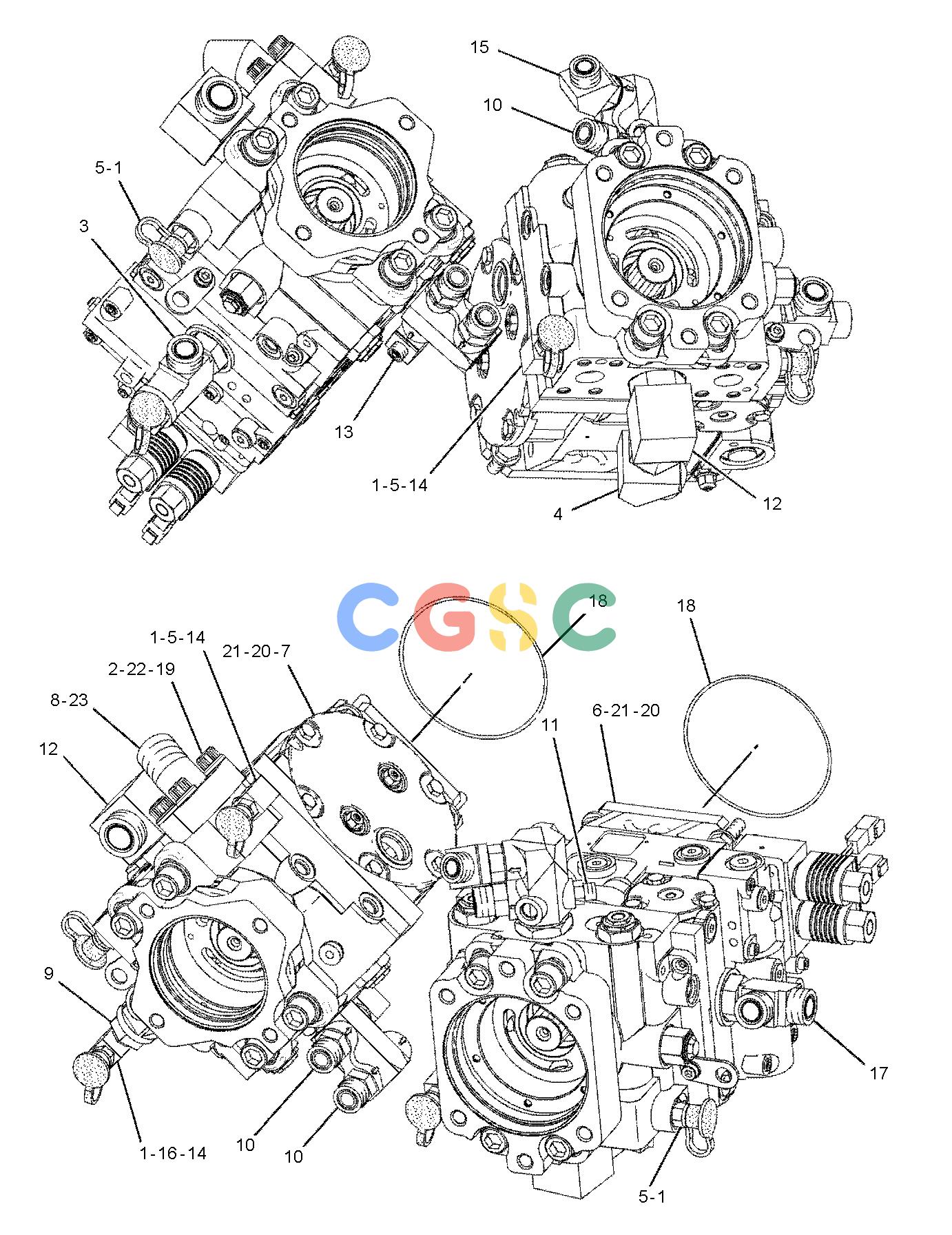

卡特零件查询（AP-1055D） 255-4487: PUMP GP-DUAL PROPEL

广数供应链运营团队, 16 02月, 2025，浏览： 756 次

Pos.	Part No	Qty	Parts name
1.	6V-0852	[5]	CAP-DUST
2.	124-4288	[2]	FLANGE-SPLIT
3.	172-5277	[1]	TEE AS
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	8T-8901	[1]	TEE-O-RING PORT
4.	177-1061	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	142-0038	[1]	ELBOW
5.	187-3547	[4]	COUPLER AS-QUICK DISCONNECT
6.	230-9378Y	[1]	PUMP GP-PISTON(PROPEL, LH)
7.	230-9379Y	[1]	PUMP GP-PISTON(PROPEL, RH)
8.	250-1456	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	138-7796	[1]	ELBOW
9.	148-8309	[1]	ADAPTER AS
	2P-8421	[1]	ADAPTER-O-RING
	3D-2824	[1]	SEAL-O-RING
10.	148-8315	[3]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8642	[1]	CONNECTOR
	7J-9108	[1]	SEAL-O-RING
11.	148-8325	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8641	[1]	CONNECTOR
12.	148-8357	[2]	ELBOW AS
			(EACH INCLUDES)
	5K-9090	[1]	SEAL-O-RING
	6V-9008	[1]	ELBOW
	7M-8485	[1]	SEAL-O-RING
13.	148-8368	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8627	[1]	ELBOW
14.	150-3065	[3]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-0484	[1]	ELBOW
15.	155-3504	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-9003	[1]	ELBOW
	7J-9108	[1]	SEAL-O-RING
16.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
17.	164-5574	[1]	TEE AS
	6V-8784	[1]	TEE-FACE SEAL
	6V-9746	[2]	SEAL-O-RING
	3D-2824	[1]	SEAL-O-RING
18.	7J-6285	[2]	SEAL-O-RING
19.	5P-7972	[4]	BOLT-12 POINT HEAD(7/16-14X1.75-IN)
20.	8T-4223	[8]	WASHER-HARD(13.5X25.5X3-MM THK)
21.	8T-4956M	[8]	BOLT(M12X1.75X35-MM)
22.	8T-5360	[4]	WASHER(12X22.5X2.5-MM THK)
23.	4J-0520	[1]	SEAL-O-RING
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
