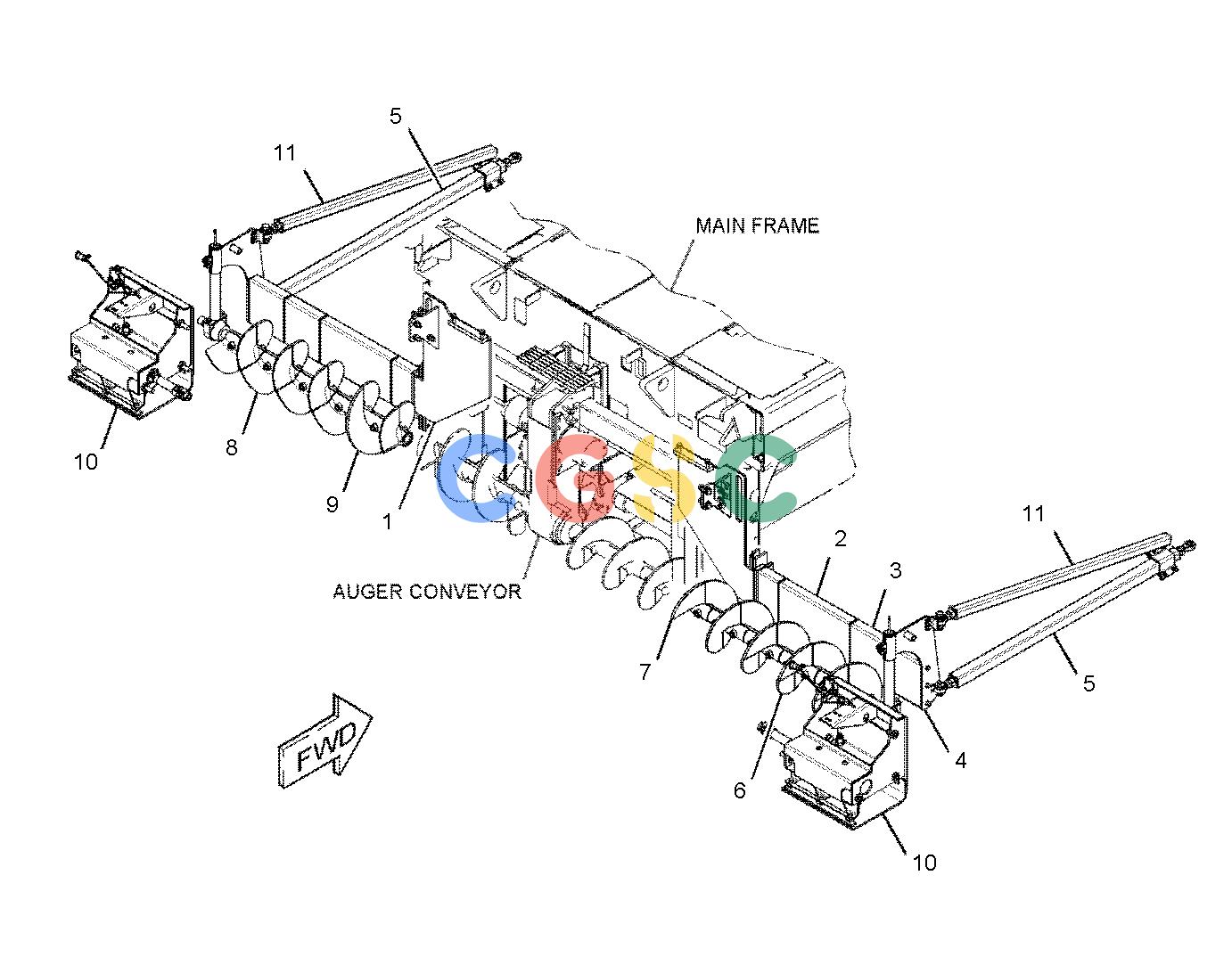

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 116-9509Y | [2] | BEARING GP-AUGER | ||
| 315-1101Y | [2] | BRACE GP | ||
| 106-3483Y | [2] | EXTENSION AR(DIESEL HEAT, 28-IN) | ||
| 199-4206Y | [3] | EXTENSION GP-AUGER(12-IN, LH) | ||
| 198-8287Y | [3] | EXTENSION GP-AUGER(12-IN, RH) | ||
| 241-9358Y | [1] | EXTENSION GP-MAIN FRAME(ADJUSTABLE HEIGHT) | ||
| 231-1982Y | [4] | EXTENSION GP-MAIN FRAME(12-IN) | ||
| 231-1956Y | [2] | SUPPORT GP-FRAME | ||
| 246-3318 | [1] | TUBE AS | ||
| 8I-0922 | [1] | WRENCH | ||
| Y | SEPARATE ILLUSTRATION | |||
