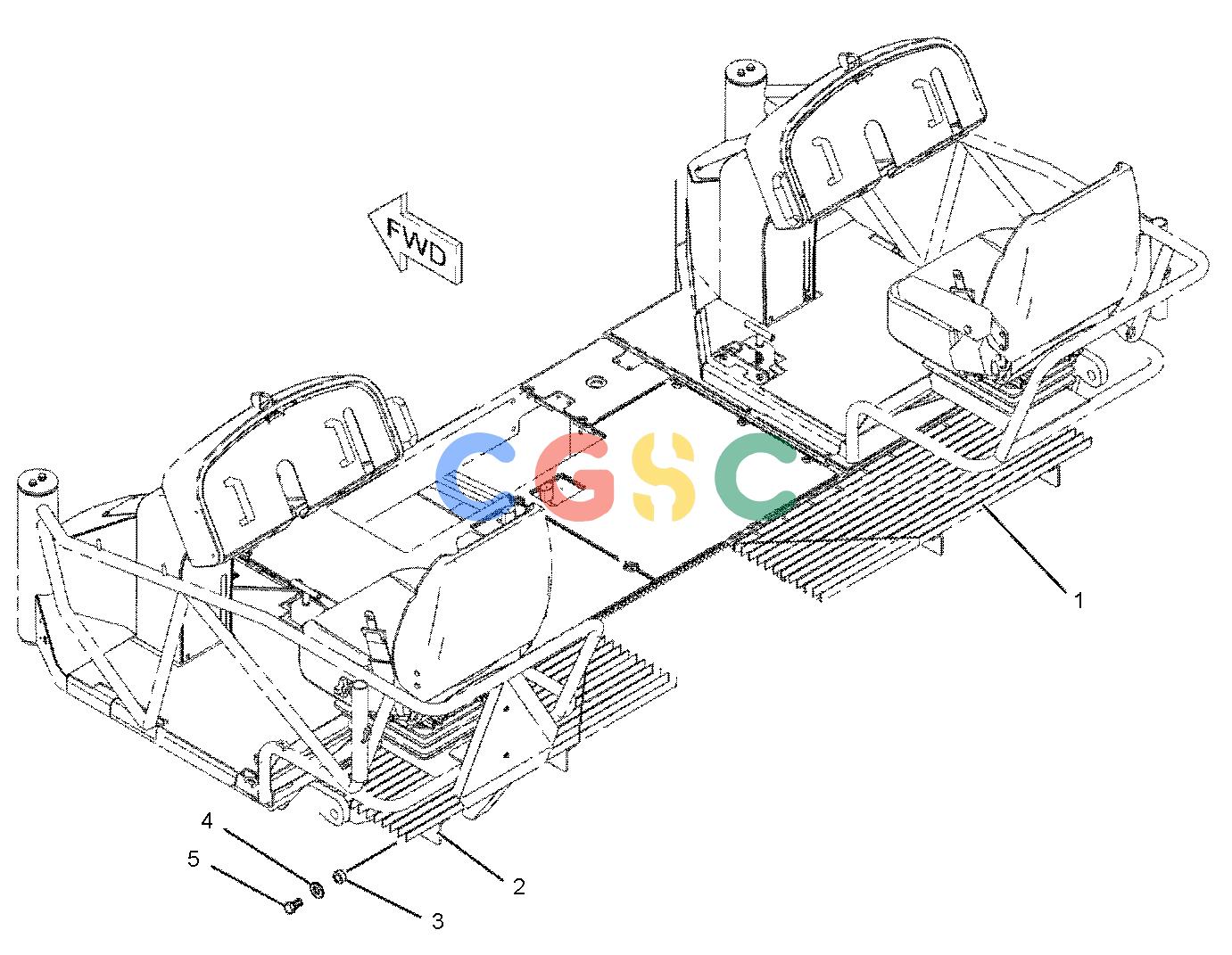

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 247-1903 | [1] | PLATFORM AS(RH) | |
| 2. | 247-1904 | [1] | PLATFORM AS(LH) | |
| 3. | 258-6607 | [8] | SPACER(8.4X14X17-MM THK) | |
| 4. | 8T-4222 | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 5. | 8T-7547M | [8] | BOLT(M8X1.25X30-MM) | |
| M | METRIC PART | |||
广数供应链运营团队, 16 02月, 2025，浏览： 951 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 247-1903 | [1] | PLATFORM AS(RH) | |
| 2. | 247-1904 | [1] | PLATFORM AS(LH) | |
| 3. | 258-6607 | [8] | SPACER(8.4X14X17-MM THK) | |
| 4. | 8T-4222 | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 5. | 8T-7547M | [8] | BOLT(M8X1.25X30-MM) | |
| M | METRIC PART | |||
