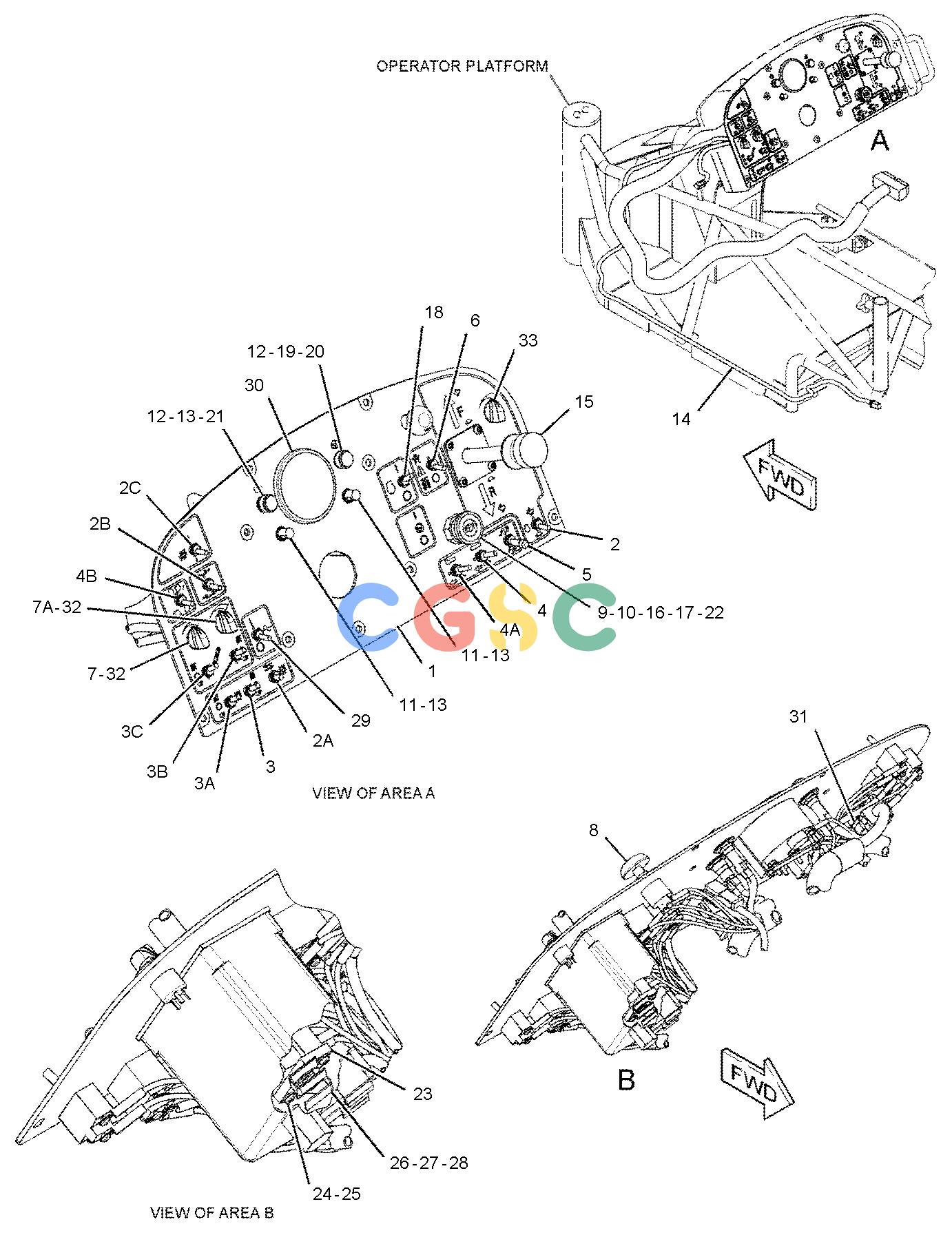

| 1. | 230-1234 | [1] | PLATE(OPERATOR PANEL) | |
| 2. | 9G-0011 | [1] | SWITCH AS-TOGGLE(THROTTLE) | |
| 2A. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER REVERSE) | |
| 2B. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TRUCK HITCH) | |
| 2C. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER RAISE, LOWER) | |
| 3. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, RH) | |
| 3A. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, LH) | |
| 3B. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, RH) | |
| 3C. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, LH) | |
| 4. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER CONTROL, RH) | |
| 4A. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER CONTROL, LH) | |
| 4B. | 246-8912 | [1] | SWITCH GP-TOGGLE(HOPPER HOIST) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 5. | 246-6191 | [1] | SWITCH AS(SCREED CONTROL) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 6. | 3T-3826 | [1] | SWITCH AS-TOGGLE(PROPEL MODE) | |
| | 3L-8187 | [12] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [12] | SCREW-MACHINE(6-32X0.25-IN) | |
| 7. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, LH) | |
| 7A. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, RH) | |
| | | | (EACH POTENTIOMETER AS INCLUDES) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(25-CM) | |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.3-M EACH) | |
| 8. | 3T-2357 | [1] | SWITCH GP-PUSH BUTTON(HORN) | |
| | 2H-3922 | [1] | LOCKWASHER | |
| | 3B-4501 | [1] | LOCKWASHER | |
| | 5L-7200 | [1] | SCREW(8-32X0.375-IN) | |
| | 6V-8363 | [2] | SCREW(10-32X0.312-IN) | |
| | 6V-8370 | [1] | NUT-HEX(3/4-32-THD) | |
| | 7T-9515 | [1] | KNOB-HORN | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 9X-0199 | [1] | BOOT-SWITCH | |
| 9. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(PARKING BRAKE) | |
| 10. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| 11. | 7G-9730 | [2] | LAMP AS(120-VOLT, 3-WATT)(CONSOLE) | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 12. | 9D-3127 | [2] | BASE AS-INDICATOR LIGHT | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 13. | 7N-5876 | [3] | LAMP(24-VOLT, 0.2-AMPERE)(CONSOLE) | |
| 14. | 229-8248 | [1] | HARNESS AS-PANEL(INSTRUMENT) | |
| | 8T-8729 | [20] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-4391 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2260 | [4] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [23] | PLUG-SEAL | |
| | 102-8803 | [2] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8804 | [2] | KIT-RECEPTACLE(4-PIN) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-4813 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| | 160-2246G | | SLEEVE-ABRASION(56.2-IN) | |
| | 8T-8730 | [88] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-5618 | [6] | TERMINAL-BLADE(10-GA TO 12-GA) | |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 131-1470 | [11] | TERMINAL AS | |
| | | | (EACH INCLUDES) |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(4-CM) | |
| | 5P-2321 | [51] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 2L-8066 | [1] | TERMINAL-RING(10-GA TO 12-GA, NO. 10 SCREW) | |
| | 2L-8076 | [1] | TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW) | |
| | 5P-1475 | [4] | TERMINAL-FORK(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| 15. | 132-3090Y | [1] | LEVER GP-PROPEL | |
| 16. | 116-5270 | [1] | LAMP(24-VOLT)(PARKING BRAKE) | |
| 17. | 116-5274 | [1] | KNOB(PARKING BRAKE) | |
| 18. | 081-7041 | [1] | SWITCH AS-TOGGLE(ENGINE ON, OFF) | |
| 19. | 116-5269 | [1] | LAMP(24-VOLT)(OPERATOR STATION) | |
| 20. | 087-0812 | [1] | LENS-CLEAR(OPERATOR STATION) | |
| 21. | 9D-2868 | [1] | LENS-RED | |
| 22. | 116-5277C | [2] | BLOCK(CONTACT) | |
| 23. | 199-6205 | [1] | PLATE | |
| 24. | 4B-5324 | [2] | WASHER(3.9X9.6X1.2-MM THK) | |
| 25. | 9X-6258 | [2] | SCREW-MACHINE(6-32X0.5-IN) | |
| 26. | 116-0118 | [2] | CLIP | |
| 27. | 4B-4274 | [2] | WASHER(5.5X13X1.2-MM THK) | |
| 28. | 6D-3031 | [2] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 29. | 4D-1836 | [1] | SWITCH-TOGGLE(VIBRATORY CONTROL) | |
| 30. | 231-8099 | [1] | SPEEDOMETER AS | |
| | 4B-2043 | [6] | NUT(8-32-THD) | |
| | 9B-7233 | [6] | LOCKWASHER | |
| | 115-1748 | [1] | LAMP(24-VOLT, 3-WATT)(SPEEDOMETER) | |
| 31. | 112-4735 | [1] | CONTROL GP-DIODE BLOCK | |
| 32. | 316-5717 | [3] | KNOB AS(POTENTIOMETER) | |
| 33. | 270-8384 | [1] | POTENTIOMETER AS(ENGINE SPEED) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(25-CM) | |
| | 5P-5623D | | WIRE-ELECTRICAL(16-GA, BLACK)(0.3-M EACH) | |
| | 6V-2689D | | TUBE-HEAT SHRINK(6.35-MM DIA)(0.1-M) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
