卡特零件查询（AP-1055D） 197-5295: PLATFORM GP
广数供应链运营团队, 16 02月, 2025，浏览：
630 次

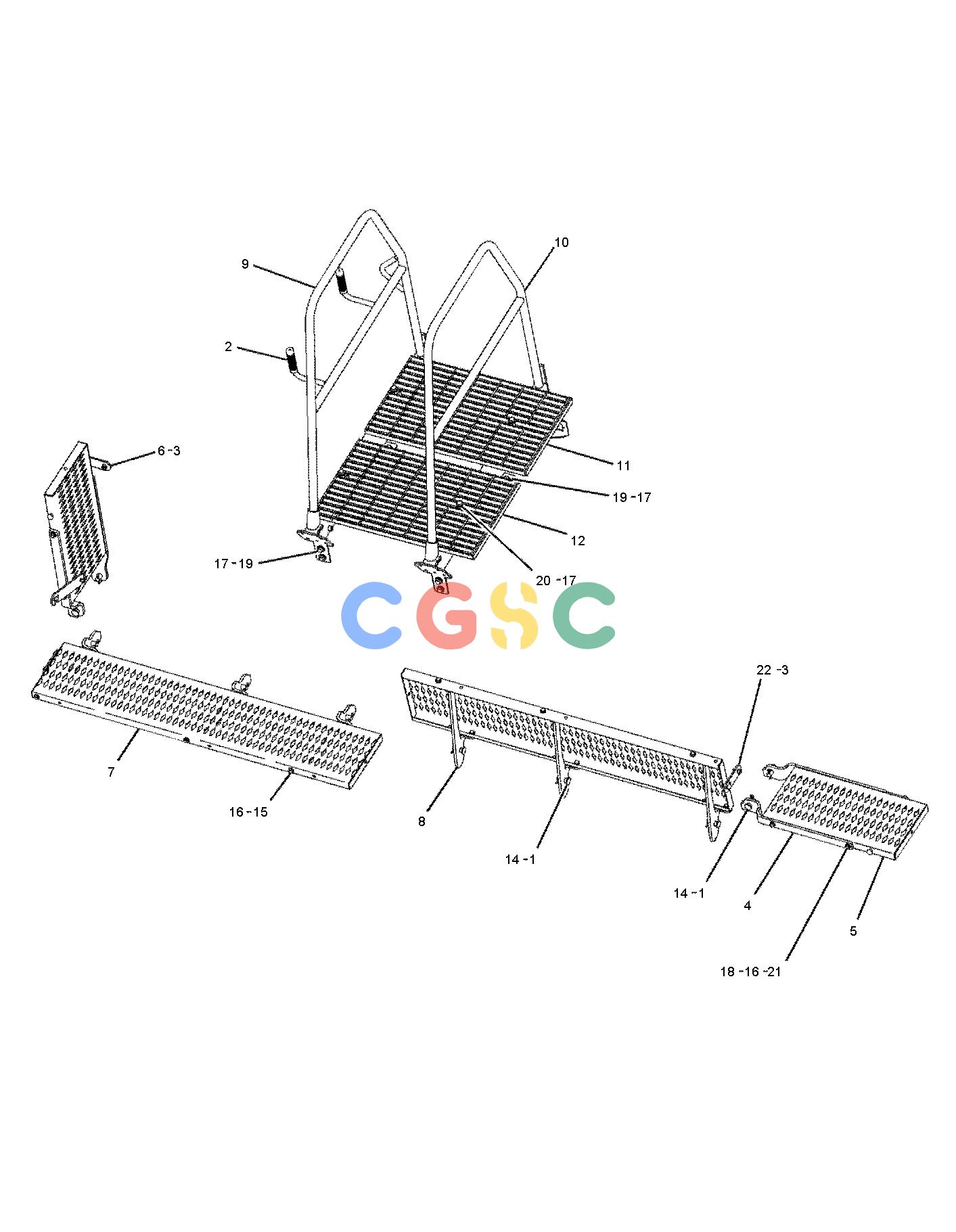

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-4629 | [10] | PIN-COTTER | |
| 2. | 7X-9918 | [2] | GRIP-HANDLE | |
| 3. | 190-5083 | [4] | BOLT-SPECIAL | |
| 4. | 193-1301 | [2] | BRACKET | |
| 5. | 193-1303 | [2] | PLATFORM AS | |
| | | | (EACH INCLUDES) |
| | 5P-8245 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | 6V-7379J | [2] | RIVET | |
| 6. | 193-1304C | [2] | PLATE | |
| 7. | 214-0664C | [2] | WALKWAY AS | |
| | | | (EACH INCLUDES) |
| | 6V-7379J | [1] | RIVET | |
| | 5P-8245 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 215-3367C | [6] | BRACKET AS | |
| 9. | 251-1574 | [1] | HANDRAIL AS(LH) | |
| 10. | 251-1575 | [1] | HANDRAIL AS(RH) | |
| 11. | 197-9744 | [1] | PLATFORM AS(FRONT) | |
| 12. | 197-9745 | [1] | PLATFORM AS(REAR) | |
| 14. | 1S-5395 | [10] | PIN | |
| 15. | 8T-2502C | [12] | BOLT(3/8-16X1.125-IN) | |
| 16. | 5P-1075BC | [34] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 17. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 18. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 19. | 8T-8917 | [8] | BOLT(1/2-13X1.25-IN) | |
| 20. | 8T-9383 | [4] | BOLT(1/2-13X0.75-IN) | |
| 21. | 9B-7237 | [8] | BOLT(3/8-16X1.25-IN) | |
| 22. | 215-3641C | [2] | PLATE | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | J | | PROCURE LOCALLY |
