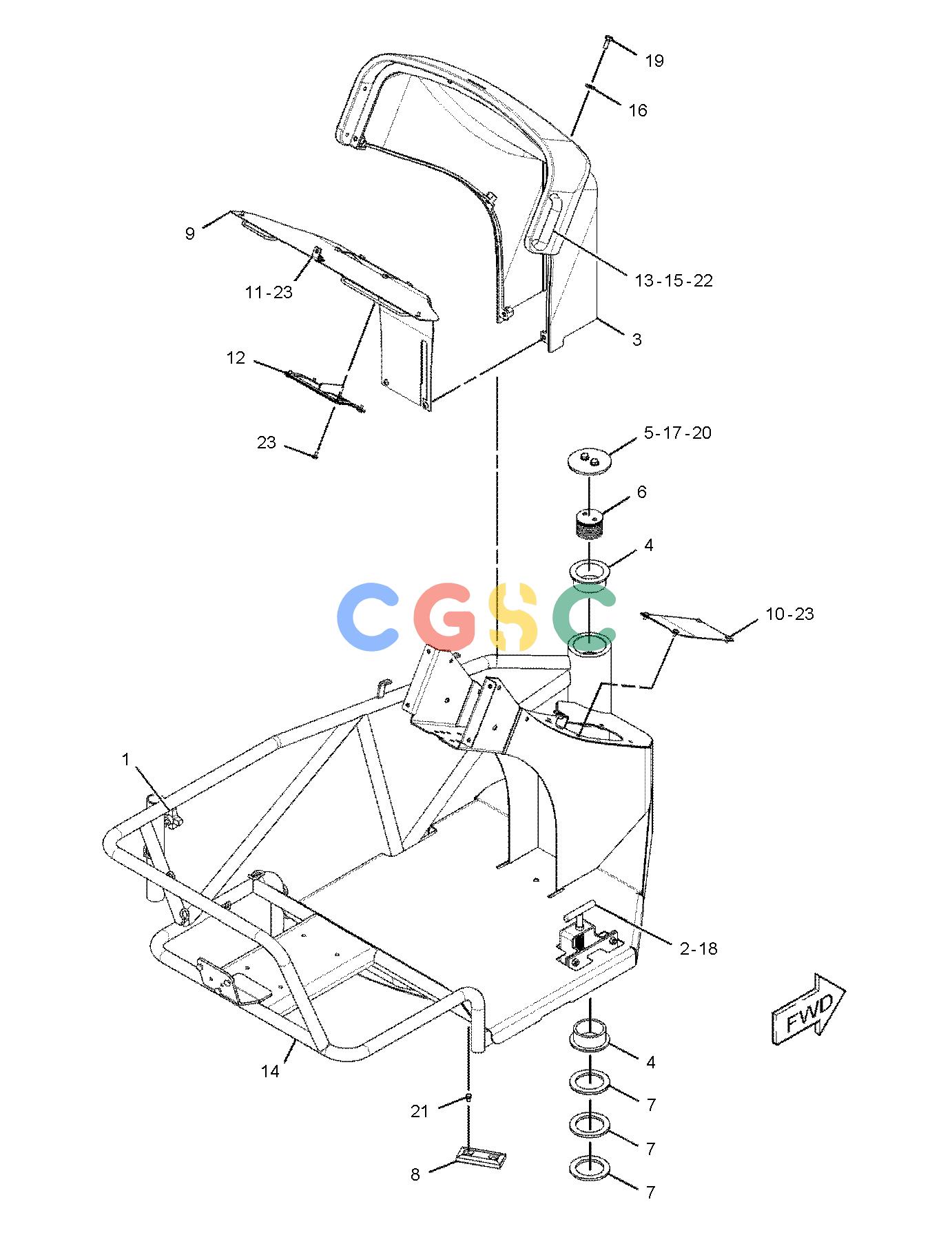

卡特零件查询（AP-1055D） 231-7157: PLATFORM GP-OPERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
626 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-7943 | [1] | KNOB-CLAMP | |
| 2. | 101-9559Y | [1] | LOCK GP-ROTATION | |
| 3. | 194-3645 | [1] | COVER AS-CONSOLE(OPERATOR) | |
| 4. | 196-6791 | [2] | BEARING-FLANGE | |
| 5. | 196-6792 | [1] | PLATE-COVER | |
| 6. | 196-6793B | [23] | SHIM(1-MM THK) | |
| 7. | 196-6794 | [3] | PLATE-SPACER | |
| 8. | 196-6798 | [2] | PAD | |
| 9. | 196-6855 | [1] | COVER AS-CONSOLE | |
| 10. | 202-0515 | [1] | COVER | |
| 11. | 205-8754 | [1] | PLATE AS | |
| 12. | 211-0219 | [1] | COVER AS | |
| 13. | 217-0453 | [1] | HANDLE | |
| 14. | 263-1410 | [1] | PLATFORM AS(LH) | |
| 15. | 166-1222M | [2] | SCREW-BUTTON HEAD(M8X1.25X30-MM) | |
| 16. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 17. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 19. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 20. | 180-4686M | [2] | BOLT(M10X1.5X60-MM) | |
| 21. | 8T-4199M | [4] | BOLT(M8X1.25X12-MM) | |
| 22. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 23. | 9X-2042M | [15] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
