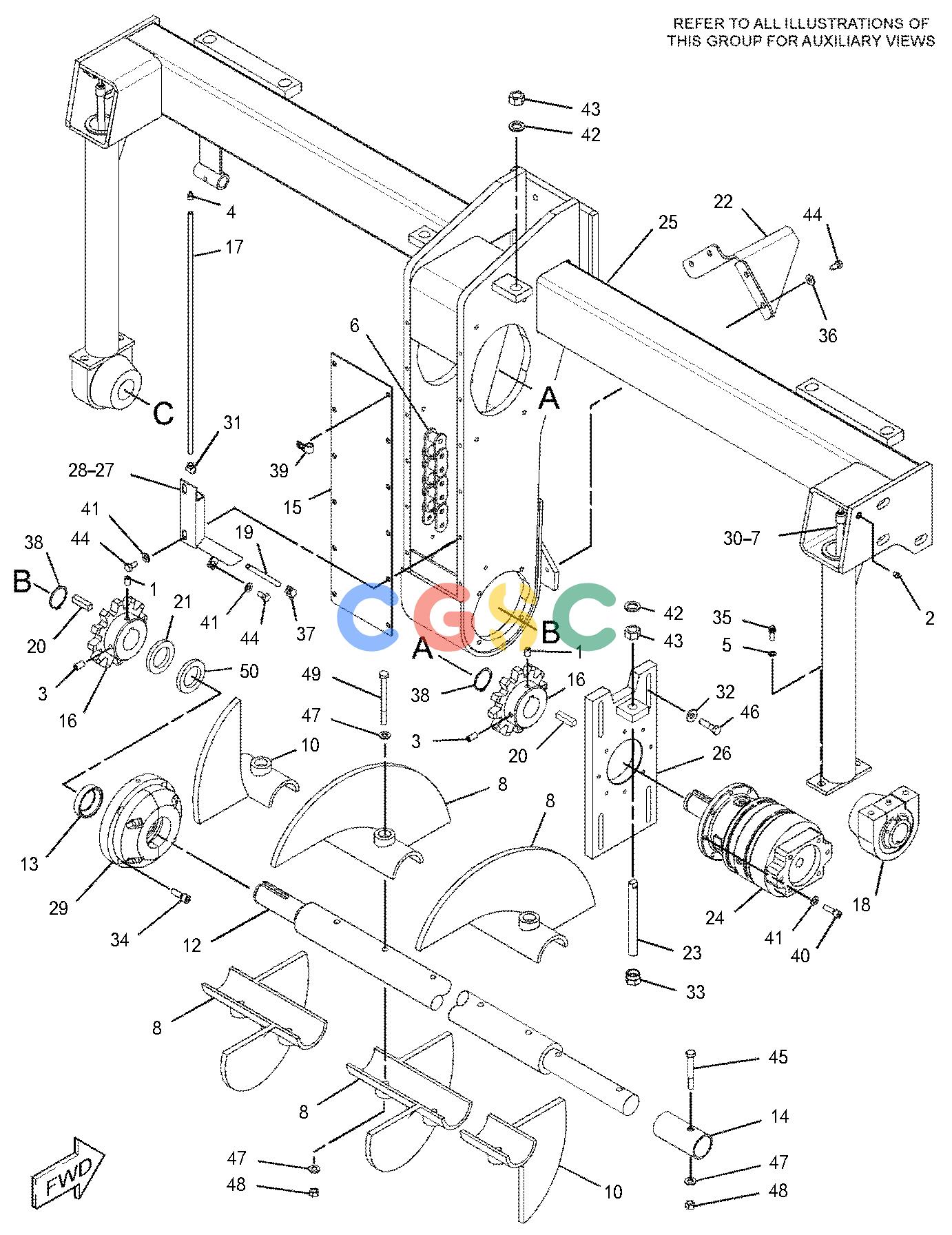

卡特零件查询（AP-1055D） 230-5481: CONVEYOR GP-AUGER
广数供应链运营团队, 16 02月, 2025，浏览：
168 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2H-3906 | [4] | SETSCREW-SOCKET(1/2-13X1-IN) | |
| 2. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 4B-1771 | [4] | SETSCREW(1/2-13X0.75-IN) | |
| 4. | 5P-9982 | [2] | FITTING-GREASE | |
| 5. | 7X-0588 | [4] | WASHER-HARD(17X27X3.5-MM THK) | |
| 6. | 8I-0991 | [2] | CHAIN AS-CONVEYOR | |
| | | | (EACH INCLUDES) |
| | 5B-6388 | [1] | LINK-CONNECTING | |
| 7. | 6R-9057 | [2] | HOSE AS | |
| 8. | 344-1964 | [5] | SEGMENT-HALF AUGER(RH) | |
| 9. | 344-1965 | [5] | SEGMENT-HALF AUGER(LH) | |
| 10. | 344-1966 | [3] | SEGMENT-QUARTER AUGER(LH INNER/RH OUTER) | |
| 11. | 344-1967 | [1] | SEGMENT-QUARTER AUGER(LH OUTER/RH INNER) | |
| 12. | 310-5565 | [2] | SHAFT-AUGER | |
| 13. | 103-3585 | [2] | PLATE | |
| 14. | 103-3591 | [2] | PIPE | |
| 15. | 103-3596 | [1] | PLATE | |
| 16. | 103-3599 | [4] | SPROCKET AS(12-TEETH) | |
| 17. | 105-7204 | [2] | NIPPLE-PIPE | |
| 18. | 106-9718Y | [2] | BEARING GP-AUGER | |
| 19. | 112-9271 | [2] | NIPPLE-PIPE | |
| 20. | 136-9390 | [4] | KEY(SPROCKET) | |
| 21. | 9D-3523 | [2] | WASHER(2.062X4X0.188-IN) | |
| 22. | 167-8109 | [1] | DEFLECTOR | |
| 23. | 190-6176 | [2] | ROD | |
| 24. | 341-9466Y | [2] | PLANETARY GP-AUGER(CONVEYOR) | |
| 25. | 230-5475 | [1] | SUPPORT AS | |
| 26. | 191-4425 | [2] | PLATE AS | |
| 27. | 199-5823 | [1] | GUARD AS(LH) | |
| 28. | 199-6353 | [1] | GUARD AS(RH) | |
| 29. | 201-5584Y | [2] | BEARING GP-AUGER | |
| 30. | 148-8320 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 8C-6865 | [1] | CONNECTOR | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 31. | 3B-6493 | [2] | ELBOW | |
| 32. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 33. | 6V-7688M | [2] | LOCKNUT(M20X2.5-THD) | |
| 34. | 6V-8200M | [8] | BOLT-SOCKET HEAD(M12X1.75X35-MM) | |
| 35. | 7J-8902 | [4] | BOLT-12 POINT HEAD(5/8-11X1.5-IN) | |
| 36. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 37. | 8L-5008 | [2] | ELBOW-PIPE | |
| 38. | 8L-9811 | [4] | RING-RETAINING | |
| 39. | 8M-2770 | [2] | CLIP(LOOP) | |
| 40. | 108-7808M | [16] | BOLT(M10X1.5X35-MM) | |
| 41. | 8T-4121 | [30] | WASHER-HARD(11X21X2.5-MM THK) | |
| 42. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 43. | 8T-4131M | [4] | NUT(M20X2.5-THD) | |
| 44. | 8T-4137M | [18] | BOLT(M10X1.5X20-MM) | |
| 45. | 8T-4176M | [2] | BOLT(M12X1.75X90-MM) | |
| 46. | 8T-4184M | [8] | BOLT(M12X1.75X45-MM) | |
| 47. | 8T-4223 | [26] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 48. | 6V-7687M | [14] | LOCKNUT(M12X1.75-THD) | |
| 49. | 310-6460 | [12] | BOLT(M12X1.75X130-MM) | |
| 50. | 7X-0542 | [2] | WASHER-HARD(51X74X3-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
