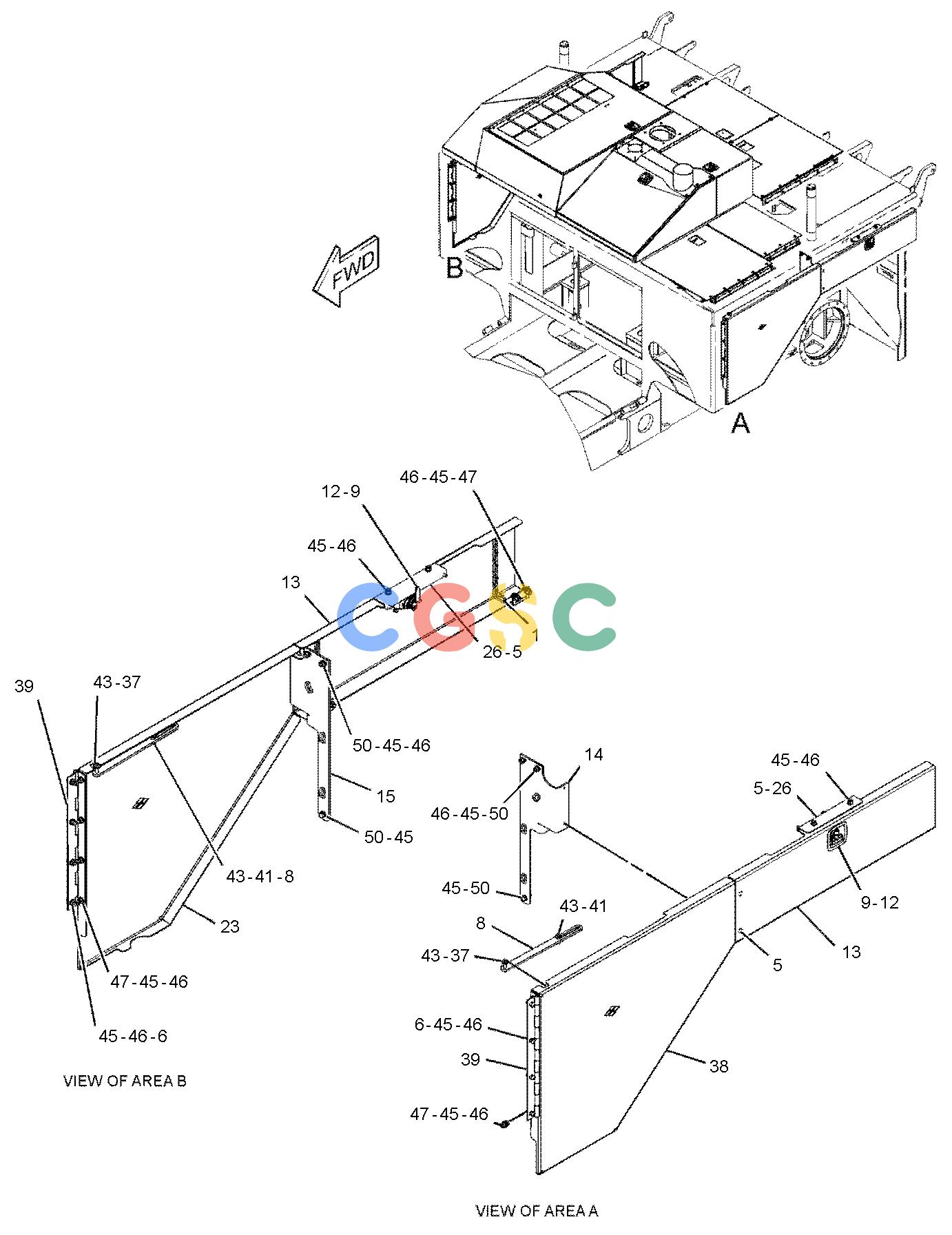

卡特零件查询（AP-1055D） 233-1743: COVER GP-ENGINE & PLATFORM
广数供应链运营团队, 16 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6R-1941 | [4] | CONNECTOR | |
| 2. | 7R-3336 | [5] | PIN | |
| 3. | 7R-9612 | [1] | ROD | |
| 4. | 108-7756 | [1] | ROD | |
| 5. | 111-1777 | [12] | BUMPER-RUBBER | |
| 6. | 141-9203M | [24] | SCREW-BUTTON HEAD(M10X1.5X30-MM) | |
| 7. | 142-5057B | [3] | SHIM(2-MM THK) | |
| 8. | 152-1061 | [2] | BAR | |
| 9. | 177-1570 | [5] | LATCH AS | |
| | | | (EACH INCLUDES) |
| | 217-0733J | [1] | LOCK AS | |
| 10. | 193-9297 | [3] | PLATE(BENT) | |
| 11. | 198-5159 | [5] | PLATE | |
| 12. | 222-5151 | [5] | PAWL | |
| 13. | 239-3146 | [2] | COVER AS | |
| 14. | 239-3148 | [1] | PLATE AS | |
| 15. | 239-3149 | [1] | PLATE AS | |
| 16. | 239-3150 | [1] | COVER AS | |
| 17. | 239-3152 | [1] | HINGE | |
| 18. | 239-3153 | [1] | COVER AS | |
| 19. | 239-3155 | [1] | HINGE | |
| 20. | 239-3156 | [1] | HINGE | |
| 21. | 239-3159 | [1] | COVER AS | |
| 22. | 239-3160 | [1] | COVER AS | |
| 23. | 239-3166 | [1] | PANEL AS(RH)(RH) | |
| 24. | 239-3168 | [1] | PLATE AS | |
| 25. | 239-3169 | [1] | PLATE | |
| 26. | 239-3171 | [2] | RAIL AS | |
| 27. | 239-3175 | [1] | PLATE | |
| 28. | 241-0051 | [1] | DOOR AS | |
| 29. | 241-0054 | [1] | MOUNT AS | |
| 30. | 241-0062 | [1] | MOUNT AS | |
| 31. | 241-0066 | [1] | PANEL AS | |
| 32. | 241-0067 | [1] | DOOR AS | |
| 33. | 266-0042 | [1] | COVER AS | |
| 34. | 242-3912 | [1] | HINGE | |
| 35. | 242-3913 | [1] | PLATE | |
| 36. | 249-0986 | [1] | DOOR AS | |
| 37. | 250-7194 | [2] | BOLT-SPECIAL | |
| 38. | 253-5145 | [1] | PANEL AS(LH)(LH) | |
| 39. | 262-6898 | [2] | HINGE | |
| 40. | 3B-4617 | [7] | PIN-COTTER | |
| 41. | 4I-3124M | [2] | BOLT(M8X1.25X32-MM) | |
| 42. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 43. | 5P-4116 | [23] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 44. | 8C-8585M | [25] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 45. | 8T-4121 | [119] | WASHER-HARD(11X21X2.5-MM THK) | |
| 46. | 8T-4133M | [75] | NUT(M10X1.5-THD) | |
| 47. | 8T-4136M | [30] | BOLT(M10X1.5X25-MM) | |
| 48. | 8T-4184M | [1] | BOLT(M12X1.75X45-MM) | |
| 49. | 8T-4189M | [16] | BOLT(M8X1.25X20-MM) | |
| 50. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 51. | 8T-4223 | [7] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 52. | 8T-4224 | [13] | WASHER-HARD(8.8X16X2-MM THK) | |
| 53. | 8T-4244M | [5] | NUT(M12X1.75-THD) | |
| 54. | 8T-4648M | [1] | BOLT(M12X1.75X70-MM) | |
| 55. | 8T-4956M | [3] | BOLT(M12X1.75X35-MM) | |
| 56. | 8T-6912M | [2] | BOLT(M8X1.25X50-MM) | |
| 57. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 58. | 5P-8309BD | | SEAL | |
| 59. | 9D-3737 | [4] | PLUG-BUTTON | |
| 60. | 4S-6336 | [1] | PLUG-BUTTON | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | J | | REQUIRED 5P8500 KEY |
| | M | | METRIC PART |
