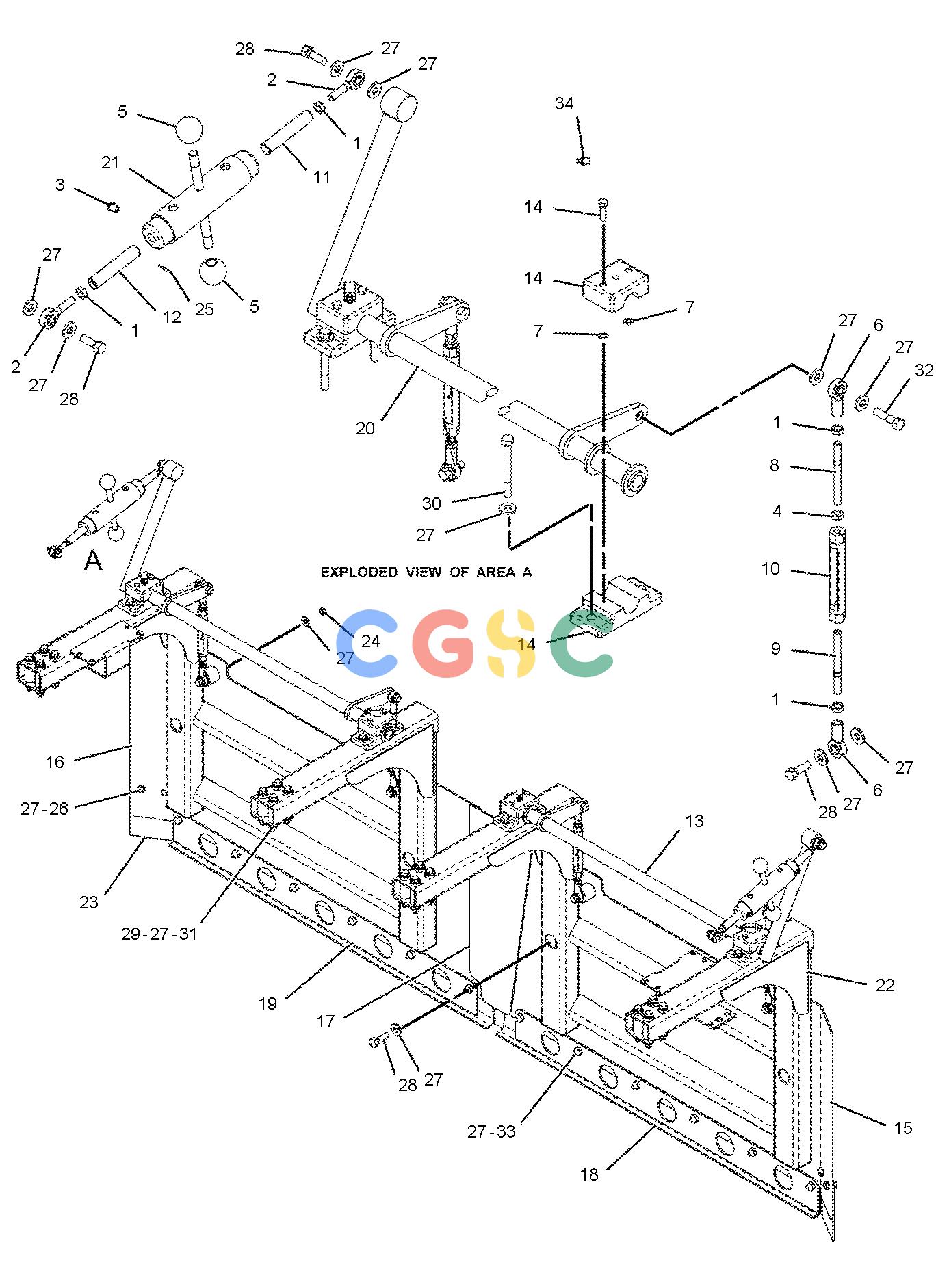

卡特零件查询（AP-1055D） 197-5297: DEFLECTOR GP
广数供应链运营团队, 16 02月, 2025，浏览：
906 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1B-4430 | [12] | NUT-JAM(1/2-20-THD) | |
| 2. | 2J-5038 | [4] | ROD END | |
| 3. | 3B-8490C | [4] | FITTING-GREASE(1/4-18 PTF) | |
| 4. | 3H-3680 | [4] | NUT-JAM(1/2-13-THD) | |
| 5. | 8I-0911 | [4] | KNOB | |
| 6. | 8T-6395 | [8] | ROD END | |
| 7. | 7G-3046B | [16] | SHIM(0.25-MM THK) | |
| 8. | 162-7924 | [4] | ROD-THREADED | |
| 9. | 162-7925 | [4] | ROD-THREADED | |
| 10. | 162-7926 | [4] | TURNBUCKLE | |
| 11. | 162-7929 | [2] | ROD-THREADED | |
| 12. | 162-7930 | [2] | ROD-THREADED | |
| 13. | 162-7991 | [1] | ROD AS | |
| | 8T-5911 | [2] | NUT-WELD(1/2-13-THD) | |
| | 179-5764 | [2] | WASHER(39X60X6-MM THK) | |
| 14. | 162-7993 | [4] | BEARING AS | |
| 15. | 165-4714 | [1] | PLATE AS | |
| | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| 16. | 230-7532 | [1] | FRAME AS(LH) | |
| | 7T-1099 | [2] | LINK | |
| | 8T-5911 | [4] | NUT-WELD(1/2-13-THD) | |
| | 8T-5912 | [4] | NUT-WELD(3/8-16-THD) | |
| | 9F-6445 | [3] | NUT-WELD(1/4-20-THD) | |
| | 2R-6470 | [8] | BOSS | |
| 17. | 165-4716 | [1] | PLATE AS | |
| | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| 18. | 165-4729 | [1] | SHOE AS(RH) | |
| 19. | 165-4734 | [1] | SHOE AS(LH) | |
| | | | (EACH SHOE AS INCLUDES) |
| | 8T-5911 | [6] | NUT-WELD(1/2-13-THD) | |
| 20. | 165-4749 | [1] | ROD AS | |
| | 8T-5911 | [2] | NUT-WELD(1/2-13-THD) | |
| | 179-5764 | [2] | WASHER(39X60X6-MM THK) | |
| 21. | 185-5390 | [2] | ADJUSTER AS | |
| 22. | 230-7531 | [1] | FRAME AS(RH) | |
| | 7T-1099 | [2] | LINK | |
| | 8T-5911 | [4] | NUT-WELD(1/2-13-THD) | |
| | 8T-5912 | [4] | NUT-WELD(3/8-16-THD) | |
| | 9F-6445 | [3] | NUT-WELD(1/4-20-THD) | |
| | 2R-6470 | [8] | BOSS | |
| 23. | 196-2543 | [2] | PLATE | |
| 24. | 1K-6872 | [4] | LOCKNUT(1/2-13-THD) | |
| 25. | 2K-8467 | [4] | PIN-SPRING | |
| 26. | 5C-6565 | [4] | BOLT(1/2-13X1.125-IN) | |
| 27. | 5P-1076 | [88] | WASHER-HARD(13.5X30X4-MM THK) | |
| 28. | 5P-2566 | [12] | BOLT(1/2-13X1.5-IN) | |
| 29. | 6V-8188 | [16] | NUT(1/2-13-THD) | |
| 30. | 7X-0332 | [8] | BOLT(1/2-13X4.5-IN) | |
| 31. | 7X-0333 | [16] | BOLT(1/2-13X4.75-IN) | |
| 32. | 8T-4835 | [4] | BOLT(1/2-13X2-IN) | |
| 33. | 8T-8919 | [12] | BOLT(1/2-13X1.75-IN) | |
| 34. | 3B-8487C | [4] | FITTING-GREASE | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
