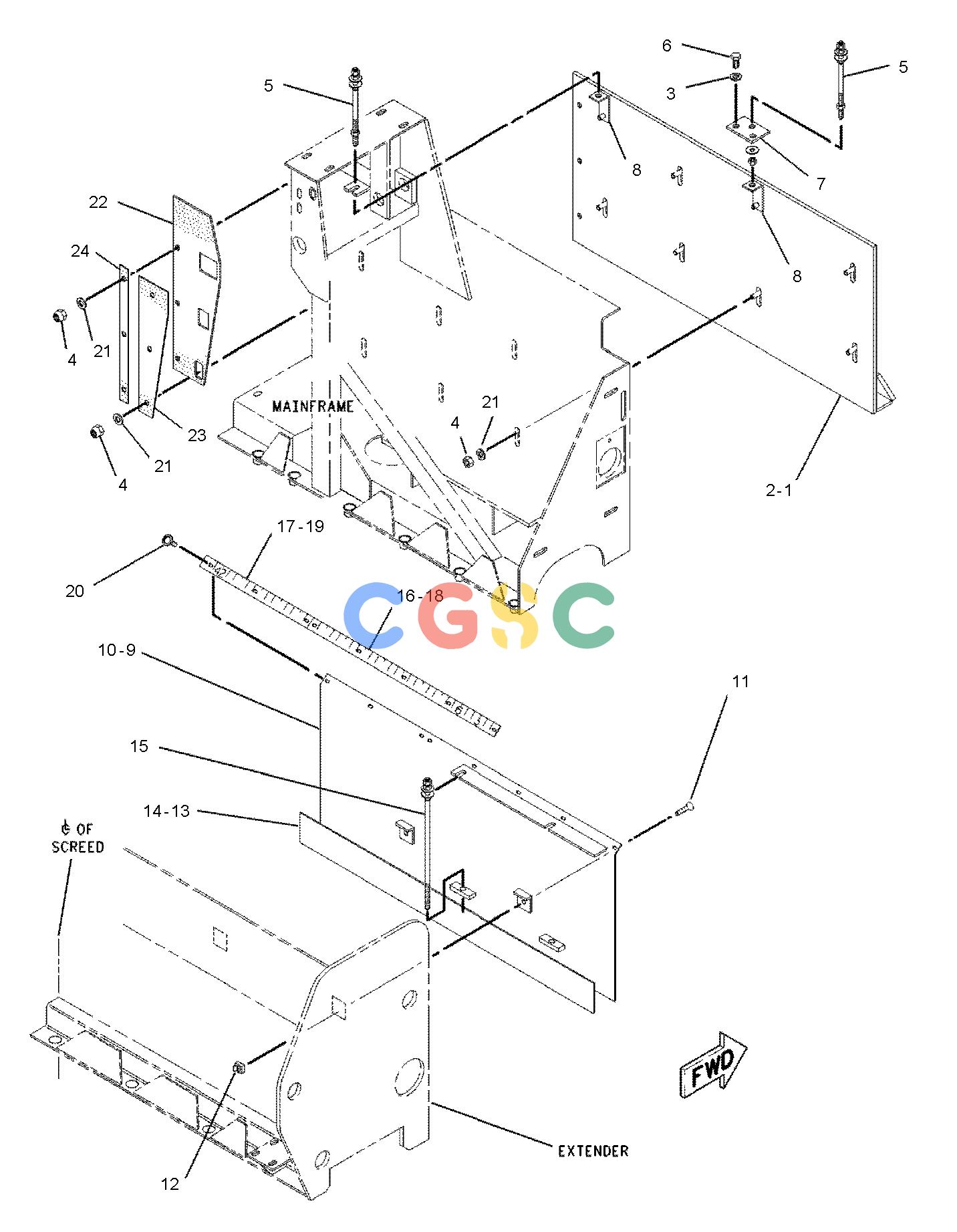

卡特零件查询（AP-1055D） 8I-0292: DEFLECTOR GP
广数供应链运营团队, 16 02月, 2025，浏览：
784 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 163-3360C | [1] | PLATE AS(RH) | |
| | 8C-3678 | [13] | STUD-WELD(1/2-13X1.125-IN) | |
| 2. | 163-3359C | [1] | PLATE AS(LH) | |
| | 8C-3678 | [13] | STUD-WELD(1/2-13X1.125-IN) | |
| 3. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 4. | 1K-6872C | [26] | LOCKNUT(1/2-13-THD) | |
| 5. | 8I-0295 | [4] | ROD AS-ADJUSTING | |
| | | | (EACH INCLUDES) |
| | 4B-5273 | [2] | WASHER(14.3X35X2.5-MM THK) | |
| | 6V-8180 | [3] | LOCKNUT-BEARING | |
| 6. | 5P-2228 | [4] | BOLT(1/2-13X1-IN) | |
| 7. | 8I-0332 | [2] | PLATE-MOUNTING | |
| 8. | 8I-0305 | [4] | BRACKET AS-ADJUSTMENT | |
| | | | (EACH INCLUDES) |
| | 8T-5911 | [1] | NUT-WELD(1/2-13-THD) | |
| 9. | 8I-0296 | [1] | PLATE AS(RH) | |
| 10. | 8I-0297 | [1] | PLATE AS(LH) | |
| 11. | 107-2784 | [8] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 12. | 104-2231 | [8] | NUT-SPRING | |
| 13. | 8I-0300 | [1] | PLATE AS(RH) | |
| 14. | 8I-0986 | [1] | PLATE AS(LH) | |
| 15. | 8I-0302 | [4] | ROD AS-ADJUSTING | |
| | | | (EACH INCLUDES) |
| | 4B-5273 | [4] | WASHER(14.3X35X2.5-MM THK) | |
| | 6V-8188 | [3] | NUT(1/2-13-THD) | |
| 16. | 8I-0323 | [1] | SCALE(29-IN) | |
| 17. | 8I-0324 | [1] | SCALE(29 TO 58 INCH) | |
| 18. | 8I-0325 | [1] | SCALE(29-IN) | |
| 19. | 8I-0326 | [1] | SCALE(29 TO 58 INCH) | |
| 20. | 9S-2544 | [20] | SCREW-HEX HEAD(8-32X11.13-MM) | |
| 21. | 5P-1076C | [22] | WASHER-HARD(13.5X30X4-MM THK) | |
| 22. | 165-3558C | [1] | PLATE | |
| 23. | 165-3559C | [1] | PLATE | |
| 24. | 165-3560C | [1] | PLATE | |
| | C | | CHANGE FROM PREVIOUS TYPE |
