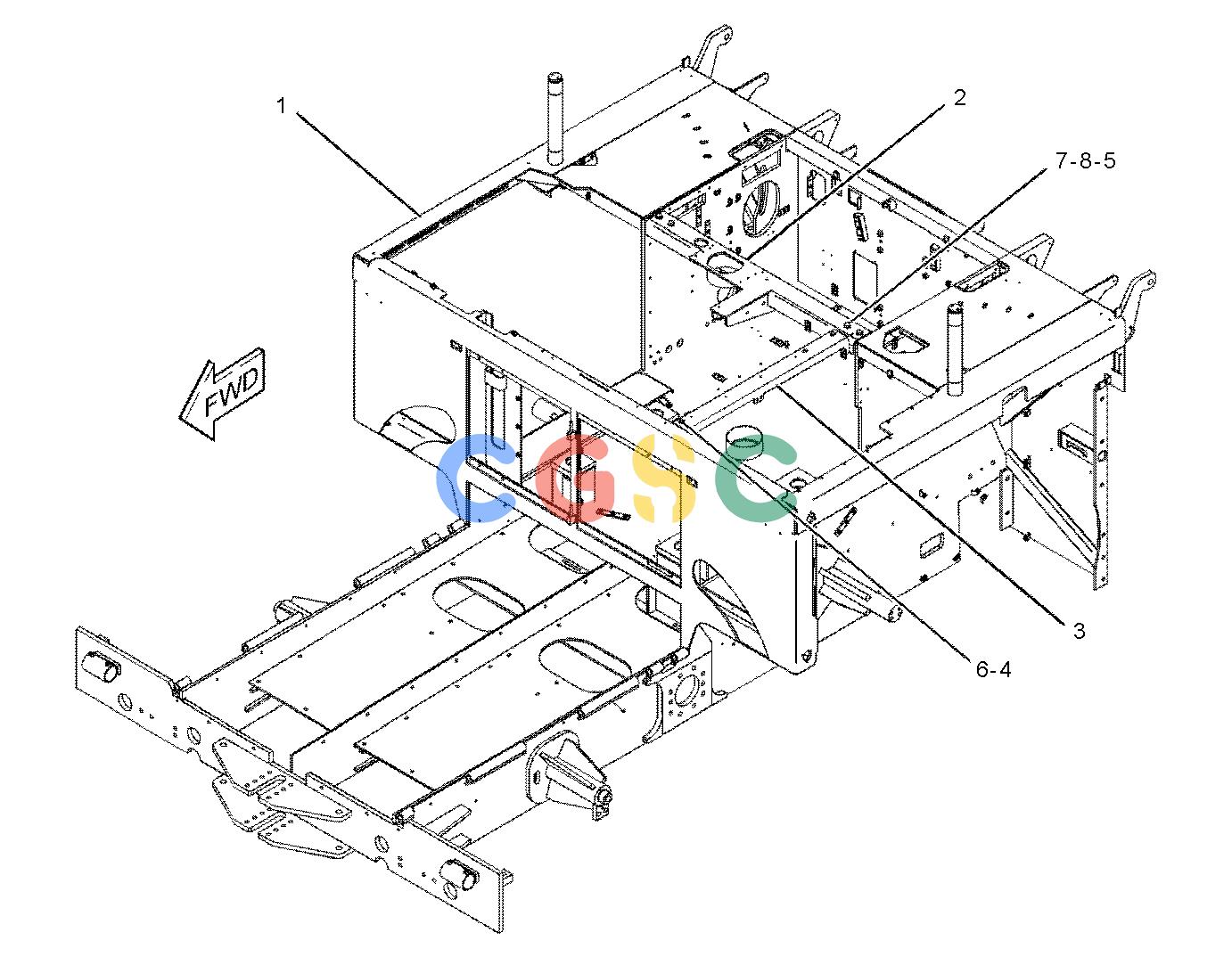

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 222-2612 | [1] | FRAME AS | |
| 2. | 228-5868 | [1] | FRAME AS | |
| 3. | 241-9376 | [1] | PLATE AS | |
| 4. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 5. | 8T-4132M | [10] | NUT(M16X2-THD) | |
| 6. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 7. | 8T-7338M | [10] | BOLT(M16X2X45-MM) | |
| 8. | 9X-8257 | [20] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
