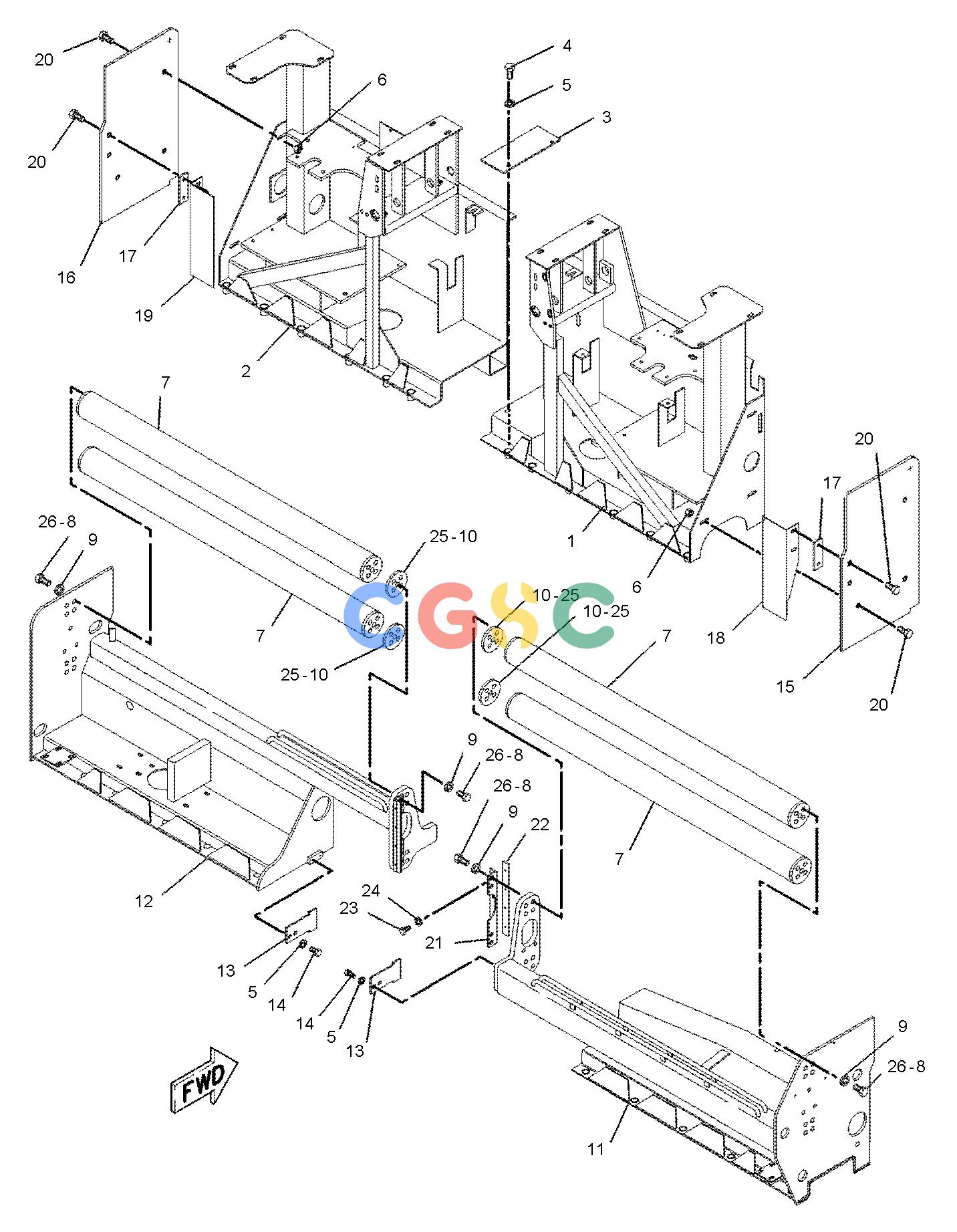

卡特零件查询（AP-1055D） 120-5905: FRAME GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
180 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0006 | [1] | FRAME AS(RH) | |
| 2. | 120-5907 | [1] | FRAME AS(LH) | |
| 3. | 8I-0082 | [1] | COVER-CENTER | |
| 4. | 8T-8917 | [2] | BOLT(1/2-13X1.25-IN) | |
| 5. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 104-2231 | [6] | NUT-SPRING | |
| 7. | 8I-0137 | [4] | TUBE AS | |
| 8. | 8T-8924B | [16] | BOLT(3/4-10X2.5-IN) | |
| 9. | 8T-4994 | [32] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 10. | 8I-0139B | [4] | SHIM(0.125-MM THK) | |
| 11. | 8I-0010 | [1] | FRAME AS(RH) | |
| 12. | 8I-0011 | [1] | FRAME AS(LH) | |
| 13. | 8I-0065 | [2] | COVER-END | |
| 14. | 8T-9384 | [4] | BOLT(1/2-13X0.875-IN) | |
| 15. | 8I-0109 | [1] | COVER(RH) | |
| 16. | 8I-0108 | [1] | COVER(LH) | |
| 17. | 110-1250 | [2] | CLAMP AS | |
| | | | (EACH INCLUDES) |
| | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| | 8I-0116 | [1] | SPACER | |
| 18. | 8I-0122 | [1] | COVER(RH) | |
| 19. | 8I-0121 | [1] | COVER(LH) | |
| 20. | 107-2783 | [10] | SCREW-FLAT HEAD(1/2-13X1-IN) | |
| 21. | 122-6081 | [2] | ANGLE | |
| 22. | 122-6080 | [2] | BAR | |
| 23. | 5P-7750 | [8] | BOLT-BRONZE(3/8-16X0.75-IN) | |
| 24. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 25. | 138-7861B | [4] | SHIM(0.062-MM THK) | |
| 26. | 7X-0366B | [16] | BOLT(3/4-10X2-IN) | |
| | B | | USE AS REQUIRED |
