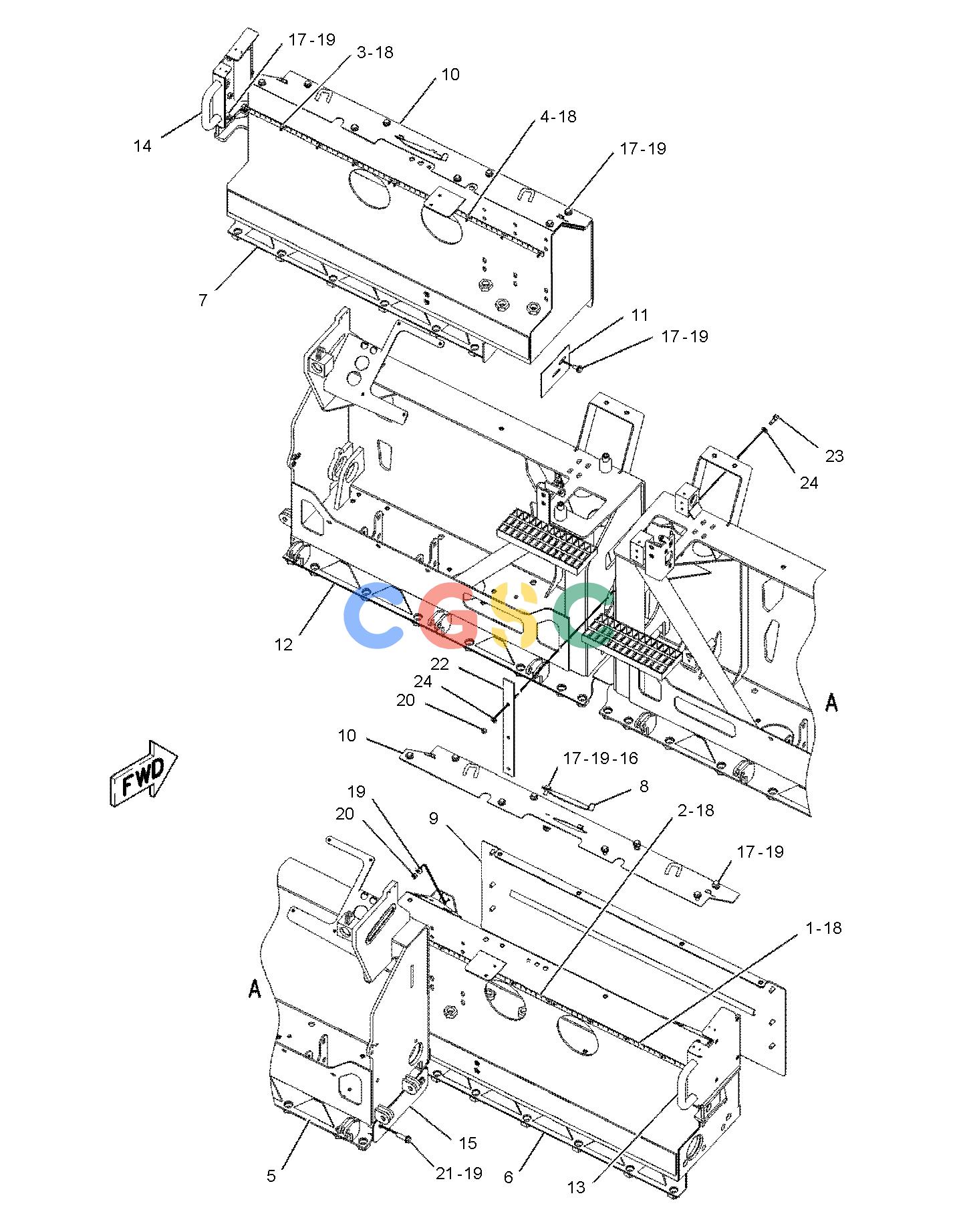

卡特零件查询（AP-1055D） 197-5287: FRAME GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
435 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0323 | [1] | SCALE(29-IN) | |
| 2. | 8I-0324 | [1] | SCALE(29 TO 58 INCH) | |
| 3. | 8I-0325 | [1] | SCALE(29-IN) | |
| 4. | 8I-0326 | [1] | SCALE(29 TO 58 INCH) | |
| 5. | 217-9324C | [1] | FRAME AS-MAIN | |
| | 215-1860 | [1] | PLATE | |
| 6. | 230-7535 | [1] | FRAME AS(EXTENDER-RH) | |
| 7. | 230-7536 | [1] | FRAME AS(EXTENDER-LH) | |
| 8. | 162-7962 | [2] | COVER-INSPECTION | |
| 9. | 165-4724 | [2] | COVER AS(FRONT) | |
| | | | (EACH INCLUDES) |
| | 107-2784 | [6] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| | 8T-5911 | [4] | NUT-WELD(1/2-13-THD) | |
| 10. | 165-4736 | [2] | COVER AS(EXTENSION-LH) | |
| | | | (EACH INCLUDES) |
| | 5J-3463 | [1] | BAR | |
| | 102-2868 | [2] | GRIP-HANDLE | |
| 11. | 165-4745 | [2] | PLATE | |
| 12. | 217-9323C | [1] | FRAME AS-MAIN | |
| 13. | 185-5421 | [1] | SUPPORT AS(RH) | |
| 14. | 185-5422 | [1] | SUPPORT AS(LH) | |
| | | | (EACH SUPPORT AS INCLUDES) |
| | 8T-5911 | [6] | NUT-WELD(1/2-13-THD) | |
| | 7T-1099 | [1] | LINK | |
| 15. | 196-2512 | [2] | PLATE | |
| 16. | 1K-6872 | [2] | LOCKNUT(1/2-13-THD) | |
| 17. | 5C-6565 | [34] | BOLT(1/2-13X1.125-IN) | |
| 18. | 9S-2544 | [20] | SCREW-HEX HEAD(8-32X11.13-MM) | |
| 19. | 5P-1076 | [52] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 6V-8188C | [15] | NUT(1/2-13-THD) | |
| 21. | 5P-2228 | [4] | BOLT(1/2-13X1-IN) | |
| 22. | 215-1859C | [1] | PLATE | |
| 23. | 8C-4436C | [3] | BOLT(1/2-13X1.375-IN) | |
| 24. | 8T-4223C | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
