卡特零件查询（AP-1055D） 230-5042: HOPPER GP
广数供应链运营团队, 16 02月, 2025，浏览：
692 次

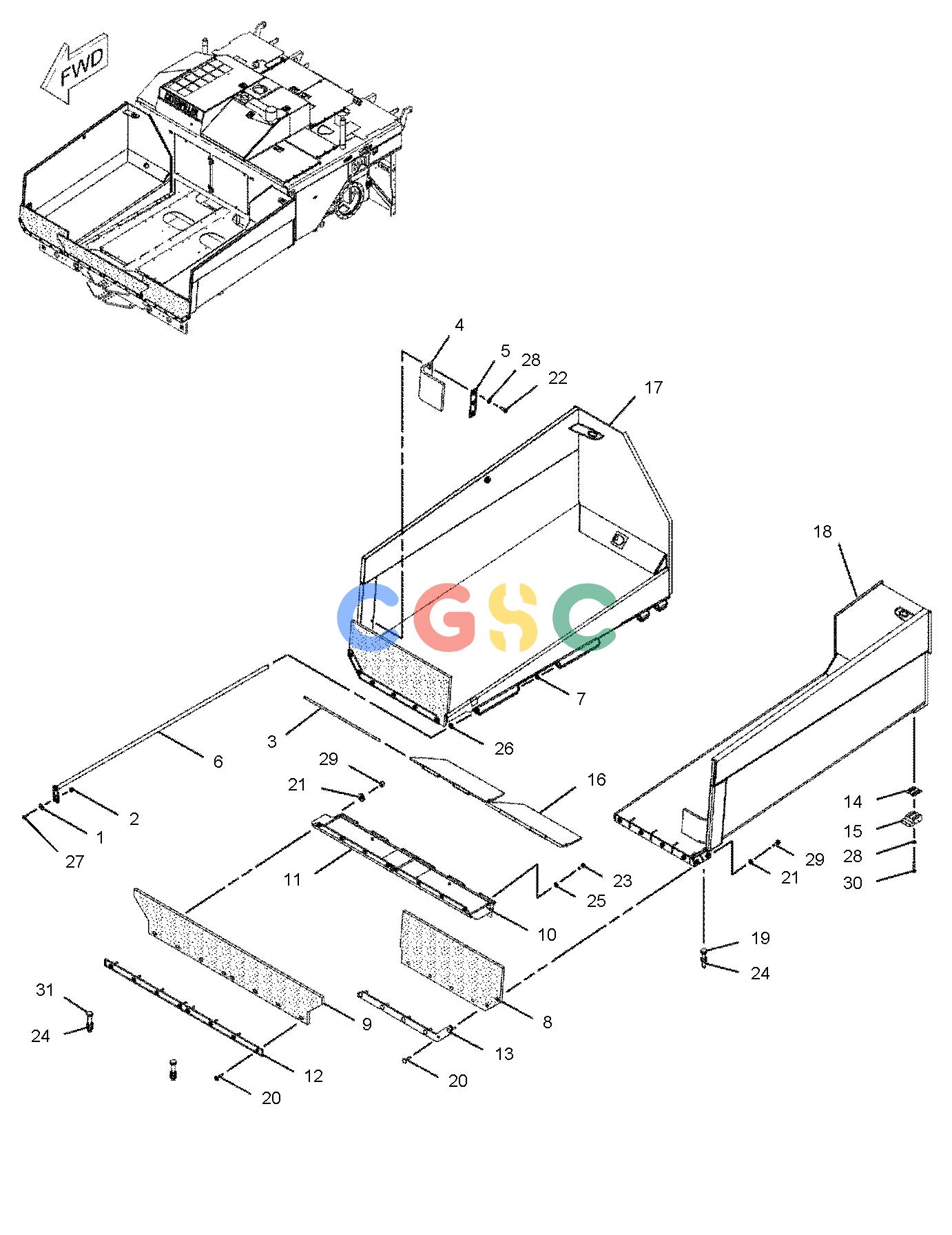

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7W-9738 | [2] | WASHER(10.5X38X1.6-MM THK) | |
| 2. | 106-1242 | [2] | SPACER(13.8X23.75X12.7-MM THK) | |
| 3. | 109-0523 | [2] | ROUND | |
| 4. | 129-6335 | [2] | FLASHING | |
| 5. | 129-6336 | [2] | BAR | |
| 6. | 166-8785 | [2] | PIN AS | |
| 7. | 185-4025B | [2] | SHIM(1.2-MM THK) | |
| 8. | 212-2753 | [2] | FLASHING | |
| 9. | 212-2755 | [1] | FLASHING | |
| 10. | 266-7636 | [1] | SUPPORT AS | |
| 11. | 266-7637 | [1] | SUPPORT AS | |
| 12. | 236-5255 | [1] | STRAP | |
| 13. | 236-5256 | [2] | STRAP | |
| 14. | 236-5455B | [2] | SHIM(3-MM THK) | |
| 15. | 236-5456 | [2] | BLOCK | |
| 16. | 247-6467 | [2] | APRON AS | |
| 17. | 255-2351 | [1] | HOPPER AS(RH) | |
| 18. | 255-2352 | [1] | HOPPER AS(LH) | |
| 19. | 152-0191M | [2] | BOLT(M24X3X120-MM) | |
| 20. | M | [20] | BOLT-CARRIAGE(M12X1.75X60-MM) |
| 21. | 5P-1076 | [20] | WASHER-HARD(13.5X30X4-MM THK) | |
| 22. | 5P-2566 | [6] | BOLT(1/2-13X1.5-IN) | |
| 23. | 7X-2553M | [4] | BOLT(M16X2X40-MM) | |
| 24. | 8T-4001M | [6] | NUT(M24X3-THD) | |
| 25. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 26. | 8T-4167B | [8] | WASHER-HARD(26X44X4-MM THK) | |
| 27. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 28. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 29. | 8T-4244M | [20] | NUT(M12X1.75-THD) | |
| 30. | 8T-4648M | [8] | BOLT(M12X1.75X70-MM) | |
| 31. | 8T-6380M | [2] | BOLT(M24X3X130-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
